Butler, New Jersey offers moderate solar energy potential for year-round electricity generation through solar photovoltaic systems. Located in the Northern Temperate Zone, this area experiences significant seasonal variation in solar production that homeowners and businesses should understand when considering solar installation.

Seasonal Solar Performance

The solar energy output at Butler varies considerably throughout the year. Summer provides the strongest performance at 5.78 kWh per day for each kilowatt of installed solar capacity. Spring follows closely behind with 5.18 kWh per day per kilowatt, making these two seasons the prime solar generation periods. Autumn sees a notable decline to 3.23 kWh per day per kilowatt, while winter presents the most challenging conditions with only 1.90 kWh per day per kilowatt. This dramatic seasonal swing means solar systems will produce roughly three times more electricity in summer compared to winter months.

Optimal Panel Installation

For fixed solar panel installations in Butler, the ideal tilt angle is 35 degrees facing south to maximize total year-round production. This angle has been calculated to capture the most solar energy across all seasons by accounting for the sun's changing position throughout the year and weighting for the varying solar irradiance levels.

Local Factors Affecting Solar Production

Several environmental and weather factors in Butler, New Jersey can impact solar energy generation:

• Snow accumulation during winter months can block solar panels and reduce output
• Frequent cloud cover and precipitation common to the northeastern climate
• Deciduous trees that may create seasonal shading patterns
• Ice formation that can temporarily cover panels

Preventative Measures for Better Performance

To maximize solar production despite these challenges, several installation strategies can help: Installing panels at the recommended 35-degree tilt naturally helps snow slide off more easily than flatter installations. Ensuring adequate clearance around solar arrays prevents shading from nearby trees, especially during winter when the sun sits lower in the sky. Regular maintenance becomes particularly important in this climate. Clearing snow and ice from panels when safe to do so can restore full production capacity. Some homeowners invest in heating elements or specialized coatings that help prevent ice buildup. Proper system sizing should account for the winter production drop-off. Many installations in this region are sized larger than average daily needs to compensate for the reduced winter output while taking advantage of the strong summer and spring generation periods.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

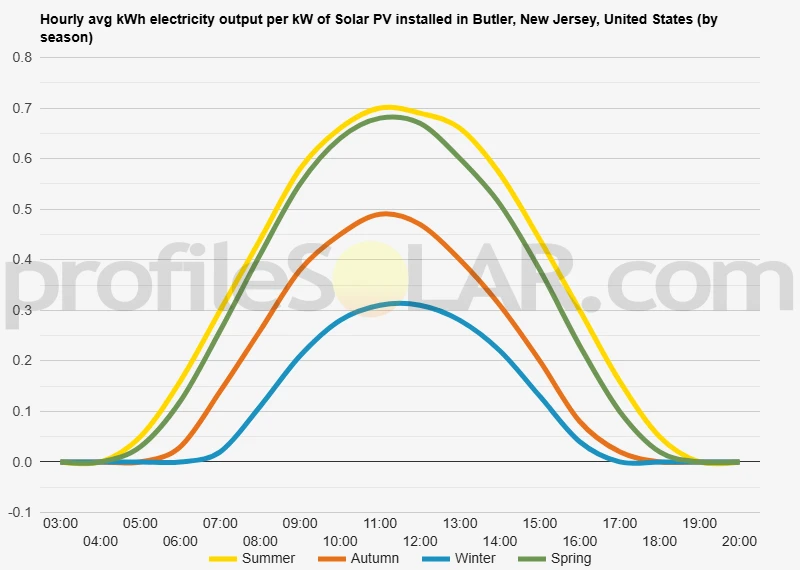

Solar output per kW of installed solar PV by season in Butler, New Jersey

Seasonal solar PV output for Latitude: 41.0139, Longitude: -74.3353 (Butler, New Jersey, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 35° South in Butler, New Jersey, United States

To maximize your solar PV system's energy output in Butler, New Jersey, United States (Lat/Long 41.0139, -74.3353) throughout the year, you should tilt your panels at an angle of 35° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Butler, New Jersey, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Butler, New Jersey, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 35° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
25° South in Summer	45° South in Autumn	56° South in Winter	34° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Butler, New Jersey, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Butler, New Jersey, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Butler, New Jersey, United States

Topographical Features Around Butler, New Jersey

Butler sits in the northern part of New Jersey within Morris County, nestled in the foothills of the New York-New Jersey Highlands. The area is characterized by rolling hills and moderate elevation changes typical of the Appalachian piedmont region. The terrain consists primarily of gentle slopes and valleys, with elevations ranging from approximately 200 to 800 feet above sea level throughout the immediate vicinity. The landscape around Butler features a mix of forested ridgelines and cleared areas that have been developed for residential and commercial use. Small streams and tributaries flow through the valleys, creating natural drainage patterns that have shaped the local topography over thousands of years. The underlying geology consists mainly of ancient metamorphic rocks, including gneiss and schist formations that create stable foundation conditions.

Terrain Characteristics and Land Use

Moving outward from Butler's center, the topography becomes more varied. To the west and northwest, the terrain rises into more pronounced hills that are part of the broader Highlands region. These areas tend to be more heavily forested and less developed. The eastern and southeastern directions generally feature gentler slopes and more open terrain that transitions toward the more densely populated areas of northern New Jersey. The region experiences typical northeastern weather patterns, with deciduous and mixed forests covering much of the undeveloped land. Agricultural areas, though less common than in other parts of New Jersey, can be found in some of the flatter valley areas where the soil conditions and drainage are favorable for farming.

Optimal Areas for Large-Scale Solar Development

For large-scale solar photovoltaic installations, the most suitable areas around Butler would be the relatively flat to gently sloping lands found primarily to the south and southeast of the town. These areas offer several advantages including minimal grading requirements, reduced installation costs, and better accessibility for construction and maintenance equipment. The flatter valley areas and cleared agricultural land would be particularly well-suited for solar development. These locations typically have fewer trees and obstacles that could create shading issues, and the gentler topography would allow for optimal panel positioning and spacing. Areas with southern-facing slopes of moderate grade could also be excellent candidates, as they would naturally orient solar panels toward the sun's path. Former industrial sites or brownfield locations in the broader region could present additional opportunities for solar development, as these areas often have existing electrical infrastructure and fewer environmental constraints compared to undisturbed natural areas. The relatively stable geological conditions throughout the region would support the foundation requirements for large solar arrays. Areas to avoid would include the steeper forested ridgelines to the west and northwest, where the combination of challenging terrain, extensive tree cover, and potential environmental sensitivities would make large-scale solar development impractical and costly.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]
