Woodbridge, New Jersey offers moderately good conditions for year-round solar energy generation, though like most locations in the Northern Temperate Zone, it experiences significant seasonal variation in solar output.

Seasonal Solar Performance

The solar energy production at this location varies considerably throughout the year. Summer provides the strongest performance at 6.02 kWh per day per kW of installed solar capacity, making it the peak season for solar generation. Spring follows as the second-best season with 5.44 kWh per day per kW, offering nearly as much production as summer months. Autumn sees a notable drop in solar output to 3.48 kWh per day per kW, while winter presents the most challenging conditions with only 2.14 kWh per day per kW. This winter figure represents roughly one-third of the summer production, which is typical for locations at this latitude. The ideal times for solar generation at Woodbridge are clearly the warmer months from late spring through early autumn, with peak production occurring during summer. For optimal year-round performance, solar panels should be installed at a fixed tilt angle of 35 degrees facing south, which maximizes total annual energy production.

Environmental and Weather Factors

Several local factors in the Woodbridge area can potentially impact solar energy production:

• Snow accumulation: Winter snow can cover panels and significantly reduce output during the already low-production winter months
• Coastal weather patterns: Being relatively close to the Atlantic coast, the area experiences periodic storms and extended cloudy periods that can reduce solar generation
• Air quality concerns: The region's proximity to major urban and industrial areas can lead to atmospheric haze and particulate matter that reduces solar irradiance
• Humidity and moisture: High humidity levels common in New Jersey summers can create atmospheric conditions that slightly reduce solar efficiency

Preventative Measures for Better Performance

Several installation strategies can help maximize solar production despite these challenges. Panels should be installed with adequate spacing and ventilation to prevent snow buildup and allow for natural melting and shedding. The 35-degree tilt angle is particularly helpful for snow removal, as it encourages sliding off rather than accumulation. Regular cleaning and maintenance schedules become especially important in this location due to potential dust and pollutant buildup from nearby urban areas. Installing panels with anti-soiling coatings or self-cleaning surfaces can help maintain efficiency between manual cleanings. Proper system design should account for the significant seasonal variation by potentially oversizing the array to compensate for lower winter production, depending on energy needs. Additionally, ensuring panels have good airflow underneath helps maintain efficiency during humid summer months when temperatures can reduce panel performance. Overall, while Woodbridge presents some typical Northeast challenges for solar installation, proper planning and installation techniques can effectively address most concerns and deliver reliable solar energy production throughout the year.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

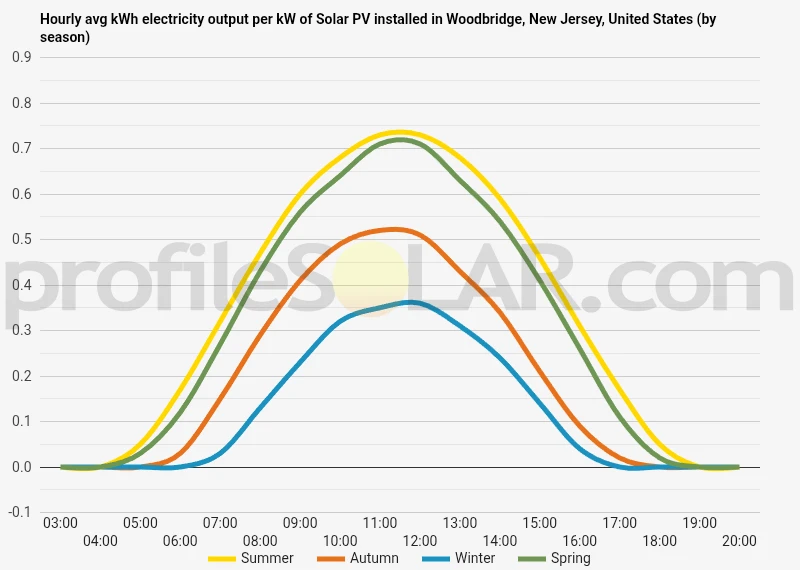

Solar output per kW of installed solar PV by season in Woodbridge, New Jersey

Seasonal solar PV output for Latitude: 40.5555, Longitude: -74.2855 (Woodbridge, New Jersey, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 35° South in Woodbridge, New Jersey, United States

To maximize your solar PV system's energy output in Woodbridge, New Jersey, United States (Lat/Long 40.5555, -74.2855) throughout the year, you should tilt your panels at an angle of 35° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Woodbridge, New Jersey, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Woodbridge, New Jersey, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 35° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
24° South in Summer	45° South in Autumn	56° South in Winter	33° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Woodbridge, New Jersey, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Woodbridge, New Jersey, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Woodbridge, New Jersey, United States

Topographical Features Around Woodbridge

The topography surrounding Woodbridge, New Jersey is characterized by relatively gentle, rolling terrain typical of the Atlantic Coastal Plain region. This area sits at a modest elevation, generally ranging from sea level near the coast to approximately 200 feet above sea level inland. The landscape consists primarily of low hills and shallow valleys, with gradual slopes that rarely exceed steep gradients. The region features a mix of developed suburban areas interspersed with remaining patches of woodland and open spaces. Much of the original forest cover has been cleared over centuries of development, leaving behind a patchwork of residential neighborhoods, commercial zones, and scattered green spaces. The underlying geology consists mainly of unconsolidated sediments including sand, clay, and gravel deposits laid down over millions of years. Several waterways meander through the area, including branches of the Rahway River system and numerous smaller streams and creeks. These watercourses have carved shallow valleys into the landscape, creating gentle undulations in the otherwise relatively flat terrain. Wetland areas are scattered throughout the region, particularly in low-lying areas near streams and in poorly drained soils.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations in the Woodbridge vicinity would be the relatively flat to gently sloping areas with southern exposure. These locations offer the best combination of accessible terrain and optimal solar orientation. Areas with slopes between 0 to 15 degrees facing south or southwest would be particularly well-suited for solar array placement. Former industrial sites and brownfields in the region present excellent opportunities for solar development. These areas often feature large, cleared parcels of land with existing infrastructure access, making them ideal candidates for utility-scale installations. The relatively flat nature of many reclaimed industrial sites eliminates the need for extensive grading or earthwork. Open agricultural areas and large undeveloped parcels on the higher, well-drained portions of the landscape would also be prime candidates for solar development. These locations typically offer good access for construction equipment and maintenance vehicles while avoiding environmentally sensitive wetland areas and flood-prone zones near waterways. Areas to avoid for large-scale solar installations include the steeper slopes found in some of the more heavily wooded sections, wetland areas, and locations with significant tree cover that would require extensive clearing. The numerous small valleys and drainage areas throughout the region would also present challenges due to potential flooding concerns and less optimal solar exposure angles.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
