Chatsworth, New Jersey, United States offers reasonably good conditions for year-round solar energy generation, though like most locations in the Northern Temperate Zone, it experiences significant seasonal variation in solar output.

Seasonal Solar Performance

The location shows typical patterns for its latitude, with summer providing the strongest solar energy production at 6.31 kWh per day per kW of installed capacity. Spring follows as the second-best season with 5.55 kWh per day per kW, making these warm months ideal for solar generation. Autumn drops to 3.75 kWh per day per kW, while winter represents the challenging period with only 2.24 kWh per day per kW of production. For maximum year-round energy capture, solar panels should be installed at a fixed tilt angle of 34 degrees facing south. This angle has been calculated to optimize total annual production by accounting for the sun's changing position throughout the year and weighting for the varying solar energy potential across all seasons.

Local Environmental Challenges

Several environmental factors in the Chatsworth area could impact solar energy production. The region's proximity to the Pine Barrens and coastal areas means higher humidity levels, which can reduce solar panel efficiency and promote faster accumulation of dirt, pollen, and organic debris on panel surfaces. New Jersey's climate brings frequent precipitation, including snow in winter months, which can temporarily block panels. The area also experiences occasional severe weather events, including nor'easters and tropical storms, which can damage installations or cause extended periods of heavy cloud cover.

Preventative Installation Measures

To maximize solar production despite these challenges, several installation strategies prove beneficial:

• Install panels with adequate spacing and ventilation to reduce heat buildup in humid conditions
• Use mounting systems that allow panels to shed snow and rain effectively
• Choose high-quality, weather-resistant equipment rated for coastal and humid environments
• Implement regular cleaning schedules, particularly during pollen season and after storms
• Ensure proper grounding and surge protection for severe weather events

The seasonal variation means that battery storage or grid-tied systems become particularly valuable for managing the significant difference between summer peak production and winter low output periods.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

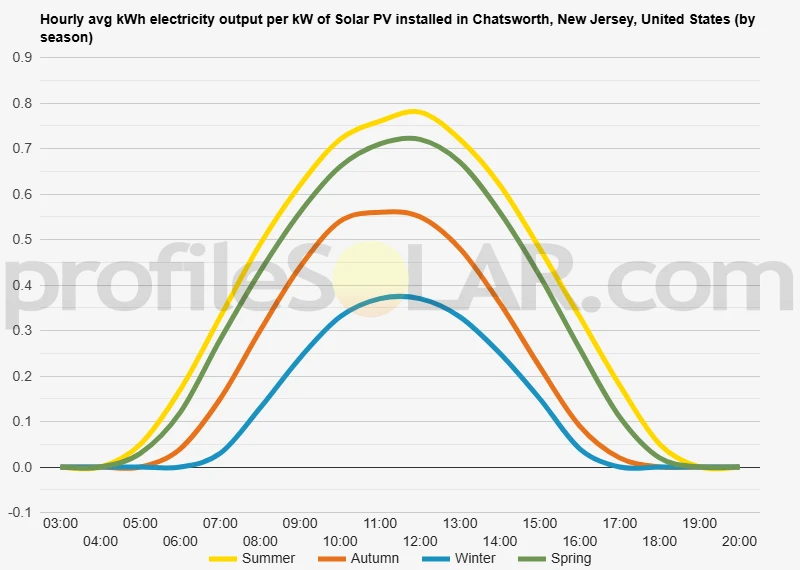

Solar output per kW of installed solar PV by season in Chatsworth, New Jersey

Seasonal solar PV output for Latitude: 39.8066, Longitude: -74.5284 (Chatsworth, New Jersey, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 34° South in Chatsworth, New Jersey, United States

To maximize your solar PV system's energy output in Chatsworth, New Jersey, United States (Lat/Long 39.8066, -74.5284) throughout the year, you should tilt your panels at an angle of 34° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Chatsworth, New Jersey, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Chatsworth, New Jersey, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 34° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
23° South in Summer	44° South in Autumn	55° South in Winter	33° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Chatsworth, New Jersey, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Chatsworth, New Jersey, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Chatsworth, New Jersey, United States

Topography Around Chatsworth, New Jersey

The area surrounding Chatsworth in New Jersey sits within the heart of the Pine Barrens, a distinctive ecological region characterized by remarkably flat and low-lying terrain. This location rests at approximately 60 feet above sea level, with the surrounding landscape featuring gentle undulations that rarely exceed 100 feet in elevation. The topography consists primarily of sandy soils overlying a vast aquifer system, creating a relatively uniform and stable foundation across the region.

The Pine Barrens terrain is dominated by sandy plains interspersed with cedar swamps, cranberry bogs, and pine forests. The landscape features numerous small streams and wetland areas that meander through the flat countryside, creating a patchwork of dry sandy ridges and moister lowland areas. Despite these water features, much of the region consists of well-drained sandy soils that support the characteristic pitch pine and oak forest ecosystem.

The generally level nature of the terrain around Chatsworth makes it particularly well-suited for large-scale development projects. The absence of significant hills, rocky outcroppings, or steep grades eliminates many of the challenging topographical obstacles that can complicate construction and installation activities in other regions.

Optimal Areas for Large-Scale Solar Development

The flat, sandy terrain surrounding Chatsworth presents excellent opportunities for large-scale solar photovoltaic installations. The most suitable areas would be the elevated sandy plains that lie between the wetland systems, particularly those sections that have been previously cleared or are currently used for agriculture. These areas offer the stable, level ground necessary for efficient solar panel installation while avoiding the environmentally sensitive wetland and stream corridors.

Former agricultural fields and cleared areas along the major transportation corridors would be prime candidates for solar development. These locations typically feature compacted soils suitable for supporting solar infrastructure, existing access roads, and proximity to electrical transmission lines. The sandy soil composition, while requiring appropriate foundation design, generally provides good drainage and reduces concerns about standing water that could affect equipment performance.

Areas to the north and west of Chatsworth, where the terrain remains consistently flat but rises slightly above the immediate wetland influence, would be particularly advantageous. These locations maintain the topographical benefits of level ground while offering better drainage characteristics and reduced environmental constraints compared to areas closer to the extensive bog and stream systems.

The region's relatively uniform elevation and lack of significant topographical barriers also mean that large solar installations could be developed without concerns about shading from hills or ridgelines. This consistent exposure potential across the landscape allows for flexible site selection based primarily on land availability, environmental considerations, and proximity to electrical infrastructure rather than topographical limitations.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
