Liberty, Texas, located in the Northern Sub Tropics at coordinates 30.058, -94.7955, offers a reasonably good location for solar PV energy generation, though with notable seasonal variations. This location experiences strong solar production in summer months but sees significant reduction during winter.

The solar energy production at this location varies considerably throughout the year. During summer, panels can generate an impressive 6.48kWh per day for each kilowatt installed. This drops to 4.76kWh/day in autumn, falls further to just 3.02kWh/day during winter months, and then recovers to 5.21kWh/day in spring. This pattern shows that summer is clearly the peak production season, with winter outputs less than half of summer values.

Optimal Panel Installation

For fixed solar panel installations in Liberty, the ideal tilt angle to maximize year-round energy production is 26 degrees facing South. This specific angle has been calculated to optimize annual solar capture based on Liberty's latitude and seasonal sun positions, taking into account the Earth's elliptical orbit and weighted by the potential daily PV production.

Environmental Considerations

Several environmental factors in Liberty may impact solar energy production. The Gulf Coast location means humidity can be high, potentially causing condensation on panels that reduces efficiency. More significantly, Liberty experiences periodic hurricane and tropical storm threats which can damage installations if not properly secured.

The area also receives substantial rainfall (approximately 55 inches annually), which can temporarily reduce production during storms but helps naturally clean panels. Summer temperatures frequently exceed 90°F, which can slightly reduce panel efficiency as solar cells become less efficient at higher temperatures.

Preventative Measures

To maximize solar production in Liberty, several preventative measures are recommended:

• Install hurricane-rated mounting systems designed to withstand high winds
• Use panels with high temperature coefficients that maintain better efficiency during hot summer days
• Consider slightly increasing the tilt angle beyond 26 degrees if winter production is particularly important
• Implement regular cleaning schedules, especially during pollen season (spring) and after extended dry periods
• Use micro-inverters or power optimizers to minimize production losses when partial shading occurs

With proper installation accounting for these local factors, Liberty residents can expect good overall solar performance, particularly from late spring through early fall when production values are highest.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

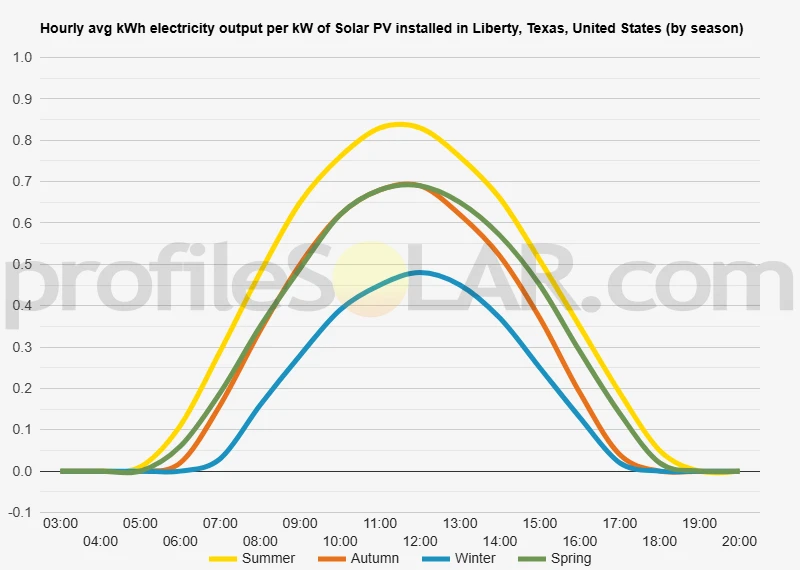

Solar output per kW of installed solar PV by season in Liberty, Texas

Seasonal solar PV output for Latitude: 30.058, Longitude: -94.7955 (Liberty, Texas, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 26° South in Liberty, Texas, United States

To maximize your solar PV system's energy output in Liberty, Texas, United States (Lat/Long 30.058, -94.7955) throughout the year, you should tilt your panels at an angle of 26° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Liberty, Texas, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Liberty, Texas, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 26° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
14° South in Summer	35° South in Autumn	45° South in Winter	23° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Liberty, Texas, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Liberty, Texas, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Liberty, Texas, United States

The terrain surrounding Liberty, Texas, situated at coordinates 30.058° N, 94.7955° W, is characterized by a predominantly flat to gently rolling landscape typical of the upper Texas Gulf Coastal Plain. This area features low elevation, generally ranging from about 20 to 80 feet above sea level, with minimal significant topographical variations. The natural environment consists of a mix of pine forests, hardwood bottomlands, and open prairie spaces that have been largely converted to agricultural use or residential development. Liberty sits near the Trinity River basin, which introduces some minor variations in the landscape, with slightly higher ridges and shallow depressions formed by centuries of river activity. The soil composition is predominantly sandy loam and clay, a legacy of ancient river deposits. This flat terrain means there are few natural obstacles to sunlight, though the presence of trees and forested areas does create some shaded zones throughout the region.

Optimal Areas for Solar PV Development

For large-scale solar photovoltaic installation, the most suitable areas near Liberty would be the cleared agricultural lands and pastures that extend outward from the city, particularly to the west and northwest. These areas offer several advantages: they are already cleared of the dense vegetation that characterizes parts of East Texas, they feature minimal slope which reduces installation costs and erosion concerns, and they generally have good exposure to the southern sky which is optimal for solar energy collection. The agricultural lands between Liberty and Dayton, as well as areas extending toward Cleveland, present particularly promising opportunities. These spaces combine favorable topographical characteristics with proximity to existing electrical infrastructure, which is crucial for connecting new generation capacity to the grid. Areas to avoid would include the immediate floodplains of the Trinity River and its tributaries, which experience periodic inundation, as well as heavily forested tracts where clearing would be both expensive and environmentally disruptive. Additionally, the wetland areas that dot the region, particularly to the south and southeast toward Trinity Bay, would be unsuitable due to environmental sensitivity and unstable ground conditions. The relatively modest elevation changes throughout the region mean that most cleared areas receive consistent sun exposure throughout the day, making them potentially productive for solar energy harvesting. The flat terrain also simplifies construction and maintenance access, reducing the overall cost of installation and operation for large-scale solar facilities.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]
