Red Bank, New Jersey, located in the Northern Temperate Zone, presents a moderately favorable location for year-round solar energy generation, though with significant seasonal variations that potential solar adopters should understand.

Seasonal Solar Performance

The solar energy output at this location shows dramatic differences throughout the year. Summer provides the peak performance period, generating 6.02 kWh per day per kilowatt of installed solar capacity. This represents nearly three times the energy production compared to winter months, which produce only 2.14 kWh per day per kilowatt. Spring offers strong solar generation at 5.44 kWh per day per kilowatt, making it the second-best season for solar energy production. Autumn falls in the middle range with 3.48 kWh per day per kilowatt, providing decent but declining output as the region moves toward winter.

Optimal Installation Configuration

For maximum year-round energy production at Red Bank, solar panels should be installed at a fixed tilt angle of 35 degrees facing south. This angle has been calculated to optimize total annual solar output by accounting for the sun's changing position throughout the year and weighting the angles based on actual solar irradiance data.

Local Factors Affecting Solar Production

Several environmental and weather factors in the Red Bank area can significantly impact solar energy generation:

• Snow accumulation during winter months can block panels and reduce output
• High humidity and frequent cloud cover, particularly during summer thunderstorms
• Coastal proximity may lead to salt air corrosion of equipment
• Tree coverage and urban development creating shading issues
• Ice formation during winter freeze-thaw cycles

Preventative Measures for Better Performance

To maximize solar energy production despite these challenges, several installation strategies prove effective:

• Install panels with adequate spacing and smooth surfaces to promote snow sliding
• Use corrosion-resistant mounting hardware and regular cleaning schedules for salt air exposure
• Conduct thorough shade analysis and trim vegetation annually
• Choose high-quality inverters and panels rated for humid coastal conditions
• Consider micro-inverters to minimize impact of partial shading

Regular maintenance becomes particularly important in this location. Quarterly cleaning helps remove salt deposits and debris, while annual inspections can catch weather-related damage early. The significant seasonal variation means that battery storage or grid-tie systems become especially valuable for maintaining consistent energy availability during the lower-production winter months.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

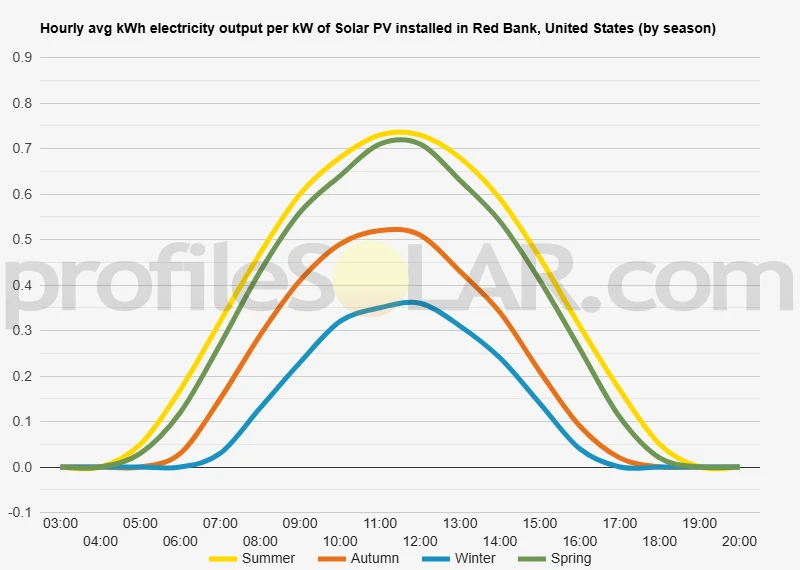

Solar output per kW of installed solar PV by season in Red Bank

Seasonal solar PV output for Latitude: 40.3584, Longitude: -74.0681 (Red Bank, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 35° South in Red Bank, United States

To maximize your solar PV system's energy output in Red Bank, United States (Lat/Long 40.3584, -74.0681) throughout the year, you should tilt your panels at an angle of 35° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Red Bank, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Red Bank, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 35° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
24° South in Summer	45° South in Autumn	55° South in Winter	33° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Red Bank, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Red Bank, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Red Bank, United States

Topographical Features of Red Bank, New Jersey

Red Bank sits in the coastal plain region of central New Jersey, positioned along the Navesink River approximately six miles inland from the Atlantic Ocean. The terrain around Red Bank is characterized by gently rolling hills and relatively low elevation changes, typical of the Mid-Atlantic coastal plain. The area features a mix of river valleys, modest ridgelines, and flat to gently sloping terrain that rarely exceeds 200 feet above sea level. The Navesink River creates a significant topographical feature as it meanders through the landscape, forming a natural valley system that influences the surrounding terrain. North and south of the river, the land gradually rises into low hills and plateaus. These elevated areas are interspersed with smaller tributaries and seasonal waterways that have carved gentle depressions in the landscape over time. The region's geology consists primarily of sandy soils and sedimentary deposits left by ancient marine environments and glacial activity. This composition contributes to the area's relatively stable and well-drained terrain, though some lower-lying areas near waterways can experience seasonal moisture retention.

Optimal Areas for Large-Scale Solar Development

The most promising locations for extensive solar installations lie on the elevated plateaus and gentle south-facing slopes found throughout Monmouth County. Areas to the west and northwest of Red Bank offer particularly favorable conditions, where the terrain opens into broader expanses of relatively flat agricultural land and former industrial sites. These locations provide the necessary space for large solar arrays while maintaining good drainage and minimal shading concerns. The higher elevations found in the Holmdel and Colts Neck areas, roughly ten to fifteen miles west of Red Bank, present excellent opportunities for solar development. These locations feature expansive flat to gently rolling terrain with minimal tree coverage in many areas, particularly where agricultural activities have maintained open landscapes. Former industrial and commercial sites throughout the region also represent prime candidates for solar conversion. Many of these locations already possess cleared land with existing electrical infrastructure, reducing development costs and environmental impact. The slightly elevated areas around the Route 9 and Route 18 corridors offer particularly good access to transmission infrastructure. Agricultural areas in western Monmouth County provide another category of suitable terrain, where large contiguous parcels of relatively flat land could accommodate substantial solar installations. The gentle topography in these areas minimizes grading requirements while providing natural drainage patterns that help maintain system performance over time.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
