Richlands, Virginia, located in the United States at latitude 37.0932° and longitude -81.7937°, offers varying potential for solar PV energy generation throughout the year. This location in the Northern Temperate Zone experiences significant seasonal fluctuations in solar production.

Seasonal Solar Production

Solar panels in Richlands demonstrate substantial variation across seasons. Summer stands out as the most productive period, generating approximately 6.46 kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season, yielding about 5.50 kWh daily per kilowatt. Autumn production decreases to 3.98 kWh per day, while winter shows the lowest output at just 2.13 kWh daily per kilowatt of installed capacity.

This pattern creates a more than threefold difference between summer and winter production, which is typical for locations in the mid-latitudes of the Northern Hemisphere. The most favorable period for solar generation spans from late spring through early fall (approximately May through September), when days are longer and the sun's position is higher in the sky.

Optimal Panel Installation

For fixed solar panel installations in Richlands, the ideal tilt angle to maximize year-round energy production is 32 degrees facing South. This angle has been calculated by analyzing daily solar elevation angles at this latitude, weighted by the potential daily PV output throughout the year.

Environmental Challenges

Several environmental factors in Richlands could potentially impact solar production:

• The Appalachian Mountain region experiences frequent cloud cover and precipitation, particularly in winter months, which can reduce solar efficiency.
• Snowfall during winter can cover panels and temporarily halt production unless removed.
• The mountainous terrain may create shading issues depending on the specific installation site.
• The region experiences occasional severe weather, including thunderstorms and potential flooding.

Preventative Measures

To maximize solar production despite these challenges, several preventative measures should be considered. Installing panels at the recommended 32-degree angle helps optimize year-round production while facilitating natural snow shedding. Using micro-inverters or power optimizers can mitigate partial shading issues common in mountainous areas. Regular maintenance, including snow removal in winter, will ensure consistent production.

Additionally, careful site selection to avoid terrain-based shading, particularly from the south, can significantly improve overall system performance. While Richlands isn't ideal for solar production compared to sunnier regions, a properly designed system can still provide substantial renewable energy, particularly during the productive summer and spring seasons.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

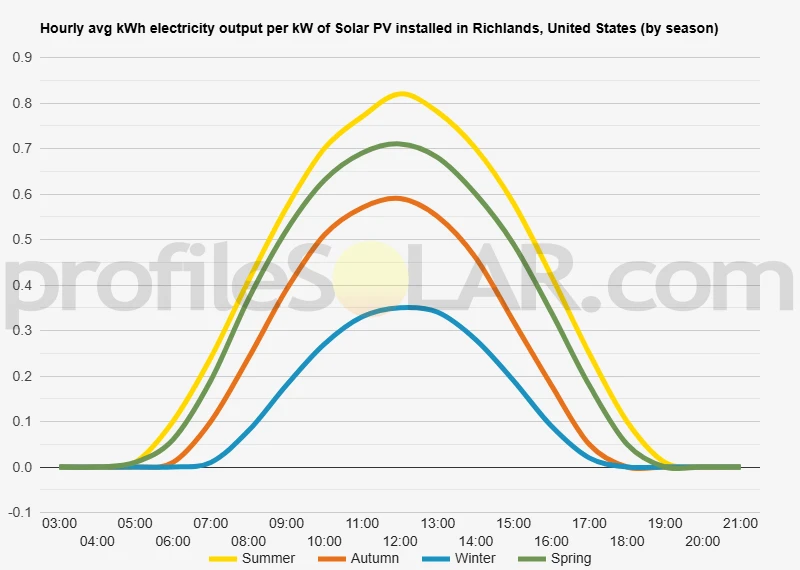

Solar output per kW of installed solar PV by season in Richlands

Seasonal solar PV output for Latitude: 37.0932, Longitude: -81.7937 (Richlands, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 32° South in Richlands, United States

To maximize your solar PV system's energy output in Richlands, United States (Lat/Long 37.0932, -81.7937) throughout the year, you should tilt your panels at an angle of 32° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Richlands, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Richlands, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 32° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
21° South in Summer	41° South in Autumn	52° South in Winter	30° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Richlands, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Richlands, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Richlands, United States

Richlands, Virginia is nestled in the heart of the Appalachian Mountains in southwestern Virginia, specifically within Tazewell County. The topography around Richlands is characterized by mountainous terrain, with significant variations in elevation throughout the region. The town itself sits in a valley at approximately 1,950 feet above sea level, but is surrounded by mountain ridges and hills that can rise several hundred to over a thousand feet above the valley floor. The landscape features numerous ridges running primarily in a northeast to southwest orientation, following the general trend of the Appalachian Mountain chain. These ridges create a series of parallel valleys, with Richlands situated in one such valley along the Clinch River. The terrain is heavily dissected by streams and rivers that have carved steep-sided valleys through the mountains over millions of years.

Mountain Features

The mountains surrounding Richlands are part of the Ridge and Valley physiographic province, characterized by folded and faulted sedimentary rock layers. These geological formations have created distinctive ridges with steep slopes on one side and more gradual slopes on the other. Dense forests cover much of the mountainous areas, primarily consisting of mixed hardwoods typical of the Appalachian region. Notable nearby elevations include East River Mountain to the north, which forms part of the Virginia-West Virginia border, and Clinch Mountain to the south. These mountain ranges can reach elevations of 3,000 to 4,000 feet, creating significant topographic relief in the region.

Valley Systems

Between the mountain ridges lie narrow to moderately wide valleys, where most human settlement and agricultural activity occur. The Clinch River Valley, where Richlands is located, provides a relatively flat area compared to the surrounding highlands. This valley system follows the Clinch River, a major tributary of the Tennessee River, which flows through the region. The valley floors typically range from a quarter mile to several miles in width, with gently rolling terrain punctuated by occasional hills and terraces. These areas have historically been the focus of development due to their accessibility and more favorable conditions for building infrastructure.

Solar PV Potential Areas

For large-scale solar photovoltaic (PV) installations, several factors related to topography must be considered, including slope, aspect (direction the land faces), and shading from surrounding terrain. In the Richlands area, the most suitable locations for large-scale solar development would be: Valley floors and terraces offer the most promising locations for solar PV installations. These relatively flat areas would require minimal grading and site preparation. The wider portions of the Clinch River Valley and similar valleys in the region provide open spaces with adequate land area for commercial-scale solar arrays. These locations typically have fewer shading issues from surrounding mountains, particularly in the wider sections of valleys. South-facing slopes with moderate gradients could also be suitable for solar development. In the northern hemisphere, south-facing terrain receives the most direct sunlight throughout the year. Some of the more gradual south-facing hillsides in the region could be utilized for solar arrays, though installation costs would be higher than on flat terrain due to the need for specialized mounting systems and more complex engineering solutions. Former surface mining sites in the region present interesting opportunities for solar development. The coal mining history of southwestern Virginia has left behind numerous reclaimed mine lands that often feature large, relatively flat areas that have already been cleared of vegetation. These brownfield sites could be repurposed for solar energy production, though soil stability and environmental factors would need careful assessment.

Topographic Challenges

Despite these potential areas, the mountainous topography around Richlands presents significant challenges for large-scale solar development. The narrow valleys mean that morning and evening shading from surrounding mountains can substantially reduce the effective solar collection period. The predominantly forested landscape would require clearing for solar installations, raising environmental concerns and increasing development costs. Additionally, the region experiences more cloud cover compared to the American Southwest and other prime solar energy locations. The mountains can create localized weather patterns, including fog in valleys that might periodically reduce solar efficiency. Access to transmission infrastructure is another consideration affected by topography. The mountainous terrain makes grid connection more challenging and potentially more expensive, as new transmission lines would need to navigate difficult topography to connect solar facilities to the existing grid. The combination of these topographic factors means that while solar development is certainly possible in the Richlands area, it would face more constraints than in flatter regions. Careful site selection focusing on the valley floors, south-facing slopes, and reclaimed mine lands would be essential to maximize the viability of large-scale solar PV projects in this mountainous region.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
