Solar PV Analysis of Belton, Missouri, United States
Belton, Missouri, located in the Northern Temperate Zone at coordinates 38.8121, -94.534, offers a moderate potential for solar energy generation throughout the year. The location experiences significant seasonal variations in solar output, which affects the overall efficiency of solar PV systems.
Seasonal Solar Performance
Summer stands out as the most productive season for solar energy in Belton, with an impressive daily output of 6.72 kWh per kW of installed solar capacity. Spring follows as the second-best season, generating 5.12 kWh/day. Autumn sees a noticeable decrease in production at 4.10 kWh/day, while winter experiences the lowest output at 2.61 kWh/day.
The substantial difference between summer and winter production highlights the impact of seasonal variations on solar energy generation in this region. This pattern suggests that solar installations in Belton will be most effective from late spring through early fall, with peak performance during the summer months.
Optimal Panel Positioning
To maximize year-round solar energy production in Belton, fixed solar panels should be installed at a tilt angle of 34 degrees facing south. This angle has been calculated to optimize the panels' exposure to sunlight throughout the year, taking into account the location's latitude and the Earth's elliptical orbit.
Environmental Considerations
While Belton's location is generally favorable for solar energy production, there are some environmental factors that could potentially impact system performance:
- Snowfall: Winter snowfall can temporarily reduce panel efficiency by blocking sunlight. Regular snow removal or the installation of panels at a steeper angle can help mitigate this issue.
- Severe weather: The region may experience occasional severe storms, including hail, which could potentially damage solar panels. Using impact-resistant panels and ensuring proper insurance coverage can protect against such risks.
To enhance solar production in Belton, consider implementing a tracking system to follow the sun's path, which can increase energy output compared to fixed installations. Additionally, regular maintenance, including cleaning panels and trimming nearby vegetation, can help maintain optimal performance throughout the year.
Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in the United States by location

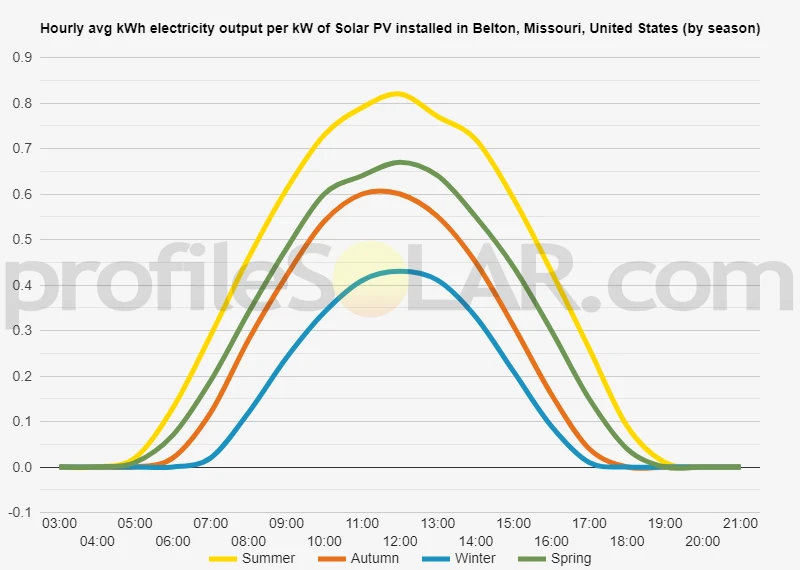

Solar output per kW of installed solar PV by season in Belton, Missouri
Seasonal solar PV output for Latitude: 38.8121, Longitude: -94.534 (Belton, Missouri, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 34° South in Belton, Missouri, United States
To maximize your solar PV system's energy output in Belton, Missouri, United States (Lat/Long 38.8121, -94.534) throughout the year, you should tilt your panels at an angle of 34° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Belton, Missouri, United States
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Belton, Missouri, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 34° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 23° South in Summer | 43° South in Autumn | 54° South in Winter | 32° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Belton, Missouri, United States
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Belton, Missouri, United States.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Belton, Missouri, United States
The topography around Belton, United States, which is located at latitude 38.8121 and longitude -94.534, is generally characterized by gently rolling hills and plains. This area is part of the Osage Plains region, which is known for its subtle elevation changes and wide-open spaces. The landscape is a mix of grasslands, agricultural fields, and scattered woodlands.
The terrain in and around Belton is relatively flat to moderately hilly, with elevation changes typically ranging from gentle slopes to occasional steeper inclines. The area's elevation is generally between 900 to 1,100 feet above sea level. You'll find some small streams and creeks running through the region, which have carved shallow valleys over time.
As for areas nearby that would be most suited to large-scale solar PV (photovoltaic) installations, several factors come into play. Ideal locations for solar farms typically have the following characteristics:
- Open, flat or gently sloping land
- Minimal shading from trees or structures
- Good sun exposure throughout the day
- Proximity to existing electrical infrastructure
- Away from environmentally sensitive areas
Given these criteria, the rural areas surrounding Belton could potentially be well-suited for large-scale solar PV projects. The open farmlands and grasslands to the south and east of Belton, particularly in Cass County and into Johnson County, might offer suitable locations. These areas generally have fewer obstructions and more available land compared to the more densely populated regions closer to Kansas City to the north.
However, it's important to note that any specific site selection would require detailed analysis, including environmental impact assessments, zoning considerations, and grid connection feasibility studies. Local regulations and community acceptance would also play crucial roles in determining the viability of large-scale solar projects in the region.
United States solar PV Stats as a country
United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in United States?
Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.
Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
