Magnolia, New Jersey offers reasonably good conditions for solar energy generation throughout the year, though like most locations in the Northern Temperate Zone, it experiences significant seasonal variation in solar output.

Seasonal Solar Performance

The solar energy production at this location varies considerably across the seasons. Summer provides the strongest performance at 6.45 kWh per day per kW of installed capacity, making it the prime season for solar generation. Spring follows as the second-best season with 5.57 kWh per day per kW, offering nearly as much energy production as summer. Autumn sees a notable drop to 3.71 kWh per day per kW, while winter represents the most challenging period with only 2.25 kWh per day per kW of production. This winter figure is less than half of the spring output and roughly one-third of summer production. For optimal year-round energy capture, solar panels should be installed at a fixed tilt angle of 34 degrees facing south. This angle has been calculated to maximize total annual production by accounting for the sun's changing position throughout the year and weighting for actual solar energy potential.

Local Factors That May Impact Solar Production

Several environmental and weather factors in the Magnolia, New Jersey area could potentially reduce solar energy output:

• Snow accumulation during winter months can block panels and significantly reduce production
• High humidity levels, especially in summer, can create atmospheric haze that reduces solar irradiance
• Frequent cloud cover and overcast conditions, particularly during autumn and winter
• Tree coverage and foliage, which can create shading issues, especially when deciduous trees are in full leaf
• Air pollution and particulate matter from nearby urban areas that can reduce panel efficiency

Preventative Measures for Better Performance

To maximize solar energy production despite these challenges, several installation strategies can be employed:

• Install panels at a steeper angle (closer to 45 degrees) to help snow slide off more easily
• Ensure adequate spacing between panel rows to minimize self-shading
• Conduct thorough site surveys to identify and avoid areas with tree shading, particularly during peak sun hours
• Consider micro-inverters or power optimizers to minimize the impact when individual panels are partially shaded
• Plan for regular cleaning and maintenance schedules to remove dust, debris, and snow buildup
• Install monitoring systems to quickly identify when panels are underperforming due to environmental factors

Overall, while Magnolia, New Jersey is not among the most ideal solar locations in the United States due to its northern latitude and seasonal weather patterns, it still offers sufficient solar resources to make photovoltaic installations economically viable, particularly when proper installation techniques are used to address local environmental challenges.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

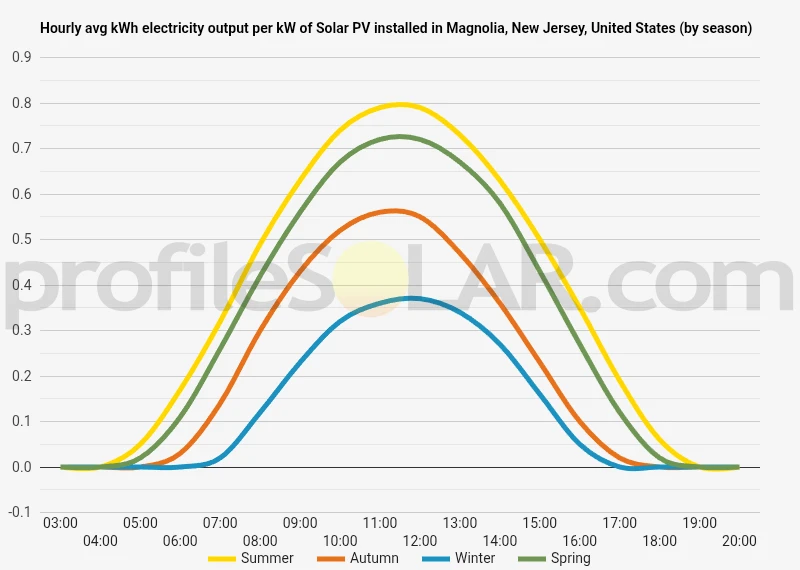

Solar output per kW of installed solar PV by season in Magnolia, New Jersey

Seasonal solar PV output for Latitude: 39.8587, Longitude: -75.0436 (Magnolia, New Jersey, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 34° South in Magnolia, New Jersey, United States

To maximize your solar PV system's energy output in Magnolia, New Jersey, United States (Lat/Long 39.8587, -75.0436) throughout the year, you should tilt your panels at an angle of 34° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Magnolia, New Jersey, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Magnolia, New Jersey, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 34° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
23° South in Summer	44° South in Autumn	55° South in Winter	33° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Magnolia, New Jersey, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Magnolia, New Jersey, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Magnolia, New Jersey, United States

Topography Around Magnolia

The area surrounding Magnolia in Camden County, New Jersey, is characterized by relatively flat to gently rolling terrain typical of the Atlantic Coastal Plain region. This location sits within the broader Delaware Valley, where elevations remain modest and the landscape consists primarily of low-lying areas with gradual undulations rather than steep hills or dramatic elevation changes. The topography is dominated by sedimentary deposits that have created a fairly uniform surface across much of the region. Small streams and tributaries of the Delaware River system have carved shallow valleys through the landscape, but these features are generally subtle and do not create significant topographical barriers. The terrain slopes very gently toward the Delaware River to the west, with most elevation changes occurring over considerable distances rather than abrupt transitions. Agricultural fields, suburban developments, and patches of woodland are interspersed throughout the area, with the land use patterns reflecting the manageable topography that has made development and farming relatively straightforward. The soil composition includes sandy and clay-based materials that provide stable foundations while allowing for reasonable drainage in most areas.

Optimal Areas for Large-Scale Solar Development

The topographical characteristics around Magnolia present several advantages for large-scale solar photovoltaic installations. The predominantly flat terrain eliminates many of the challenges associated with steep slopes, such as increased installation costs, complex grading requirements, and potential shading issues between solar panel rows. Areas with the most suitable topography for solar development would be the expanses of relatively level ground that extend north and south of Magnolia. These locations offer the consistent, unobstructed surfaces that are ideal for maximizing solar panel efficiency and minimizing installation complexity. The gentle slopes that do exist in the region are typically gradual enough to accommodate solar arrays without requiring extensive site preparation or specialized mounting systems. Former agricultural lands in the area represent particularly attractive opportunities for solar development, as these parcels often provide large, contiguous areas of relatively flat terrain that have already been cleared of significant vegetation. The stable soil conditions found throughout much of the region would support the foundation requirements for solar mounting systems without excessive engineering challenges. The proximity to existing electrical infrastructure, combined with the favorable topographical conditions, makes the areas immediately surrounding Magnolia well-suited for utility-scale solar installations. The lack of significant elevation changes means that electrical connections and maintenance access roads can be established with minimal grading or earthwork requirements.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.
