San Gabriel, California, located in the United States at coordinates 34.0899, -118.0871 in the Northern Sub Tropics, offers generally favorable conditions for solar PV energy generation throughout the year, though with significant seasonal variations.

Seasonal Solar Production

Solar energy production in San Gabriel shows strong seasonal patterns. Summer is the most productive season with an average daily output of 8.44kWh per kW of installed capacity. Spring follows closely with 7.52kWh/day, making these warmer months ideal for maximum solar generation. Autumn sees a moderate decrease to 5.34kWh/day, while winter production drops significantly to 3.76kWh/day per kW installed.

This seasonal pattern means that San Gabriel residents can expect approximately 55% less solar energy production during winter months compared to summer peaks. Despite this winter reduction, the location still maintains reasonable year-round production, with even the lowest season providing useful energy generation.

Optimal Installation Setup

For maximum year-round energy production in San Gabriel, fixed solar panels should be installed at a 29-degree tilt facing South. This specific angle has been calculated to optimize annual solar collection based on the location's latitude and seasonal sun positions, accounting for Earth's elliptical orbit.

Environmental Considerations

Several environmental factors could potentially impact solar production in San Gabriel:

• Smog and air pollution from the greater Los Angeles metropolitan area can reduce solar irradiance reaching panels, particularly during summer months when smog conditions often worsen.
• Occasional Santa Ana wind events can bring dust that may accumulate on panels, temporarily reducing efficiency.
• Wildfire smoke during California's increasingly active fire seasons can significantly diminish solar production when present.

Preventative Measures

To maximize solar energy production in San Gabriel despite these challenges, consider these preventative measures:

• Install automated cleaning systems or implement regular manual cleaning schedules to remove dust and particulate matter, especially following Santa Ana wind events.
• Use anti-soiling coatings on panels to reduce dust adhesion and make rainfall more effective at natural cleaning.
• Consider micro-inverter or power optimizer technology to minimize production losses when some panels are partially affected by shading or soiling.
• Install monitoring systems to track performance and quickly identify when cleaning or maintenance is needed.

Overall, San Gabriel provides a very suitable location for solar PV installation with strong production potential, especially from spring through fall. With proper installation at the optimal angle and regular maintenance to address environmental factors, solar systems in this location can provide substantial renewable energy throughout the year.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

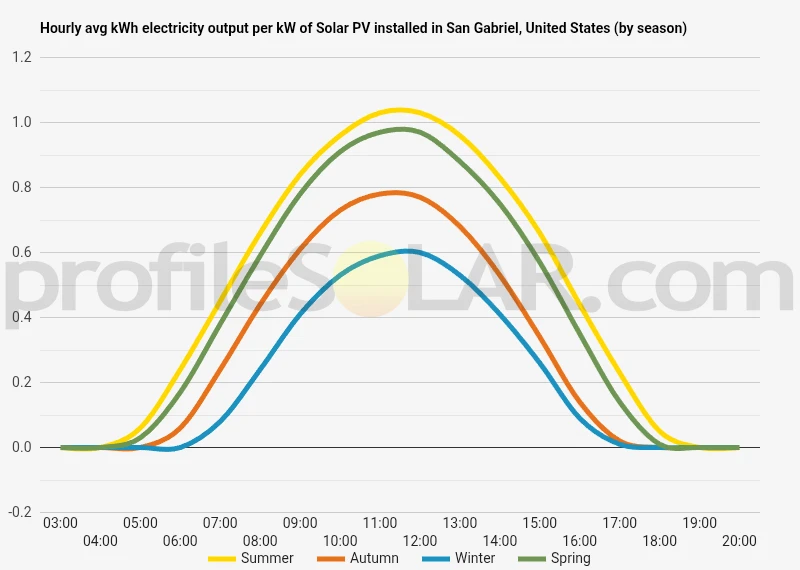

Solar output per kW of installed solar PV by season in San Gabriel

Seasonal solar PV output for Latitude: 34.0899, Longitude: -118.0871 (San Gabriel, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 29° South in San Gabriel, United States

To maximize your solar PV system's energy output in San Gabriel, United States (Lat/Long 34.0899, -118.0871) throughout the year, you should tilt your panels at an angle of 29° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for San Gabriel, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in San Gabriel, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 29° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
18° South in Summer	39° South in Autumn	49° South in Winter	27° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in San Gabriel, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in San Gabriel, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around San Gabriel, United States

San Gabriel, located in Los Angeles County, California, sits within a distinctive topographical setting characterized by a blend of flat valley floors and dramatic mountain backdrops. The city itself lies within the San Gabriel Valley, a relatively flat basin that extends eastward from the Los Angeles metropolitan area. This valley is bounded to the north by the impressive San Gabriel Mountains, which rise steeply to elevations exceeding 10,000 feet at their highest points, creating a striking visual contrast with the developed urban landscape below. The immediate terrain around San Gabriel is predominantly level to gently sloping, with elevations ranging from approximately 400 to 500 feet above sea level throughout most of the city. This relatively flat topography was formed by alluvial deposits from the San Gabriel Mountains, creating fertile soil that historically supported extensive agriculture before urban development. Several small watercourses, including the Rio Hondo and San Gabriel River, traverse the valley, though many have been channelized for flood control purposes.

Surrounding Topographical Features

To the north, the San Gabriel Mountains present a formidable topographical barrier, with steep slopes and rugged terrain that rises dramatically from the valley floor. These mountains are part of the Transverse Ranges and contain numerous canyons, ridges, and peaks. The foothills of these mountains begin approximately 5-7 miles north of San Gabriel city center, creating a distinct transition zone between the flat valley and the mountainous terrain. To the south and southwest, the landscape transitions into the gently rolling Puente Hills, which separate the San Gabriel Valley from the coastal plains of Orange County. These hills are significantly lower than the San Gabriel Mountains, with elevations typically ranging from 1,000 to 1,500 feet, and present a more undulating terrain profile. The eastern portion of the San Gabriel Valley continues as a broad, flat plain that extends toward the Inland Empire region. To the west, the valley narrows somewhat as it approaches downtown Los Angeles, with subtle increases in elevation and terrain variability.

Areas Suited for Large-Scale Solar PV

For large-scale solar photovoltaic installations, the most suitable nearby areas would be found in the eastern portions of the San Gabriel Valley and extending into the western Inland Empire. These areas offer several advantageous characteristics: The relatively flat terrain east of San Gabriel, extending toward cities like Pomona and Ontario, provides ideal conditions for large solar arrays. These areas feature minimal topographical variation, reducing construction complexity and shadow effects that can decrease solar efficiency. The desert regions beyond the San Gabriel Mountains, particularly in the Antelope Valley around Lancaster and Palmdale, offer even more promising conditions for utility-scale solar development. Though farther from San Gabriel (approximately 35-50 miles), these areas feature vast expanses of flat, undeveloped land with minimal cloud cover and minimal competing land uses. Some of the gently sloping south-facing hillsides of the Puente Hills might also be considered for solar development, as they receive consistent sun exposure throughout the day. However, these areas present greater engineering challenges and potential environmental concerns than flat valley locations. It's worth noting that while topographically suitable areas exist, large-scale solar development near San Gabriel faces significant constraints due to the intensive urban development throughout the region. Most available land parcels are relatively small and often carry high land values due to their proximity to major population centers. Consequently, the most practical large-scale solar opportunities would likely be found in the more distant desert regions to the north and northeast, where larger contiguous land parcels remain available at lower cost despite the increased distance from population centers.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!

Citation Guide

Article Details for Citation

Tell Us About Your Work

We love seeing how our research helps others! If you've cited this article in your work, we'd be delighted to hear about it. Drop us a line via our Contact Us page or on X, to share where you've used our information - we may feature a link to your work on our site. This helps create a network of valuable resources for others in the solar energy community and helps us understand how our research is contributing to the field. Plus, we occasionally highlight exceptional works that reference our research on our social media channels.

Feeling generous?

Share this with your friends!

Compare this location to others worldwide for solar PV potential

The solar PV analyses available on our website, including this one, are offered as a free service to the global community. Our aim is to provide education and aid informed decision-making regarding solar PV installations.

However, please note that these analyses are general guidance and may not meet specific project requirements. For in-depth, tailored forecasts and analysis crucial for feasibility studies or when pursuing maximum ROI from your solar projects, feel free to contact us; we offer comprehensive consulting services expressly for this purpose.
