Solar Energy Potential in San Joaquin, California

San Joaquin, California, located in the United States' Central Valley region, offers a promising location for solar photovoltaic (PV) energy generation throughout the year. This location in the Northern Temperate Zone demonstrates significant seasonal variations in solar energy production potential. The solar output at this location varies considerably across seasons. Summer stands out as the most productive period with an impressive 8.68 kWh per day for each kilowatt of installed solar capacity. Spring follows closely behind with 7.67 kWh/day. Production decreases in autumn to 4.99 kWh/day, while winter represents the lowest output season with 3.21 kWh/day per kilowatt installed.

Seasonal Performance

The substantial difference between summer and winter production (a difference of 5.47 kWh/day per kilowatt) highlights the seasonal nature of solar generation at this latitude. This pattern makes late spring through early fall the ideal period for maximum solar energy harvesting in San Joaquin. For fixed panel installations at this location, the ideal angle to maximize year-round production is 31 degrees tilted toward the South. This specific angle optimizes the annual solar energy capture by balancing seasonal variations in sun position.

Environmental Considerations

Several environmental factors could impact solar production in San Joaquin. The Central Valley is known for seasonal fog during winter months, which can temporarily reduce solar output. Additionally, the region experiences agricultural burning and dust from farming operations that may deposit particulate matter on solar panels, reducing their efficiency. The area is also subject to occasional wildfire smoke during California's fire season (typically late summer through fall), which can significantly diminish solar radiation reaching panels. During drought years, dust accumulation becomes more problematic as the dry conditions increase airborne particles.

Preventative Measures

To maximize solar energy production in this location, several preventative measures should be considered:

• Implement regular cleaning schedules, particularly during agricultural operations seasons and after foggy periods
• Install automated cleaning systems or dust-repellent coatings to minimize the impact of Central Valley dust
• Consider slight adjustments to the tilt angle (perhaps 1-2 degrees steeper) if winter production is particularly important
• Use higher-efficiency panels that perform better in diffuse light conditions prevalent during foggy winter days
• Install monitoring systems to track performance and identify when cleaning or maintenance is needed

Despite these considerations, San Joaquin's overall solar potential remains excellent, with strong summer and spring production that can offset the reduced winter output. The location's position in California's sunny Central Valley makes it generally favorable for solar PV installations with appropriate maintenance practices.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

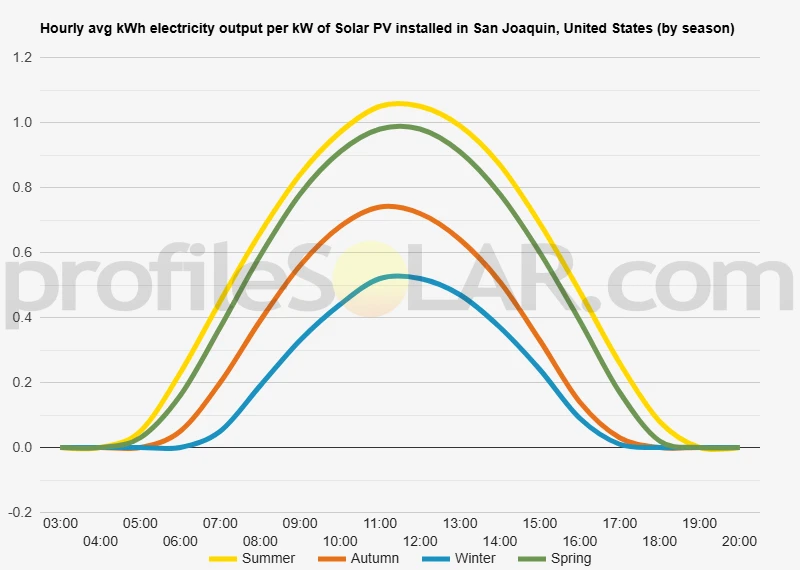

Solar output per kW of installed solar PV by season in San Joaquin

Seasonal solar PV output for Latitude: 36.6059, Longitude: -120.194 (San Joaquin, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 31° South in San Joaquin, United States

To maximize your solar PV system's energy output in San Joaquin, United States (Lat/Long 36.6059, -120.194) throughout the year, you should tilt your panels at an angle of 31° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for San Joaquin, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in San Joaquin, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 31° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
20° South in Summer	41° South in Autumn	51° South in Winter	29° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in San Joaquin, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in San Joaquin, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around San Joaquin, United States

The topography around San Joaquin, California presents a fascinating landscape shaped by geological forces over millennia. Located in the heart of the San Joaquin Valley, this area is characterized predominantly by flat, expansive plains that stretch across the central portion of California's Great Central Valley. The terrain sits at a relatively modest elevation of approximately 160-170 feet above sea level, creating a broad, level basin. To the east of San Joaquin, the landscape gradually rises toward the majestic Sierra Nevada mountain range, though these mountains lie some distance away. The eastern horizon shows a subtle but perceptible increase in elevation as the land transitions from valley floor to foothills. To the west, the coastal ranges form a natural boundary, with the Diablo Range creating a backdrop of rolling hills and modest peaks that separate the valley from the coastal regions of California. The immediate vicinity of San Joaquin features minimal topographic variation, with the land maintaining a consistent flatness that was ideal for the agricultural development that has dominated the region's economy. This flatness results from centuries of sediment deposition from the rivers flowing from the surrounding mountains, creating deep, fertile soil across the valley floor.

Water Features

The San Joaquin River, though not immediately adjacent to the town itself, influences the broader regional topography, having carved subtle channels and floodplains throughout its history. Numerous irrigation canals crisscross the landscape, evidence of human modification to support the intensive agriculture that dominates land use in the region.

Solar PV Potential

The topographical characteristics of the San Joaquin area make it exceptionally well-suited for large-scale solar photovoltaic development. The most promising areas for solar PV installations include: The flat, open agricultural lands surrounding San Joaquin offer ideal conditions for solar development. These areas feature minimal shading from natural features, consistent elevation, and abundant open space. The level terrain significantly reduces construction costs associated with grading and site preparation. The slightly elevated terraces and benchlands that occur at the valley margins, particularly toward the western side where the valley meets the foothills of the Diablo Range, present excellent opportunities. These areas often have slightly better drainage than the valley floor and may be less prone to occasional seasonal flooding while maintaining the favorable flat aspect needed for efficient solar array placement. Former agricultural lands that have experienced reduced productivity due to soil salinity issues—a common challenge in parts of the western San Joaquin Valley—represent particularly suitable locations for solar conversion. These areas offer large, contiguous parcels with existing access to transmission infrastructure developed for agricultural purposes. The gently sloping alluvial fans at the base of the western foothills provide another promising topographical setting. These areas receive minimal shading from the distant mountains, maintain good drainage characteristics, and often have slightly coarser soils that may be less valuable for agriculture but perfectly adequate for supporting solar infrastructure. The consistent flatness across vast expanses allows for the efficient arrangement of solar panels with minimal topographical constraints, maximizing energy capture throughout the day. Additionally, the region's limited vegetation and sparse tree cover minimize natural shading issues that might otherwise reduce solar efficiency. The area's topography also contributes to the atmospheric clarity experienced in the region, with limited fog compared to coastal areas and minimal atmospheric obstruction from surrounding landforms, enhancing solar radiation reception at ground level throughout much of the year.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
