Savanna, Illinois, located in the Northern Temperate Zone at coordinates 42.0934, -90.1407, presents a varied landscape for solar PV energy generation throughout the year. The location experiences significant seasonal fluctuations in solar energy production, which is typical for areas in this climate zone.

Seasonal Solar Performance

Summer stands out as the most productive season for solar energy in Savanna, with an impressive daily output of 6.41 kWh per kW of installed solar capacity. Spring follows as the second-best season, generating 5.10 kWh/day. Autumn sees a considerable drop in production to 3.42 kWh/day, while winter experiences the lowest output at 2.32 kWh/day.

These figures indicate that solar energy generation in Savanna is most effective from late spring through early fall. During this period, longer days and higher sun angles contribute to increased solar panel efficiency and energy production.

Optimal Panel Installation

For fixed panel installations in Savanna, the ideal tilt angle to maximize year-round solar production is 36 degrees facing south. This angle optimizes the panels' exposure to sunlight throughout the year, balancing the seasonal variations in sun position and intensity.

Environmental and Weather Considerations

Several factors in Savanna may impact solar energy production:

1. Snow accumulation in winter can temporarily reduce panel efficiency.
2. Cloudy days, particularly common in autumn and winter, may decrease solar output.
3. Potential shading from nearby trees or buildings could affect panel performance.

Mitigation Strategies

To address these challenges and enhance solar energy production, consider the following measures:

• Install panels at a steeper angle to promote snow shedding
• Use micro-inverters or power optimizers to minimize the impact of partial shading
• Implement regular cleaning and maintenance to remove debris and snow
• Consider tracking systems to maximize sun exposure throughout the day

While Savanna's location presents some challenges for year-round solar energy production, proper system design and maintenance can significantly improve overall performance and reliability.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

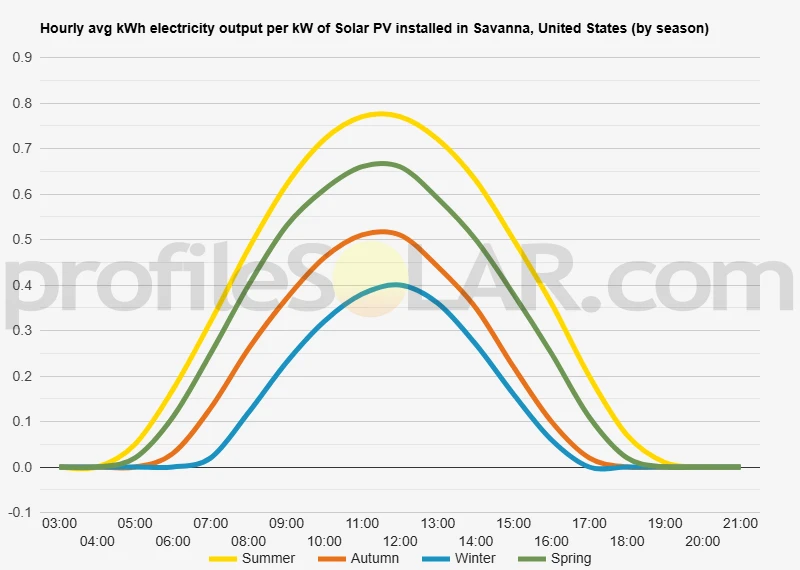

Solar output per kW of installed solar PV by season in Savanna

Seasonal solar PV output for Latitude: 42.0934, Longitude: -90.1407 (Savanna, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 36° South in Savanna, United States

To maximize your solar PV system's energy output in Savanna, United States (Lat/Long 42.0934, -90.1407) throughout the year, you should tilt your panels at an angle of 36° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Savanna, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Savanna, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 36° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
26° South in Summer	46° South in Autumn	56° South in Winter	35° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Savanna, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Savanna, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Savanna, United States

The area around Savanna, Illinois, located at 42.0934°N, 90.1407°W, is characterized by diverse topography typical of the Upper Mississippi River Valley. This region features a mix of rolling hills, bluffs, and flat river valleys, creating a picturesque landscape that transitions between the Driftless Area to the north and the more gently rolling prairies to the south. Savanna itself sits on the eastern bank of the Mississippi River, with the land rising sharply from the river's edge to form steep bluffs. These bluffs, part of the Mississippi Palisades, provide dramatic views of the river and surrounding countryside. As you move away from the river, the terrain becomes more varied, with a series of ridges and valleys carved out by ancient glaciers and subsequent erosion. To the east of Savanna, the land gradually flattens out into gently rolling farmland, interspersed with small woodlots and streams. This area is part of the Rock River Hill Country, characterized by its mix of agriculture and natural areas. The topography here is less dramatic than along the Mississippi, but still features enough variation to create a diverse landscape.

Potential for Large-Scale Solar PV

When considering areas nearby that would be most suited to large-scale solar PV installations, several factors come into play. The ideal locations would have relatively flat terrain, good sun exposure, and proximity to existing infrastructure. The farmland to the east and southeast of Savanna presents the most promising opportunities for solar development. These areas offer expansive, open spaces with minimal shading from trees or buildings. The gently rolling terrain in this region is generally suitable for solar panel installation, requiring minimal grading or earth-moving. Areas to avoid would include the steep bluffs along the Mississippi River, which are not only challenging for construction but also ecologically sensitive. Similarly, heavily forested areas or land with significant slopes would be less suitable due to shading issues and increased installation costs. It's worth noting that while the region around Savanna receives ample sunlight for solar power generation, developers would need to carefully consider factors such as local zoning regulations, grid connection possibilities, and potential impacts on agricultural land use when selecting specific sites for large-scale solar projects.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
