Solar Energy Potential in Schertz, Texas

Schertz, Texas, located in the Northern Sub Tropics at coordinates 29.5522, -98.2697, offers a favorable environment for solar PV energy generation throughout the year. The location experiences strong seasonal variations in solar production that are worth understanding for anyone considering solar installation. Solar production reaches its peak during summer months, with an impressive 6.82kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 5.53kWh/day, while autumn delivers 5.15kWh/day. Winter shows the lowest output at 3.41kWh/day per kW installed, though this is still significant compared to many other locations in the United States.

Seasonal Considerations

The substantial difference between summer and winter production (nearly double) indicates that residents or businesses in Schertz would experience more abundant energy during the warmer months. This seasonal pattern aligns well with typical energy usage patterns in Texas, where summer cooling demands tend to be high. The strong spring and autumn performance also provides reliable energy during shoulder seasons. For a fixed panel installation at this location, the ideal angle to tilt panels to maximize total year-round production from solar PV is 26 degrees South. This specific angle has been calculated to optimize annual energy harvest based on the location's latitude and seasonal solar patterns.

Environmental Factors and Mitigation Strategies

Several environmental factors in Schertz can affect solar production:

• Occasional severe storms and hail events typical of Central Texas can potentially damage solar installations if not properly protected.
• Summer dust and pollen accumulation can reduce panel efficiency by creating a film that blocks sunlight.
• Brief periods of morning fog in certain seasons can delay peak production times.

To mitigate these challenges, solar installations in Schertz should include hail-resistant panels with appropriate certifications, regular cleaning schedules (especially during pollen season), and slightly elevated mounting systems to prevent dust accumulation. Additionally, choosing micro-inverters or power optimizers can help minimize production losses during partial shading events. Overall, Schertz offers excellent solar potential with its abundant sunshine, particularly from spring through fall. The relatively mild winters still provide meaningful production, making this location highly suitable for year-round solar energy generation despite some seasonal variation.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

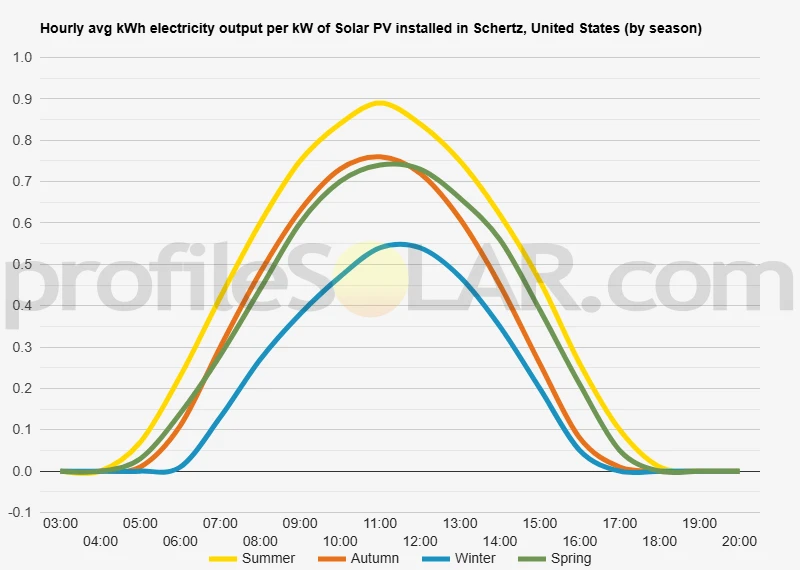

Solar output per kW of installed solar PV by season in Schertz

Seasonal solar PV output for Latitude: 29.5522, Longitude: -98.2697 (Schertz, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 26° South in Schertz, United States

To maximize your solar PV system's energy output in Schertz, United States (Lat/Long 29.5522, -98.2697) throughout the year, you should tilt your panels at an angle of 26° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Schertz, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Schertz, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 26° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
14° South in Summer	34° South in Autumn	45° South in Winter	23° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Schertz, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Schertz, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Schertz, United States

The area around Schertz, Texas is characterized by gently rolling terrain typical of the transition zone between the Texas Hill Country to the west and the flatter coastal plains to the east. Schertz sits at an elevation of approximately 700 feet (213 meters) above sea level, with the landscape gradually rising toward the northwest and descending toward the southeast.

Topographical Features

The topography of Schertz and its surrounding areas is largely defined by its position in the Balcones Escarpment region. This geological feature forms a boundary between the Edwards Plateau to the northwest and the Gulf Coastal Plain to the southeast. The landscape includes shallow valleys carved by waterways such as Cibolo Creek, which runs through the eastern portion of Schertz. The terrain consists primarily of limestone bedrock overlain with clay and loam soils. Vegetation includes a mix of oak and juniper woodlands, mesquite, and grasslands, with denser tree coverage along creek beds and in protected areas. The relatively flat to gently undulating landscape has been partially developed for residential, commercial, and agricultural uses.

Solar PV Potential Areas

For large-scale solar photovoltaic installations, several areas near Schertz offer favorable topographical conditions: The eastern and southeastern portions of Guadalupe County feature relatively flat terrain with fewer obstructions from hills or dense vegetation. These areas provide consistent elevation profiles that minimize installation complexities and reduce shading concerns. Areas along Interstate 10 east of Schertz toward Seguin present expansive, open spaces with minimal slope. The gently rolling farmland in this region offers large contiguous parcels that could accommodate utility-scale solar developments. The southern portions of Comal County and northern sections of Bexar County contain several plateaus and flat-topped hills that receive minimal shading from surrounding terrain. These elevated areas benefit from unobstructed sun exposure throughout the day. Land northeast of Schertz toward New Braunfels includes agricultural areas with favorable south-facing gentle slopes. These gradual inclines can actually enhance solar collection efficiency compared to perfectly flat terrain.

Topographical Considerations

When evaluating specific sites for solar development near Schertz, several topographical factors merit consideration. The limestone substrate provides stable foundation conditions for mounting systems, though some areas may require additional site preparation due to shallow bedrock. Drainage patterns must be carefully assessed, particularly in areas closer to Cibolo Creek and its tributaries. Flash flooding can occur in low-lying areas during heavy rainfall events, making slightly elevated terrain more suitable for infrastructure development. The relatively modest elevation changes throughout the region generally do not present significant challenges for construction or maintenance access. However, microclimate variations can exist due to subtle topographical differences, affecting factors like morning fog duration in valley areas versus higher ground. The land surrounding Schertz combines favorable topographical characteristics with proximity to existing electrical infrastructure and growing energy markets in the San Antonio metropolitan area, making it a potentially attractive region for solar energy development.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.
