Sheboygan, Wisconsin presents a moderately challenging location for year-round solar energy generation, with significant seasonal variation in electricity production from solar panels.

Seasonal Solar Performance

The solar energy output at this Northern Temperate Zone location varies dramatically throughout the year. Summer provides the highest electricity generation at 6.32 kWh per day per kilowatt of installed solar capacity, making it the peak season for solar production. Spring follows as the second-best performing season with 5.14 kWh per day per kilowatt, offering strong solar generation as daylight hours increase and weather conditions improve. Autumn sees a notable decline in solar output, dropping to 3.06 kWh per day per kilowatt as the region transitions toward winter. Winter presents the most challenging conditions for solar generation, with output falling to just 1.66 kWh per day per kilowatt of installed capacity.

Optimal Panel Configuration

For maximum year-round solar production at this location, solar panels should be installed at a fixed tilt angle of 37 degrees facing south. This angle has been calculated to optimize total annual electricity generation by accounting for the sun's changing position throughout the year and weighting the angles based on actual solar irradiance data.

Environmental and Weather Challenges

Several significant local factors can impede solar production in Sheboygan, Wisconsin:

• Heavy snow accumulation during winter months can completely block solar panels
• Ice formation can reduce panel efficiency and create safety hazards
• Lake Michigan's proximity creates frequent cloud cover and lake-effect weather patterns
• High humidity levels can reduce solar irradiance
• Strong winds from the lake can damage improperly secured installations

Preventative Installation Measures

To maximize solar energy production despite these challenges, several installation strategies should be implemented: The steeper 37-degree tilt angle naturally helps shed snow and ice more effectively than flatter installations. Installing panels with adequate spacing between rows prevents snow buildup from shading adjacent panels. Ground-mounted systems should be elevated sufficiently to account for expected snow depths. Wind-resistant mounting systems are essential given the location's exposure to strong lake winds. All hardware should be rated for the local wind loads, and installations should follow manufacturer specifications for high-wind areas. Regular maintenance access should be planned into the system design, allowing for safe snow removal when necessary. Some installers recommend heating elements or snow guards for critical installations, though the cost-benefit analysis varies depending on system size and energy needs. Panel selection should prioritize models with strong low-light performance to maximize output during the frequent overcast conditions typical of the Great Lakes region.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

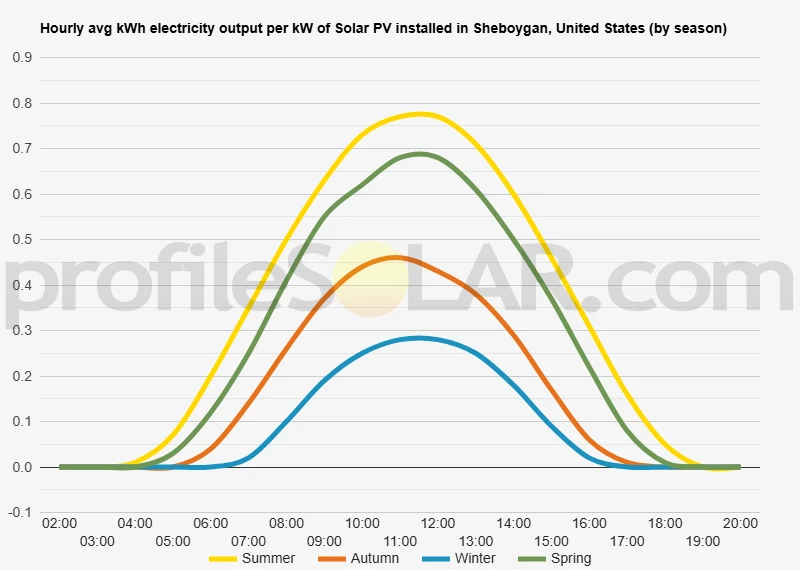

Solar output per kW of installed solar PV by season in Sheboygan

Seasonal solar PV output for Latitude: 43.8152, Longitude: -87.7689 (Sheboygan, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 37° South in Sheboygan, United States

To maximize your solar PV system's energy output in Sheboygan, United States (Lat/Long 43.8152, -87.7689) throughout the year, you should tilt your panels at an angle of 37° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Sheboygan, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Sheboygan, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 37° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
28° South in Summer	48° South in Autumn	58° South in Winter	36° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Sheboygan, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Sheboygan, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Sheboygan, United States

Topography Around Sheboygan

The landscape surrounding Sheboygan, Wisconsin presents a relatively gentle and manageable terrain that reflects the broader characteristics of the Great Lakes region. This area sits within the glaciated plains of southeastern Wisconsin, where ancient ice sheets carved out a predominantly flat to gently rolling topography. The city itself rests at a modest elevation along the western shore of Lake Michigan, with the land gradually rising as it moves inland from the lakeshore. The immediate vicinity features low hills and shallow valleys that were shaped by glacial activity thousands of years ago. These undulations in the landscape are generally subtle, creating a terrain that rises and falls in gentle waves rather than steep inclines. Agricultural fields dominate much of the surrounding countryside, taking advantage of the fertile soils left behind by retreating glaciers. The Sheboygan River winds through the area, creating some minor variations in elevation as it approaches Lake Michigan, but these changes are typically gradual rather than dramatic. Moving westward from the lake, the terrain becomes slightly more varied with rolling farmland and scattered woodlots. The glacial legacy is evident in the presence of moraines and drumlins that create modest ridges and depressions across the landscape. Despite these features, the overall character remains one of gentle topography that poses few significant obstacles to development or land use.

Optimal Areas for Large-Scale Solar Development

The agricultural lands stretching west and southwest of Sheboygan present the most promising opportunities for large-scale solar photovoltaic installations. These areas benefit from extensive open spaces that are already cleared of trees and other obstructions that could create shading issues. The gently sloping farmland in these directions offers ideal conditions for solar arrays, as the modest inclines can actually enhance panel positioning when properly oriented. The rolling terrain west of the city provides particular advantages for solar development. The gentle south-facing slopes common in this area naturally complement optimal panel positioning for maximum energy capture throughout the day. These agricultural zones also tend to have fewer residential developments and urban infrastructure that might complicate large-scale installations. Areas to the northwest and southwest of Sheboygan show especially strong potential due to their combination of open agricultural land and favorable topographic conditions. The terrain in these directions maintains the gentle characteristics ideal for solar farms while offering substantial contiguous parcels of land that could accommodate utility-scale projects. The existing agricultural use of these lands also means they are already served by rural road networks that could support construction and maintenance activities. The relatively flat to gently rolling nature of the surrounding countryside minimizes the need for extensive site preparation or grading work that might be required in more mountainous regions. This topographic advantage, combined with the abundance of open agricultural land, creates favorable conditions for solar development throughout much of the area surrounding Sheboygan.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
