Chillicothe, Ohio shows moderate potential for year-round solar energy generation, though with significant seasonal variations typical of its Northern Temperate Zone location. The solar output data reveals a clear pattern of strong summer performance followed by dramatically reduced winter production.

Seasonal Solar Performance

Summer represents the peak solar generation period in Chillicothe, producing 6.16 kWh per day per kW of installed solar capacity. This high output makes summer the most productive season for solar energy harvesting. Spring follows as the second-best season with 5.45 kWh per day per kW, offering nearly as much solar potential as summer months. Autumn shows a notable decline to 3.61 kWh per day per kW, while winter presents the most challenging conditions with only 1.98 kWh per day per kW. This winter figure represents less than one-third of summer production, highlighting the seasonal challenges faced by solar installations in this region. For optimal year-round energy capture, fixed solar panels in Chillicothe should be tilted at 34 degrees facing south. This angle maximizes total annual production by balancing the sun's varying seasonal positions throughout the year.

Environmental and Weather Challenges

Several local factors in Chillicothe can significantly impact solar energy production. Ohio's climate presents multiple challenges that solar installers must address for optimal performance. Snow accumulation during winter months poses a major concern, as it can completely block solar panels and eliminate energy production for extended periods. The region's frequent cloud cover throughout the year, particularly during autumn and winter, reduces the amount of direct sunlight reaching solar panels. Ice formation on panels during winter freeze-thaw cycles can damage equipment and create safety hazards. Additionally, the high humidity levels common in Ohio can lead to increased soiling of panels from dust, pollen, and organic matter, reducing their efficiency over time.

Preventative Installation Measures

Several installation strategies can help maximize solar production despite these challenges:

• Install panels at steeper angles (40-45 degrees) to promote natural snow shedding, though this may slightly reduce overall annual output
• Use anti-reflective coatings and hydrophobic treatments to minimize ice formation and improve water runoff
• Implement regular cleaning schedules, particularly during high-pollen seasons in spring and summer
• Choose high-quality panels with strong warranties that can withstand freeze-thaw cycles and temperature fluctuations
• Install monitoring systems to quickly identify performance issues caused by weather-related obstructions

Proper system design should also include adequate spacing between panel rows to prevent shading when snow slides off upper panels. Ground-mounted systems may offer advantages over rooftop installations by allowing easier access for snow removal and maintenance, though this depends on specific site conditions and local regulations.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

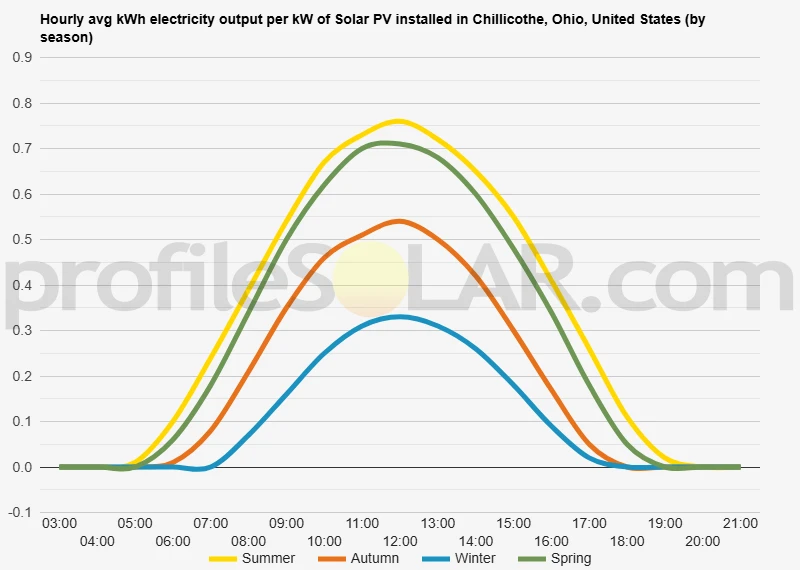

Solar output per kW of installed solar PV by season in Chillicothe, Ohio

Seasonal solar PV output for Latitude: 39.338, Longitude: -82.986 (Chillicothe, Ohio, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 34° South in Chillicothe, Ohio, United States

To maximize your solar PV system's energy output in Chillicothe, Ohio, United States (Lat/Long 39.338, -82.986) throughout the year, you should tilt your panels at an angle of 34° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Chillicothe, Ohio, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Chillicothe, Ohio, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 34° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
23° South in Summer	43° South in Autumn	54° South in Winter	32° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Chillicothe, Ohio, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Chillicothe, Ohio, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Chillicothe, Ohio, United States

Topographical Features Around Chillicothe

Chillicothe sits in the scenic Scioto River Valley of south-central Ohio, where the landscape is characterized by gently rolling hills and fertile river bottomlands. The city itself rests at an elevation of approximately 640 feet above sea level, nestled between the Scioto River to the west and a series of low ridges that extend eastward into the Appalachian foothills. This region represents a transitional zone between Ohio's flatter western plains and the more rugged terrain that characterizes the southeastern portion of the state.

The Scioto River meanders through the area from north to south, creating a broad floodplain that has historically supported agriculture and settlement. East of the river, the terrain becomes progressively more varied, with ridges and valleys that are remnants of ancient geological processes. These hills typically rise 100 to 300 feet above the surrounding valleys, creating a moderately undulating landscape that offers both challenges and opportunities for development.

The underlying geology consists primarily of sedimentary rocks, including sandstone and shale formations that weather to create relatively fertile soils in the valley areas. The region's topography has been further shaped by glacial activity, though Chillicothe lies near the southern limit of glacial influence, resulting in a landscape that combines both glaciated and unglaciated characteristics.

Optimal Areas for Large-Scale Solar Development

The most promising locations for large-scale solar photovoltaic installations around Chillicothe would be the relatively flat to gently sloping agricultural lands found primarily west and northwest of the city. These areas benefit from the broad Scioto River valley's expansive open spaces, where centuries of farming have maintained clear sightlines and minimal tree coverage. The gentle topography in these locations requires minimal grading and site preparation, making development more cost-effective while providing excellent exposure to solar radiation throughout the day.

South-facing slopes on the eastern hills present another viable option for solar development, particularly those with gradients between 10 and 20 degrees. These naturally tilted surfaces can optimize solar panel positioning without requiring complex mounting systems, though developers would need to carefully evaluate soil stability and access routes in these more elevated locations. The key advantage of hillside installations is the potential for enhanced solar exposure during morning and afternoon periods.

Agricultural fields on the higher plateau areas east of the immediate river valley also offer substantial potential, provided they maintain relatively level terrain and good road access. These elevated locations often experience fewer issues with morning fog and atmospheric moisture that can sometimes affect lower-lying areas near the river. The existing rural road network in these farming regions typically provides adequate infrastructure for construction and maintenance access.

Areas to avoid would include the steeper hillsides with gradients exceeding 25 degrees, heavily forested ridges that would require extensive clearing, and the immediate floodplain zones near the Scioto River where periodic flooding and wetland regulations could complicate development. The most practical approach would focus on the transitional zones between the river valley and the eastern hills, where the land remains relatively level but sits above potential flood concerns.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
