South Elgin, Illinois, located in the Northern Temperate Zone, presents a mixed opportunity for solar energy generation throughout the year. The location's potential for solar PV production varies significantly across seasons, with notable peaks and troughs in energy output.

Seasonal Solar Performance

Summer stands out as the most productive season, with an impressive 6.28 kWh per day for each kilowatt of installed solar capacity. This high output is due to longer daylight hours and the sun's higher position in the sky. Spring follows as the second-best season, generating 5.34 kWh per day. This period offers a good balance of sunlight and moderate temperatures, making it an excellent time for solar energy production. Autumn sees a considerable drop in output, with 3.45 kWh per day. As days grow shorter and the sun's angle decreases, energy production begins to decline. Winter presents the biggest challenge, with only 2.41 kWh per day. Shorter days, lower sun angles, and potential snow cover contribute to this reduced output.

Optimizing Solar Installation

To maximize year-round solar production in South Elgin, panels should be installed at a 37-degree tilt angle facing south. This optimal angle helps capture the most sunlight throughout the year, balancing the varying sun positions across seasons.

Environmental Considerations

While South Elgin's location is generally favorable for solar energy, there are some environmental factors to consider: 1. Snow accumulation in winter can significantly reduce panel efficiency. 2. Cloudy days, particularly common in late autumn and winter, can impact production. To mitigate these issues, consider the following preventative measures: • Install panels at a steeper angle to encourage snow sliding off • Use high-efficiency panels that perform better in low-light conditions • Implement regular cleaning and maintenance, especially after snowfall

Conclusion

Overall, South Elgin's location offers good potential for solar energy generation, particularly from spring through autumn. While winter presents challenges, proper installation techniques and maintenance can help maximize year-round energy production. The significant variation between seasons emphasizes the importance of a well-designed system to ensure consistent energy supply throughout the year.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

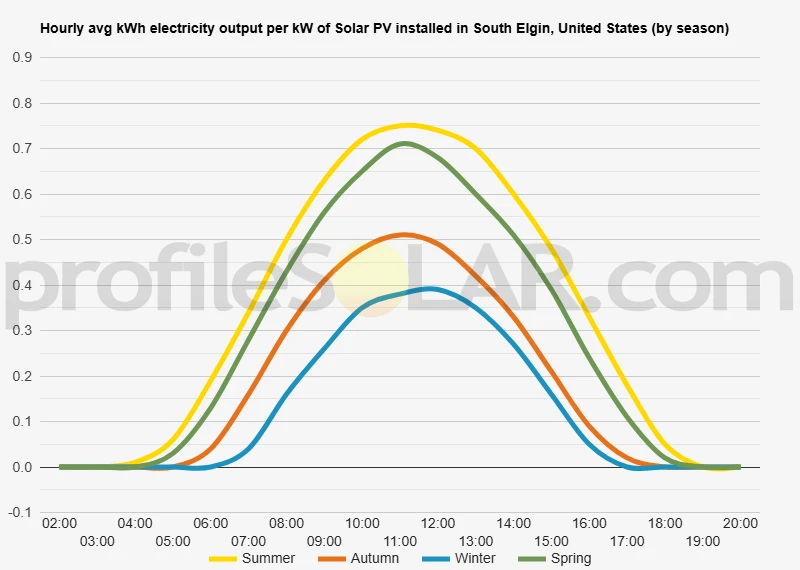

Solar output per kW of installed solar PV by season in South Elgin

Seasonal solar PV output for Latitude: 41.9985, Longitude: -88.2941 (South Elgin, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 37° South in South Elgin, United States

To maximize your solar PV system's energy output in South Elgin, United States (Lat/Long 41.9985, -88.2941) throughout the year, you should tilt your panels at an angle of 37° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for South Elgin, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in South Elgin, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 37° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
26° South in Summer	46° South in Autumn	56° South in Winter	35° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in South Elgin, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in South Elgin, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around South Elgin, United States

The topography around South Elgin, United States, located at approximately 41.9985 degrees north latitude and 88.2941 degrees west longitude, is characterized by gently rolling terrain typical of the Midwestern United States. This area is situated in the Fox River Valley, which has been shaped by glacial activity during the last ice age. The landscape surrounding South Elgin features a mix of low hills, shallow valleys, and relatively flat areas. The Fox River, a major geographical feature, flows through the region, creating a natural corridor that has influenced the area's development. The river valley is flanked by slightly elevated areas, with the terrain gradually rising as you move away from the water. Elevations in the vicinity of South Elgin generally range from about 700 to 800 feet above sea level. The changes in elevation are typically gradual, creating a softly undulating landscape rather than dramatic hills or steep slopes. This gentle topography is a result of glacial deposits and subsequent erosion over thousands of years.

Potential for Large-Scale Solar PV

When considering areas nearby that would be most suited to large-scale solar PV installations, several factors come into play. The ideal locations for solar farms in this region would likely be found in the more open, flat areas away from the immediate vicinity of the Fox River. The slightly elevated areas to the west and east of South Elgin could potentially offer good sites for solar installations. These areas often have fewer trees and structures that might obstruct sunlight, and their gentle slopes can provide good exposure to the sun throughout the day. Additionally, former agricultural lands or unused open spaces in the surrounding Kane and DuPage counties might be suitable for solar development. It's important to note that while the topography is generally favorable for solar PV, other factors such as local zoning regulations, proximity to electrical infrastructure, and environmental considerations would also play crucial roles in determining the most suitable locations for large-scale solar projects in the area around South Elgin.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
