South Plainfield, New Jersey, located in the Northern Temperate Zone, offers varying solar energy potential throughout the year. This suburban location experiences distinct seasonal changes that directly impact solar PV electricity production.

Seasonal Solar Performance

Solar panels in South Plainfield perform strongest during summer months, generating approximately 6.03 kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 5.43 kWh/day. Production decreases significantly in autumn (3.48 kWh/day) and reaches its lowest point during winter (2.12 kWh/day).

This seasonal pattern creates a substantial difference between summer and winter production, with summer panels generating nearly three times the electricity of winter months. This variation is typical for locations in the northern United States.

Optimal Panel Installation

For fixed solar panel installations in South Plainfield, the ideal tilt angle is 35 degrees facing South. This specific angle maximizes year-round energy production by optimizing the panels' exposure to the sun's changing position throughout the seasons.

Environmental Considerations

Several environmental factors may affect solar production in South Plainfield:

• Snow accumulation during winter months can temporarily reduce production until panels clear
• Tree coverage and surrounding buildings may create shading issues in this suburban setting
• New Jersey's occasional severe weather, including thunderstorms and hurricanes, could impact system integrity

Preventative Measures

To maximize solar production in South Plainfield, consider installing panels with sufficient elevation to prevent snow buildup. Conducting a thorough shade analysis before installation can identify potential obstructions from trees or buildings. Additionally, using microinverters or power optimizers helps minimize production losses when partial shading occurs.

Installing panels with durable mounting systems rated for local wind conditions will protect against storm damage. Regular cleaning and maintenance, especially after autumn leaf fall, will ensure optimal performance year-round.

Despite the seasonal variations, South Plainfield's location still provides sufficient solar resources to make photovoltaic systems economically viable, particularly when properly optimized for local conditions.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

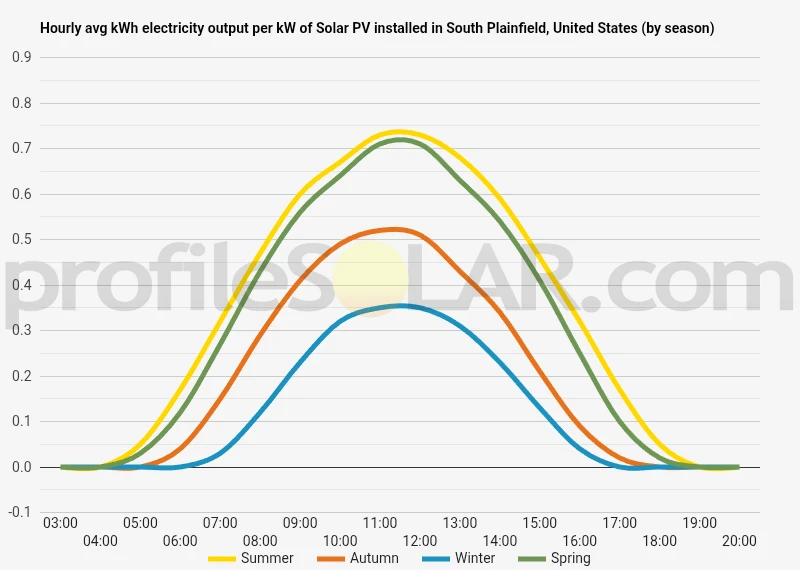

Solar output per kW of installed solar PV by season in South Plainfield

Seasonal solar PV output for Latitude: 40.5837, Longitude: -74.4136 (South Plainfield, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 35° South in South Plainfield, United States

To maximize your solar PV system's energy output in South Plainfield, United States (Lat/Long 40.5837, -74.4136) throughout the year, you should tilt your panels at an angle of 35° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for South Plainfield, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in South Plainfield, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 35° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
24° South in Summer	45° South in Autumn	56° South in Winter	33° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in South Plainfield, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in South Plainfield, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around South Plainfield, United States

The landscape surrounding South Plainfield, New Jersey presents a mixture of gently rolling terrain and relatively flat areas characteristic of the Piedmont physiographic province of the northeastern United States. Located in Middlesex County, South Plainfield sits at an elevation of approximately 36 meters (118 feet) above sea level, with subtle variations in the surrounding topography. To the north and northwest of South Plainfield lie the Watchung Mountains, a series of three ridges that form a horseshoe-shaped feature across the landscape. These ridges, while modest in height compared to major mountain ranges, represent the most significant topographical features in the region, rising to heights of about 150-200 meters (500-650 feet). The Watchung Mountains are composed primarily of basaltic rock resulting from ancient volcanic activity, creating more resistant formations that have withstood erosion better than surrounding materials.

The Plainfield Region

As suggested by its name, South Plainfield belongs to a broader "plain" area. The central portion of the region consists of relatively level terrain with gentle slopes. This area forms part of the Newark Basin, a geological formation characterized by sedimentary rocks and soils. The flatlands extend eastward toward the Raritan Bay and Atlantic Ocean. The southeastern portions of the region gradually transition into coastal lowlands as one approaches the Raritan River and its associated bay. These areas feature even flatter terrain with elevations decreasing to near sea level. Wetland areas become more common in this direction, particularly along waterways.

Waterways and Their Impact

Several streams and small rivers traverse the South Plainfield area, including Cedar Brook and Bound Brook, tributaries of the Raritan River system. These waterways have carved subtle valleys into the landscape over time, creating localized variations in the topography. The Raritan River itself, flowing east toward Raritan Bay, has formed a broader valley that influences the regional topography.

Potential for Solar PV Development

When considering areas near South Plainfield for large-scale solar photovoltaic (PV) installations, several topographical factors become important. The most suitable locations would generally include: The flatter areas to the east and southeast of South Plainfield offer promising conditions for solar development. These level terrains require minimal grading and preparation, reducing installation costs and environmental disruption. The open character of these areas also means fewer natural obstacles that would create shading issues. Former industrial sites and brownfields in the region present opportunities for solar development without displacing natural habitats or agricultural land. Middlesex County contains numerous such sites, some of which have already been repurposed for solar energy generation. The gently sloping southern faces of the Watchung Mountains, while requiring more engineering for installation, could potentially offer advantageous angles for solar collection. These areas receive consistent sun exposure due to their orientation and elevation above potential shading obstacles. Areas adjacent to existing electrical infrastructure would reduce interconnection costs. The region has substantial electrical transmission infrastructure due to its proximity to major population centers, making grid connection more feasible in many locations.

Topographical Limitations

Certain topographical features near South Plainfield present challenges for large-scale solar development. The wetland areas associated with the Raritan River system face regulatory restrictions and environmental sensitivities that make them unsuitable for development. Similarly, the more steeply sloped portions of the Watchung Mountains would require excessive grading and present erosion concerns if developed for solar installations. The region's moderately dense suburban development pattern also limits available contiguous land parcels of sufficient size for truly large-scale installations. This has led to greater interest in medium-sized solar developments on available commercial and industrial properties rather than utility-scale projects in the immediate vicinity of South Plainfield. The overall topographical character of the South Plainfield region—predominantly flat to gently rolling terrain—generally presents favorable conditions for solar PV development, with the primary constraints being land availability rather than topographical limitations.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
