Solar Energy Potential in Southlake, Texas

Southlake, Texas, located in the Northern Sub Tropics, offers a promising environment for solar energy generation. With its geographical position at latitude 32.9412 and longitude -97.1342, this location experiences varying levels of solar potential throughout the year.

The seasonal breakdown of solar energy production reveals a pattern typical of its subtropical climate. Summer stands out as the most productive season, with an impressive 7.00 kWh per day for each kilowatt of installed solar capacity. Spring follows closely with 5.43 kWh/day, while autumn yields a respectable 5.05 kWh/day. Winter, as expected, sees the lowest output at 3.31 kWh/day, but still contributes significantly to the overall annual production.

Optimal Panel Positioning

For those considering a fixed panel installation in Southlake, the ideal tilt angle to maximize year-round solar production is 29 degrees facing south. This angle has been carefully calculated to account for the location's latitude and the Earth's elliptical orbit, ensuring optimal exposure to sunlight throughout the year.

Peak Production Periods

The most ideal times for solar energy generation in Southlake are during the long, sunny days of summer, typically from June through August. Spring and early autumn also offer excellent conditions for solar production. While winter months see reduced output, the region's relatively mild winters still allow for significant energy generation compared to more northern locations.

Environmental Considerations

Southlake's climate presents a few challenges to solar energy production, but these are generally manageable with proper planning and maintenance:

• Occasional severe thunderstorms and hail: Install impact-resistant panels and consider additional protective measures.
• High summer temperatures: Choose heat-tolerant panels and ensure proper ventilation to maintain efficiency.

Regular cleaning to remove dust and pollen, particularly during spring, can help maintain optimal panel performance. Additionally, a professional assessment of nearby trees or structures that might cast shadows on the panels is recommended to maximize exposure to sunlight throughout the day.

Overall, Southlake's climate and geographical position make it a highly suitable location for solar energy production, with the potential for significant energy generation throughout the year.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

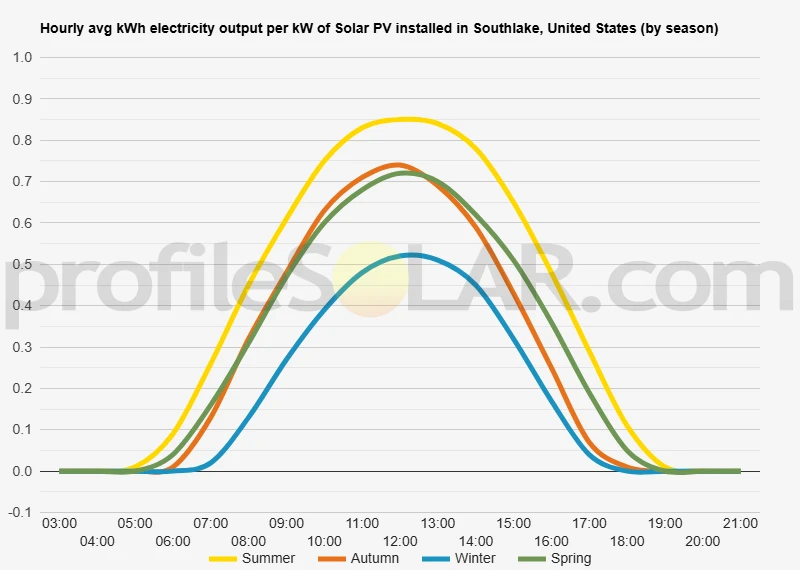

Solar output per kW of installed solar PV by season in Southlake

Seasonal solar PV output for Latitude: 32.9412, Longitude: -97.1342 (Southlake, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 29° South in Southlake, United States

To maximize your solar PV system's energy output in Southlake, United States (Lat/Long 32.9412, -97.1342) throughout the year, you should tilt your panels at an angle of 29° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Southlake, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Southlake, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 29° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
17° South in Summer	38° South in Autumn	48° South in Winter	27° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Southlake, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Southlake, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Southlake, United States

The topography around Southlake, Texas, is characterized by gently rolling hills and flat plains typical of the North Texas region. This area is part of the larger Cross Timbers ecoregion, which features a mix of prairie grasslands and scattered woodlands. The terrain is generally low-lying, with elevations ranging from about 500 to 700 feet above sea level. Southlake itself is situated on relatively level ground, with subtle variations in elevation throughout the city. To the west and northwest, the landscape becomes slightly more hilly as it approaches Grapevine Lake. This man-made reservoir adds some topographical diversity to the area, creating shorelines and small peninsulas. To the east and southeast of Southlake, the land flattens out even more as it transitions into the Dallas-Fort Worth metroplex. This flatter terrain is punctuated by occasional creeks and small waterways that have carved shallow valleys over time.

Potential for Large-Scale Solar PV

When considering areas nearby that would be most suited to large-scale solar PV installations, several factors come into play. The ideal locations would have ample open space, relatively flat terrain, and good sun exposure. The rural areas to the north and northwest of Southlake, extending towards Denton County, offer promising potential for solar development. These regions have more expansive tracts of open land that are less densely populated, providing the space needed for large solar arrays. Additionally, the areas east and southeast of Southlake, as they stretch towards Dallas and Fort Worth, could be suitable for solar PV installations. The flatter terrain in these directions would require less land preparation and could potentially accommodate larger solar farms. It's important to note that while the topography around Southlake is generally favorable for solar energy, other factors such as local zoning regulations, proximity to electrical infrastructure, and environmental considerations would also play crucial roles in determining the most suitable locations for large-scale solar PV projects.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
