Solar PV Analysis of Streamwood, United States
Streamwood, Illinois, located in the Northern Temperate Zone, presents a mixed opportunity for solar energy generation throughout the year. The location's potential for solar power production varies significantly across seasons, with notable peaks and troughs in energy output.
Seasonal Solar Performance
Summer stands out as the most productive season for solar energy in Streamwood, with an impressive daily output of 6.30 kWh per kW of installed solar capacity. Spring follows closely behind, generating 5.32 kWh per day. However, the colder months see a substantial drop in production, with autumn yielding 3.35 kWh per day and winter plummeting to just 2.29 kWh daily.
This stark seasonal contrast highlights the importance of maximizing solar collection during the warmer months. The long, sunny days of summer and spring provide ideal conditions for solar energy generation, making these seasons crucial for offsetting the reduced output during autumn and winter.
Optimal Panel Installation
To achieve the best year-round performance, solar panels in Streamwood should be installed at a tilt angle of 36 degrees facing south. This angle is calculated to capture the maximum amount of sunlight throughout the year, balancing the varying sun positions across seasons.
Environmental Considerations
While Streamwood's location is generally favorable for solar energy, there are some environmental factors to consider:
- Snowfall: Winter in Illinois can bring significant snowfall, which may temporarily cover solar panels and reduce efficiency. Installing panels at the optimal angle can help snow slide off more easily.
- Cloud cover: The region experiences cloudy days, particularly in winter, which can impact solar production. Using high-efficiency panels can help mitigate this issue.
To address these challenges, consider implementing snow removal systems and choosing panels with anti-soiling coatings. Additionally, a robust monitoring system can help identify and address any performance issues promptly.
In conclusion, while Streamwood's solar potential varies greatly throughout the year, proper installation and maintenance can ensure a reliable source of renewable energy, particularly during the productive summer and spring months.
Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in the United States by location

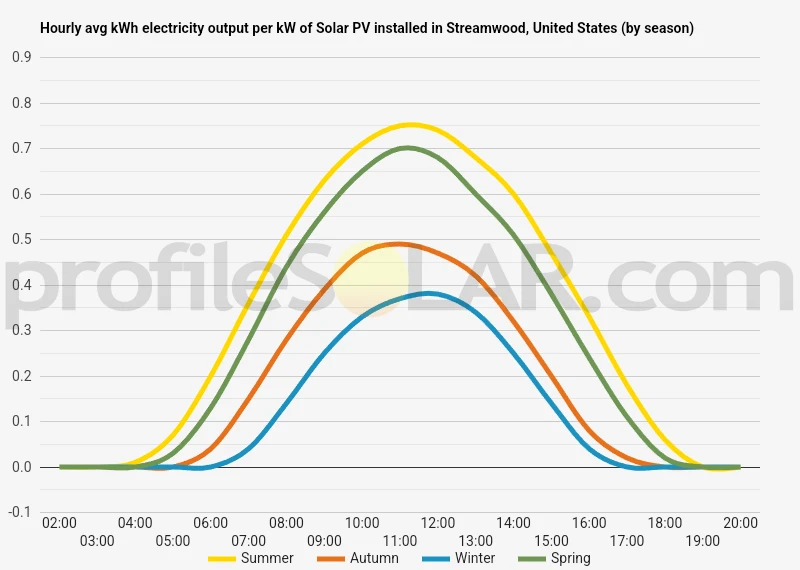

Solar output per kW of installed solar PV by season in Streamwood
Seasonal solar PV output for Latitude: 42.0221, Longitude: -88.1705 (Streamwood, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 36° South in Streamwood, United States
To maximize your solar PV system's energy output in Streamwood, United States (Lat/Long 42.0221, -88.1705) throughout the year, you should tilt your panels at an angle of 36° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Streamwood, United States
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Streamwood, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 36° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 26° South in Summer | 46° South in Autumn | 56° South in Winter | 35° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Streamwood, United States
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Streamwood, United States.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Streamwood, United States
The topography around Streamwood, Illinois, in the United States is generally characterized by gently rolling terrain. This area is part of the broader Chicago metropolitan region and sits within the Prairie Peninsula, a landscape that was shaped by glacial activity during the last ice age.
The land in and around Streamwood is relatively flat to mildly undulating, with subtle changes in elevation. The average elevation is approximately 820 feet (250 meters) above sea level. The area features a mix of suburban developments, small woodlands, and open spaces, interspersed with streams and small ponds.
To the west and northwest of Streamwood, the terrain becomes slightly more varied as it transitions into the Fox River Valley. This area has some more pronounced hills and valleys, though still modest in scale. To the east, the land flattens out further as it approaches the Des Plaines River and the expansive Chicago metropolitan area.
Regarding areas suitable for large-scale solar PV (photovoltaic) installations, the relatively flat terrain in the region provides several potential options. The most suitable locations would likely be found in the more rural areas to the west and northwest of Streamwood. These areas often have larger tracts of open land that could accommodate sizeable solar arrays.
Ideal sites for solar PV would be gently sloping, south-facing fields that are not shaded by trees or buildings. Areas that are currently used for agriculture but are less productive might be particularly suitable. It's important to note that while the topography is generally favorable, other factors such as local zoning laws, grid connectivity, and environmental considerations would also play crucial roles in determining the feasibility of large-scale solar projects in this region.
Additionally, some of the more industrial or commercial zones on the outskirts of suburban areas could potentially be repurposed for solar energy production. These areas often have large, flat rooftops or parking lots that could be utilized for solar panel installation, though they would likely be on a smaller scale than rural ground-mounted systems.
United States solar PV Stats as a country
United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in United States?
Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.
Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
