Sycamore, Illinois presents a moderately favorable location for solar energy generation, though it experiences significant seasonal variation typical of the Northern Temperate Zone climate. The area receives its peak solar production during summer months, generating 6.25 kWh per day per kW of installed solar capacity, making this the most productive season for solar energy harvesting.

Seasonal Solar Performance

Spring emerges as the second-best season for solar generation at this location, producing 5.28 kWh per day per kW of installed capacity. This strong spring performance, combined with excellent summer output, means the warmer months from March through September offer the most reliable solar energy production. Autumn sees a notable decline in solar output, dropping to 3.39 kWh per day per kW of installed solar. Winter presents the most challenging conditions for solar generation, with output falling to just 2.36 kWh per day per kW of installed capacity - less than half of the peak summer production. For optimal year-round energy production at this Sycamore location, solar panels should be installed at a fixed tilt angle of 36 degrees facing south. This angle maximizes total annual solar output by accounting for the sun's varying elevation throughout the year and the Earth's elliptical orbit patterns.

Local Factors Affecting Solar Production

Several environmental and weather factors in the Sycamore area can significantly impact solar energy generation:

• Heavy snow accumulation during Illinois winters can block solar panels completely
• Ice formation creates similar blockage issues and poses safety risks for cleaning
• Frequent cloud cover during winter months reduces available sunlight
• High humidity levels can create haze that diminishes solar irradiance
• Severe thunderstorms may cause temporary shading and potential equipment damage

Preventative Installation Measures

Property owners can implement several strategies to maximize solar production despite these challenges. Installing panels at the recommended 36-degree tilt helps snow slide off naturally rather than accumulating on panel surfaces. This steep angle also improves ice shedding during winter thaw cycles. Choosing high-quality mounting systems with adequate structural support protects against severe weather damage while ensuring panels maintain optimal positioning. Regular maintenance scheduling becomes particularly important, with professional cleaning recommended after major snow events and storms. Installing microinverters or power optimizers rather than traditional string inverters helps minimize production losses when individual panels experience shading or snow coverage. This technology allows unaffected panels to continue generating electricity at full capacity even when others are temporarily blocked. The location's strong summer and spring solar potential makes Sycamore a viable choice for solar installation, provided owners understand the seasonal limitations and implement appropriate design and maintenance strategies to address local weather challenges.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

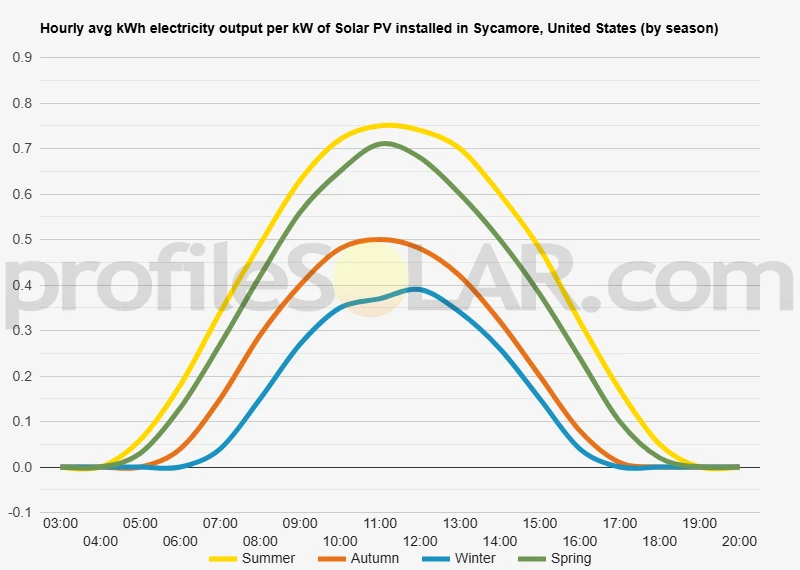

Solar output per kW of installed solar PV by season in Sycamore

Seasonal solar PV output for Latitude: 41.9977, Longitude: -88.6924 (Sycamore, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 36° South in Sycamore, United States

To maximize your solar PV system's energy output in Sycamore, United States (Lat/Long 41.9977, -88.6924) throughout the year, you should tilt your panels at an angle of 36° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Sycamore, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Sycamore, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 36° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
26° South in Summer	46° South in Autumn	56° South in Winter	35° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Sycamore, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Sycamore, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Sycamore, United States

Topographical Features Around Sycamore

The area surrounding Sycamore, Illinois sits within the relatively flat agricultural landscape characteristic of northern Illinois. This region forms part of the till plains that were shaped by glacial activity thousands of years ago, resulting in gently rolling terrain with minimal elevation changes. The topography consists primarily of broad, open farmland with occasional shallow valleys carved by small waterways and creeks.

The elevation around Sycamore typically ranges between 800 and 900 feet above sea level, with very gradual slopes that rarely exceed a few degrees. This creates an ideal foundation for large-scale development projects, as the terrain requires minimal grading or earthwork preparation. The landscape is dominated by agricultural fields that stretch for miles in every direction, broken only by farmsteads, small woodlots, and the occasional stream corridor.

Local waterways include the South Branch Kishwaukee River and several smaller tributaries that meander through the area, creating narrow bands of slightly lower elevation. These water features are typically accompanied by small strips of riparian vegetation, but the majority of the surrounding land remains open and relatively flat.

Optimal Areas for Large-Scale Solar Development

The expansive agricultural fields south and west of Sycamore present excellent opportunities for large-scale solar photovoltaic installations. These areas offer vast stretches of relatively flat, unobstructed land that would require minimal site preparation. The gentle topography means that solar arrays could be installed with consistent orientation and minimal shading issues between panel rows.

The farmland northwest of the city also provides suitable terrain for solar development, with large contiguous parcels that could accommodate utility-scale installations. These areas benefit from the same favorable topographical conditions while being positioned away from the more densely developed residential areas closer to the city center.

Areas to the east and northeast of Sycamore, while still relatively flat, tend to have slightly more residential development and smaller field sizes, which might make them less ideal for the largest solar installations. However, they could still accommodate medium-scale projects where land availability permits.

The minimal elevation changes throughout the region mean that most locations would not face significant challenges from terrain-related shading or complex mounting requirements. The open agricultural landscape also provides excellent access for construction equipment and maintenance vehicles, with an established network of farm roads and county highways serving the area.

Stream corridors and wetland areas, while limited in this region, would need to be avoided for environmental reasons, but these features occupy a relatively small percentage of the overall landscape. The predominant flat, open character of the terrain around Sycamore makes it exceptionally well-suited for large-scale solar development compared to more topographically complex regions.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
