Winfield, Missouri presents a moderately favorable location for year-round solar energy generation, though with significant seasonal variations typical of its Northern Temperate Zone climate.

Seasonal Solar Performance

The solar energy output at this location shows a clear seasonal pattern that reflects the area's continental climate. Summer produces the highest energy generation at 6.50 kWh per day per kW of installed solar capacity, making it the peak season for solar production. Spring follows as the second-best performing season with 5.30 kWh per day per kW, offering strong energy generation as daylight hours increase and weather conditions improve. Autumn sees a notable drop in production to 3.94 kWh per day per kW as the sun angle decreases and weather patterns shift. Winter presents the most challenging conditions for solar generation, producing only 2.37 kWh per day per kW of installed capacity - less than half of summer production levels.

Optimal Installation Configuration

For maximum year-round energy production at Winfield, Missouri, solar panels should be installed at a fixed tilt angle of 34 degrees facing south. This angle has been calculated to optimize total annual solar output by accounting for the sun's varying position throughout the year and weighting for the solar irradiance potential at this specific latitude.

Local Environmental Challenges

Several environmental and weather factors in the Winfield area can significantly impact solar panel performance and require consideration during installation:

• Severe Weather Events: Missouri experiences frequent thunderstorms, hail, high winds, and occasional tornadoes that can damage solar installations
• Snow and Ice Accumulation: Winter weather can cover panels with snow and ice, blocking sunlight and reducing energy production
• High Humidity and Temperature Fluctuations: The continental climate brings hot, humid summers and cold winters that can stress solar equipment
• Agricultural Dust and Pollen: The rural Missouri location means panels may accumulate dust, pollen, and agricultural debris

Preventative Installation Measures

To maximize solar energy production despite these challenges, several protective measures should be implemented during installation:

• Reinforced Mounting Systems: Use heavy-duty mounting hardware rated for high wind loads and potential hail impact
• Tempered Glass Panels: Select panels with reinforced glass designed to withstand hail and debris impact
• Proper Drainage Design: Ensure mounting systems allow snow and ice to slide off naturally and don't create ice dams
• Regular Maintenance Access: Design installations to allow safe cleaning and maintenance to remove dust, pollen, and debris
• Quality Inverters and Wiring: Use equipment rated for temperature extremes and high humidity conditions typical of Missouri's climate

Despite these environmental challenges, Winfield's location offers reasonable solar potential, particularly during the warmer months when energy demand for cooling is typically highest. The key to success lies in proper system design and regular maintenance to address the local climate conditions.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

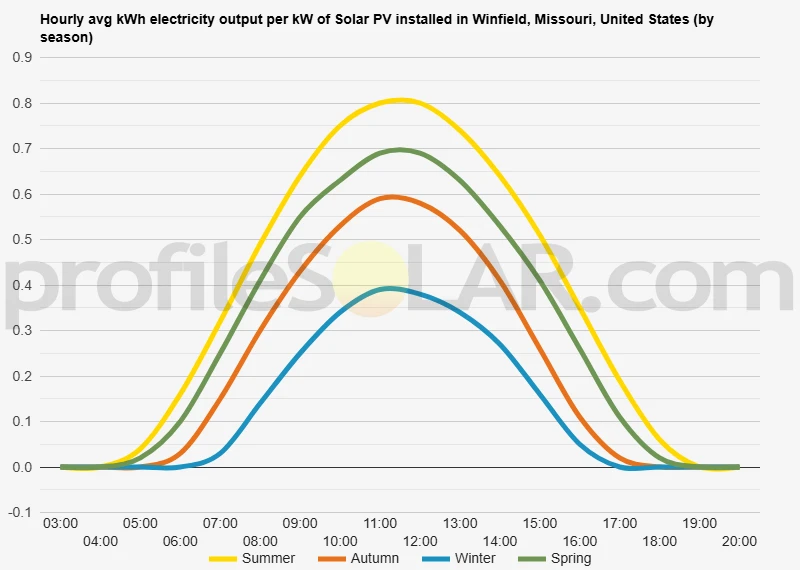

Solar output per kW of installed solar PV by season in Winfield, Missouri

Seasonal solar PV output for Latitude: 38.9973, Longitude: -90.7385 (Winfield, Missouri, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 34° South in Winfield, Missouri, United States

To maximize your solar PV system's energy output in Winfield, Missouri, United States (Lat/Long 38.9973, -90.7385) throughout the year, you should tilt your panels at an angle of 34° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Winfield, Missouri, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Winfield, Missouri, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 34° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
23° South in Summer	43° South in Autumn	54° South in Winter	32° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Winfield, Missouri, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Winfield, Missouri, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Winfield, Missouri, United States

Topographical Features Around Winfield

The area surrounding Winfield, Missouri sits within the gently rolling landscape characteristic of east-central Missouri. This region features predominantly flat to gently undulating terrain with modest elevation changes, making it part of the broader Mississippi River valley system. The topography consists mainly of agricultural plains interspersed with low hills and shallow valleys carved by centuries of water flow and glacial activity. The immediate vicinity around Winfield displays relatively stable elevation patterns, with most areas ranging from approximately 400 to 600 feet above sea level. The terrain slopes very gradually toward the Mississippi River corridor to the east, creating a natural drainage pattern that has shaped the local landscape over millennia. Small creeks and seasonal waterways have created minor depressions and ridgelines throughout the area, but these features are generally subtle and do not create dramatic elevation changes.

Soil and Ground Conditions

The underlying geology consists primarily of sedimentary deposits left by ancient river systems and glacial processes. These deposits have created relatively stable ground conditions with good drainage characteristics in most areas. The soil composition includes clay, silt, and sandy loam layers that provide adequate foundation support for large installations while maintaining reasonable permeability for water management. Agricultural use has dominated this landscape for generations, resulting in cleared, relatively flat parcels that have been regularly maintained and cultivated. This agricultural heritage means much of the surrounding countryside features open fields with minimal tree coverage, creating expansive areas with unobstructed sky access.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be the broad agricultural fields extending south and west of Winfield. These areas offer several advantages including minimal slope variation, excellent southern exposure, and existing infrastructure access via county roads and state highways. The agricultural plains in these directions provide large contiguous parcels that could accommodate substantial solar arrays without significant grading or terrain modification. Areas to the southwest toward the Cuivre River valley present particularly attractive conditions, as they combine flat topography with good drainage characteristics and proximity to existing electrical transmission infrastructure. The gentle southward-facing slopes in this region would naturally optimize panel positioning for maximum solar collection throughout the day. The eastern approaches toward the Mississippi River, while relatively flat, may present more challenges due to floodplain considerations and potential wetland restrictions. However, elevated areas within this eastern zone that remain outside flood-prone zones could still offer viable development opportunities. Agricultural fields extending northward from Winfield also present good potential, particularly those situated on the slightly elevated terrain that provides natural drainage away from seasonal water accumulation areas. These northern parcels benefit from stable soil conditions and typically feature minimal shading from existing structures or vegetation.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
