Martinsville, Indiana is a moderately suitable location for year-round solar energy generation, though it faces some significant seasonal challenges typical of the Northern Temperate Zone climate.

Seasonal Solar Performance

The solar energy output varies dramatically throughout the year at this location. Summer provides the strongest performance at 6.20 kWh per day per kW of installed solar capacity, making it the peak season for solar generation. Spring follows as the second-best season with 5.47 kWh per day per kW, offering nearly comparable performance to summer months. However, the location experiences substantial drops in solar production during colder months. Autumn generates only 3.68 kWh per day per kW, while winter plummets to just 2.16 kWh per day per kW - less than half of spring production and roughly one-third of summer output. For optimal year-round energy capture, solar panels should be installed at a fixed tilt angle of 34 degrees facing south. This angle maximizes total annual solar production by accounting for the sun's changing position throughout the seasons.

Local Factors Affecting Solar Production

Several environmental and weather factors in Martinsville can significantly impact solar energy generation:

• Snow accumulation: Winter snow can completely block solar panels, eliminating energy production until cleared
• Frequent cloud cover: The region experiences substantial cloudy periods, particularly during autumn and winter months
• Ice formation: Freezing rain and ice storms can coat panels and reduce efficiency
• Seasonal debris: Falling leaves in autumn and storm debris can obstruct panels
• High humidity: Can create haze and reduce solar irradiance reaching the panels

Preventative Measures for Better Performance

Several installation strategies can help maximize solar production despite these challenges:

• Steeper tilt angles: Installing panels at angles steeper than the optimal 34 degrees helps snow slide off naturally
• Quality mounting systems: Robust mounting prevents damage from ice loads and strong winds
• Regular maintenance schedule: Planned cleaning removes leaves, debris, and accumulated dirt
• Accessible panel placement: Positioning panels where they can be safely cleared of snow when necessary
• Micro-inverters or power optimizers: These systems minimize production losses when individual panels are partially shaded or blocked

Despite these seasonal challenges, Martinsville's strong summer and spring solar production can make solar installations economically viable, especially when proper installation techniques address the local environmental factors.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

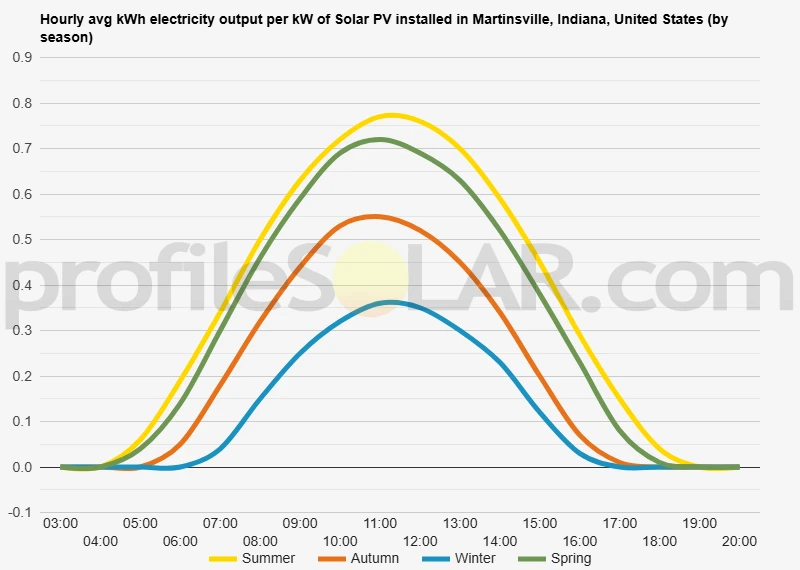

Solar output per kW of installed solar PV by season in Martinsville, Indiana

Seasonal solar PV output for Latitude: 39.4278, Longitude: -86.4283 (Martinsville, Indiana, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 34° South in Martinsville, Indiana, United States

To maximize your solar PV system's energy output in Martinsville, Indiana, United States (Lat/Long 39.4278, -86.4283) throughout the year, you should tilt your panels at an angle of 34° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Martinsville, Indiana, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Martinsville, Indiana, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 34° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
23° South in Summer	43° South in Autumn	54° South in Winter	32° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Martinsville, Indiana, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Martinsville, Indiana, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Martinsville, Indiana, United States

Topography Around Martinsville

Martinsville sits in the heart of Indiana's gently rolling countryside, characterized by relatively modest elevation changes and a landscape shaped by glacial activity thousands of years ago. The terrain around this central Indiana community features a mix of agricultural fields, wooded areas, and gentle hills that rarely exceed 200 feet in elevation difference from the surrounding valleys. The topography is part of the broader Till Plains region, where ancient glaciers deposited layers of fertile soil across what is now a predominantly rural landscape.

The area displays the classic characteristics of the Midwest's glaciated plains, with broad, sweeping contours rather than sharp ridges or steep slopes. Small creeks and streams meander through shallow valleys, creating a network of waterways that drain toward larger river systems. The elevation changes are gradual enough that most of the land remains suitable for agriculture, with corn and soybean fields dominating much of the surrounding countryside.

Wooded areas are scattered throughout the region, often following creek beds and property lines, but substantial open spaces remain between these forested patches. The overall terrain slopes very gently, with most areas experiencing grades of less than five percent, making the region relatively flat compared to the hillier terrain found in southern Indiana or the mountainous regions of neighboring states.

Areas Best Suited for Large-Scale Solar Development

The agricultural fields stretching in all directions from Martinsville represent the most promising locations for large-scale solar photovoltaic installations. These expansive open areas offer minimal shading from trees or structures, and the gentle topography requires little grading or earthwork to prepare sites for solar panel arrays. The relatively flat terrain reduces construction costs and allows for efficient panel placement and maintenance access.

Areas to the west and southwest of Martinsville appear particularly well-suited for solar development, where large agricultural parcels create uninterrupted expanses of open land. The gentle rolling nature of these fields provides natural drainage while maintaining optimal conditions for solar installations. These areas benefit from minimal tree cover and few existing structures that might create shadows or complicate installation.

The eastern approaches to Martinsville also offer suitable terrain, with broad agricultural fields that extend toward the horizon with minimal topographical obstacles. The consistent, gentle slopes in these areas facilitate proper drainage while maintaining the relatively level surfaces that solar installations require for maximum efficiency.

Less suitable areas include the creek valleys and stream corridors where mature trees create significant shading and where environmental regulations might restrict development. The more heavily wooded sections scattered throughout the region would require extensive clearing, making them less economically attractive for solar development compared to the readily available agricultural land that already offers optimal conditions.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
