Solar PV Analysis of Malvern, Pennsylvania, United States
Malvern, Pennsylvania, located in the Northern Temperate Zone, offers a moderate potential for solar energy generation throughout the year. The location's seasonal variations in solar output highlight both opportunities and challenges for solar PV installations.
Seasonal Solar Performance
Summer presents the most favorable conditions for solar energy production, with an impressive 5.99 kWh per day for each kilowatt of installed solar capacity. Spring follows closely behind, generating 5.36 kWh/day. These seasons provide excellent opportunities for maximizing solar energy output.
Autumn sees a significant decrease in production, with 3.43 kWh/day. Winter experiences the lowest output at 2.14 kWh/day, presenting challenges for consistent year-round energy generation.
Optimal Panel Installation
For fixed panel installations in Malvern, the ideal tilt angle to maximize year-round solar production is 35 degrees facing South. This angle optimizes the panels' exposure to sunlight throughout the year, balancing the varying sun positions across seasons.
Environmental and Weather Considerations
Several factors may impact solar production in Malvern:
- Snowfall: Winter accumulation can temporarily reduce panel efficiency.
- Cloud cover: The region experiences partly cloudy conditions, particularly in winter.
To mitigate these issues, consider installing panels at a steeper angle to encourage snow sliding off. Additionally, using high-efficiency panels and micro-inverters can help maximize production during periods of partial shading or cloud cover.
Conclusion
While Malvern's location is not ideal for year-round solar production, it offers substantial potential during spring and summer months. With proper installation techniques and equipment selection, a solar PV system can still provide significant energy benefits, particularly when combined with energy storage solutions to balance seasonal variations.
Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in the United States by location

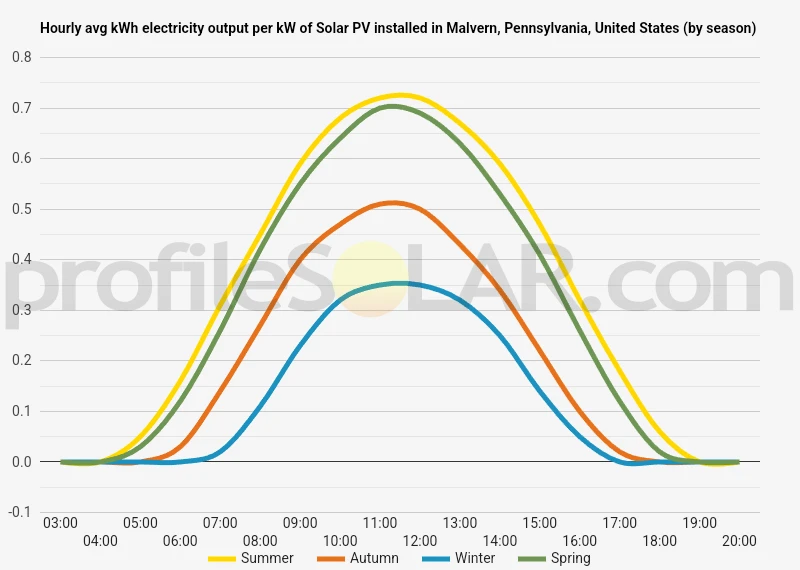

Solar output per kW of installed solar PV by season in Malvern, Pennsylvania
Seasonal solar PV output for Latitude: 40.0459, Longitude: -75.5307 (Malvern, Pennsylvania, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 35° South in Malvern, Pennsylvania, United States
To maximize your solar PV system's energy output in Malvern, Pennsylvania, United States (Lat/Long 40.0459, -75.5307) throughout the year, you should tilt your panels at an angle of 35° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Malvern, Pennsylvania, United States
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Malvern, Pennsylvania, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 35° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 24° South in Summer | 44° South in Autumn | 55° South in Winter | 33° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Malvern, Pennsylvania, United States
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Malvern, Pennsylvania, United States.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Malvern, Pennsylvania, United States
The topography around Malvern, Pennsylvania, in the United States is characterized by gently rolling hills and shallow valleys. This area is part of the Piedmont region, which is known for its undulating landscape that transitions between the flat coastal plain to the east and the more rugged Appalachian Mountains to the west.
The terrain in and around Malvern features a mix of open fields, wooded areas, and small streams. The elevation changes are generally moderate, with hills rising and falling gradually rather than abruptly. This creates a picturesque landscape that is neither completely flat nor extremely steep.
As for areas nearby that would be most suited to large-scale solar PV (photovoltaic) installations, the ideal locations would be relatively flat, open spaces with good sun exposure. Some potential areas to consider might include:
1. Agricultural fields: The surrounding region has numerous farms and open fields that could potentially be repurposed or dual-used for solar energy production. These areas often have the advantage of being already cleared and relatively level.
2. Former industrial sites or brownfields: Any nearby abandoned industrial areas or remediated brownfields could be good candidates for solar installations, as they are typically flat and may already have some existing infrastructure.
3. Large commercial or institutional properties: Some businesses or institutions in the area may have expansive parking lots or unused land that could accommodate solar arrays.
It's important to note that while the rolling hills of the region can sometimes present challenges for large-scale solar installations, modern solar panel technology has become increasingly adaptable to varied terrain. Additionally, any potential sites would need to be evaluated for factors such as proximity to power grid infrastructure, local zoning regulations, and environmental considerations before being deemed suitable for large-scale solar PV development.
United States solar PV Stats as a country
United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in United States?
Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.
