Gray, Kentucky, located in the Northern Temperate Zone, presents a moderately favorable location for year-round solar energy generation, though with significant seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Production Patterns

The solar energy output at this location shows dramatic seasonal swings. Summer delivers the strongest performance at 6.45 kWh per day per kW of installed capacity, making it the prime season for solar generation. Spring follows as the second-best period with 5.48 kWh per day per kW, offering nearly 85% of summer's output. Autumn production drops considerably to 3.97 kWh per day per kW, representing about 62% of summer levels. Winter presents the most challenging period, with output falling to just 2.33 kWh per day per kW - only 36% of summer production. This steep winter decline is typical for locations at this latitude in the Northern Temperate Zone.

Optimal Installation Configuration

For maximum year-round energy production, solar panels at Gray, Kentucky should be installed at a fixed tilt angle of 32 degrees facing south. This angle has been calculated to optimize total annual output by accounting for the sun's changing position throughout the year and weighting the angles based on actual solar irradiance potential at this specific latitude.

Local Environmental and Weather Challenges

Several regional factors in Gray, Kentucky can significantly impact solar energy production and require careful consideration during installation planning. The area experiences typical Appalachian weather patterns, including frequent cloud cover and fog, particularly during autumn and winter months when solar output is already naturally reduced. This cloud cover can further diminish the already limited winter production capacity. Snow accumulation during winter months poses another challenge. Heavy snow can completely block solar panels, reducing output to zero until cleared. Ice formation can create similar blockages and may damage panels if not properly addressed. The region's mountainous terrain can create shading issues, especially during winter when the sun travels lower across the southern sky. Nearby ridges, hills, or tall trees may cast shadows that significantly reduce panel efficiency during certain times of day or seasons.

Preventative Measures for Maximum Production

Several installation strategies can help mitigate these local challenges and maximize energy output:

• Install panels with adequate spacing and proper mounting to allow snow to slide off naturally
• Choose panel mounting systems that allow for safe manual snow removal when necessary
• Conduct thorough shade analysis before installation to identify optimal panel placement
• Consider slightly steeper tilt angles (within reason) to promote snow shedding
• Select high-quality panels with good low-light performance for cloudy conditions

Regular maintenance becomes particularly important in this climate. Keeping panels clean and free of debris, leaves, and snow will help ensure maximum light absorption during the already-limited winter months when every bit of available sunlight matters most for energy production.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

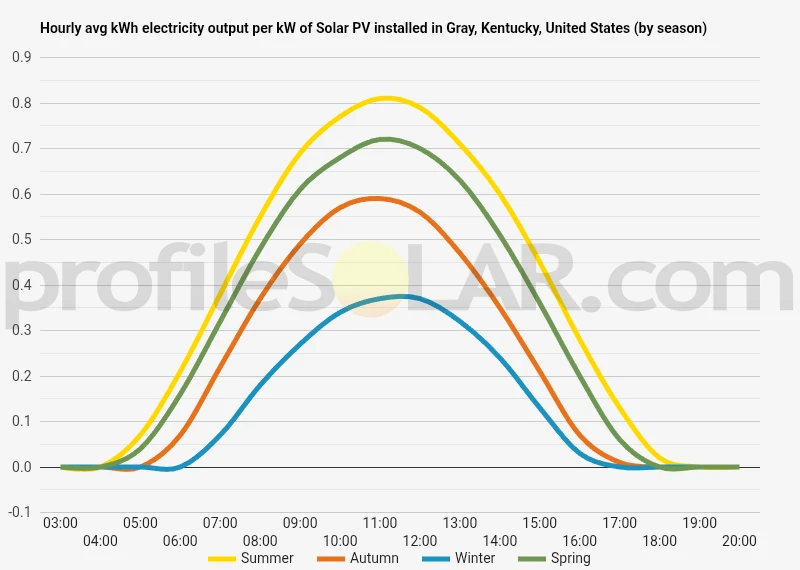

Solar output per kW of installed solar PV by season in Gray, Kentucky

Seasonal solar PV output for Latitude: 36.9426, Longitude: -84.0083 (Gray, Kentucky, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 32° South in Gray, Kentucky, United States

To maximize your solar PV system's energy output in Gray, Kentucky, United States (Lat/Long 36.9426, -84.0083) throughout the year, you should tilt your panels at an angle of 32° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Gray, Kentucky, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Gray, Kentucky, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 32° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
20° South in Summer	42° South in Autumn	52° South in Winter	30° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Gray, Kentucky, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Gray, Kentucky, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Gray, Kentucky, United States

Topographical Features Around Gray, Tennessee

The area surrounding Gray, Tennessee sits within the distinctive Appalachian landscape of East Tennessee, characterized by a complex terrain of rolling hills, ridgelines, and valley systems. This region lies within the Valley and Ridge province, where the topography has been shaped by ancient geological processes that created a series of parallel ridges running in a northeast-southwest direction, separated by fertile valleys. The immediate vicinity of Gray features moderate elevation changes, with the town itself positioned at approximately 1,600 feet above sea level. The terrain consists primarily of gently rolling hills interspersed with flatter valley bottoms, creating a varied landscape that includes both steep slopes and more gradual inclines. The area is drained by several small creeks and tributaries that flow toward larger river systems, creating narrow floodplains and bottomland areas. Moving outward from Gray, the topography becomes more pronounced, with higher ridgelines rising to elevations of 2,500 to 3,000 feet. These ridges are typically forested and feature steeper slopes that can exceed 20-30 degrees in some areas. Between these ridges lie broader valleys that have historically been used for agriculture and development due to their more favorable terrain.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations in the Gray area would be found primarily in the valley systems and on the gentler hillsides with southern-facing exposures. The broader valleys to the south and west of Gray offer the most promising terrain, where relatively flat to gently sloping land provides optimal conditions for solar array installation and maintenance. Areas with slopes between 0-10 degrees would be ideal for ground-mounted solar systems, as they minimize grading costs while still allowing for proper drainage. The valley floors and lower hillsides in these areas often feature cleared agricultural land or pasture, which would reduce site preparation costs compared to forested ridgetops. South-facing slopes with gradual inclines of 5-15 degrees could also prove excellent for solar development, as these natural angles can enhance solar collection efficiency while maintaining reasonable construction and maintenance access. These areas would be particularly valuable if they have existing road access and are located near electrical transmission infrastructure. The flatter bottomland areas along creek valleys, while potentially suitable from a topographical standpoint, would require careful evaluation for flood risk and wetland considerations. However, elevated terraces adjacent to these floodplains often provide excellent opportunities for solar development with minimal environmental constraints. Areas to avoid for large-scale solar development would include the steeper ridgelines and heavily forested slopes, where the combination of difficult access, significant grading requirements, and environmental sensitivities would make development challenging and costly. The narrow valley bottoms with poor drainage or frequent flooding would also present significant obstacles for solar installation.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]
