Terrell, Texas is located in an excellent position for year-round solar energy generation, benefiting from its Northern Sub-Tropical climate zone and favorable geographic coordinates.

Seasonal Solar Performance

The solar energy output at this location shows strong seasonal variation that follows predictable patterns. Summer delivers the highest production at 6.85 kWh per day per kW of installed solar capacity, making it the peak season for energy generation. Spring follows as the second-best season with 5.30 kWh per day, while autumn produces 4.89 kWh per day. Winter naturally shows the lowest output at 3.00 kWh per day, though this is still a respectable amount for solar generation. The ideal months for solar production span from late spring through early autumn, with summer being particularly productive. Even during the winter months, the location maintains reasonable solar output levels that contribute meaningfully to annual energy production.

Optimal Panel Configuration

For maximum year-round energy production, solar panels should be installed at a fixed tilt angle of 29 degrees facing south. This angle is calculated to optimize total annual output by accounting for the sun's varying position throughout the year and weighting the angles based on actual solar irradiance data.

Local Environmental Challenges

Several environmental and weather factors in the Terrell area can impact solar panel performance:

• Severe Weather Events: Texas is prone to hailstorms, tornadoes, and high winds that can damage solar installations
• Dust and Pollen: The region experiences significant dust accumulation and high pollen counts, especially during spring months
• Extreme Heat: Summer temperatures can exceed 100°F, which reduces panel efficiency
• Humidity and Storms: High humidity and thunderstorms can create challenging conditions for solar equipment

Protective Measures for Better Performance

To maximize solar energy production despite these challenges, several preventative measures should be implemented:

• Impact-Resistant Panels: Install panels rated for hail impact and high wind loads
• Regular Cleaning Schedule: Establish monthly cleaning routines, especially during pollen season and dusty periods
• Proper Ventilation: Ensure adequate airflow behind panels to reduce heat buildup and maintain efficiency
• Quality Mounting Systems: Use robust racking systems designed for high wind zones
• Lightning Protection: Install appropriate grounding and surge protection equipment

Despite these environmental considerations, Terrell's location remains highly favorable for solar energy generation. The strong seasonal output, particularly during the extended warm months, makes it an excellent choice for solar installations when proper protective measures are implemented.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

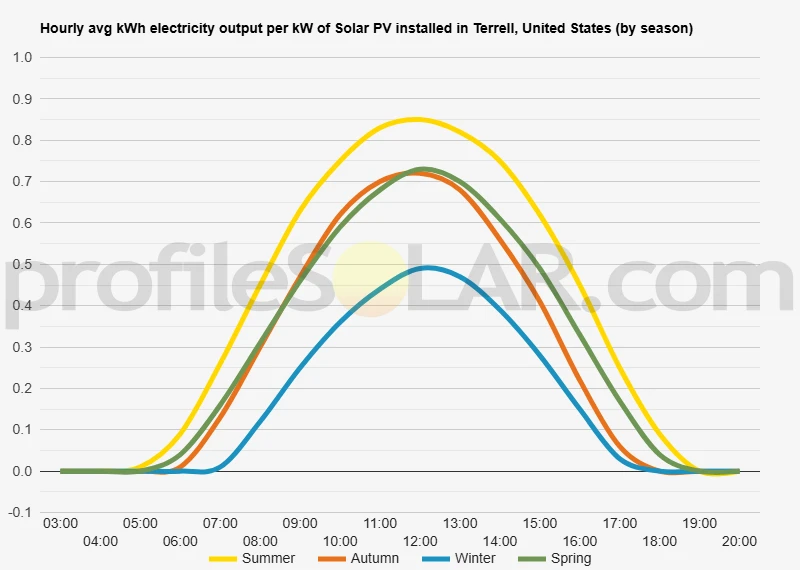

Solar output per kW of installed solar PV by season in Terrell

Seasonal solar PV output for Latitude: 32.7362, Longitude: -96.1925 (Terrell, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 29° South in Terrell, United States

To maximize your solar PV system's energy output in Terrell, United States (Lat/Long 32.7362, -96.1925) throughout the year, you should tilt your panels at an angle of 29° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Terrell, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Terrell, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 29° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
17° South in Summer	37° South in Autumn	48° South in Winter	26° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Terrell, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Terrell, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Terrell, United States

Topographical Features Around Terrell

Terrell sits in the gently rolling landscape of east-central Texas, approximately thirty miles east of Dallas. The terrain in this region is characterized by modest elevation changes and relatively flat topography typical of the Texas Blackland Prairie. The area lies at an elevation of roughly 500 feet above sea level, with gradual undulations across the surrounding countryside rather than dramatic hills or valleys.

The landscape around Terrell features a mix of agricultural fields, pastureland, and scattered wooded areas. Small creeks and tributaries create subtle drainage patterns that flow generally eastward toward the Trinity River system. These waterways have carved gentle depressions in the terrain over time, but the overall topography remains quite manageable for development purposes.

The soil composition in the region is dominated by clay-rich blackland prairie soils, which are generally stable and well-suited for supporting infrastructure. While these soils can expand and contract with moisture changes, proper engineering practices can easily accommodate these characteristics for large installations.

Solar Development Suitability

The relatively flat terrain surrounding Terrell presents excellent opportunities for large-scale solar photovoltaic installations. The gentle topography minimizes the need for extensive grading and site preparation, which can significantly reduce development costs. Areas with minimal slope variation are particularly attractive because they allow for optimal panel positioning and simplified mounting systems.

Agricultural areas to the north and east of Terrell offer some of the most promising locations for solar development. These zones typically feature large, unobstructed parcels with minimal tree coverage and existing road access for construction and maintenance activities. The open farmland provides clear sight lines and reduces potential shading issues that could impact solar panel performance.

The areas along major transportation corridors, particularly near Highway 34 and Interstate 20, present additional advantages for solar installations. These locations benefit from existing electrical infrastructure and transmission lines, which can reduce interconnection costs and complexity. The proximity to major roadways also facilitates equipment transportation during construction phases.

Regions with slightly elevated positions relative to the surrounding area may offer modest advantages for solar installations, as they tend to have better drainage characteristics and potentially fewer issues with standing water during heavy rainfall periods. However, the gentle nature of the local topography means that elevation differences are typically minimal and rarely present significant development challenges.

The western and southwestern areas around Terrell generally feature more open terrain with fewer wooded sections compared to areas further east. This characteristic makes these zones particularly well-suited for large solar arrays, as land clearing requirements would be minimal and environmental impacts reduced.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
