Solar Energy Potential in Tiffin, Ohio

Tiffin, Ohio, located in the Northern Temperate Zone, offers varying potential for solar PV energy generation throughout the year. The location experiences significant seasonal fluctuations in solar energy production that potential solar adopters should consider. During summer months, Tiffin achieves peak solar performance with an impressive 6.25kWh per day for each kilowatt of installed solar capacity. Spring follows as the second most productive season, generating 5.48kWh per day. These warmer months represent the prime solar harvesting period in Tiffin, accounting for the majority of annual energy production. The colder months show a substantial decline in production. Autumn yields 3.40kWh per day, while winter drops to just 2.03kWh per day per installed kilowatt. This winter output represents less than one-third of summer production levels, highlighting the significant seasonal variation at this latitude.

Optimal Installation Angle

For fixed-panel solar installations in Tiffin, the ideal tilt angle to maximize year-round production is 35 degrees facing South. This specific angle optimizes the annual solar harvest by accounting for the sun's changing position throughout the year at this particular latitude.

Environmental Considerations

Several environmental factors may impact solar production in Tiffin:

• Snow accumulation presents a significant challenge during winter months, potentially covering panels and further reducing the already diminished winter output. Snow removal systems or steeper panel angles may help mitigate this issue.
• Cloud cover is relatively common in the Great Lakes region, particularly during fall and winter. Microinverters or power optimizers can help maximize production during partially cloudy conditions.
• Tree shading should be carefully evaluated before installation, as the lower sun angle during winter months means even distant trees can cast long shadows across panels.

Despite these challenges, proper system design can address most environmental factors. Snow-shedding mounting systems, strategic tree trimming, and appropriate equipment selection can significantly improve year-round performance at this location.

Overall Assessment

While not ideal for consistent year-round production, Tiffin offers good solar potential, particularly from March through September. The pronounced seasonal variation means systems will produce approximately three times more energy in summer than winter. Homeowners should size their systems with these seasonal patterns in mind, potentially oversizing if winter production is critical.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

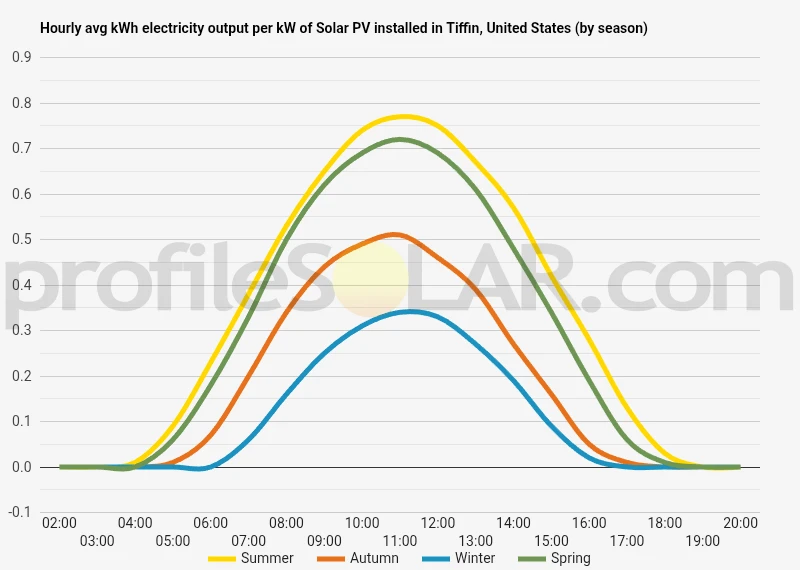

Solar output per kW of installed solar PV by season in Tiffin

Seasonal solar PV output for Latitude: 41.1208, Longitude: -83.1733 (Tiffin, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 35° South in Tiffin, United States

To maximize your solar PV system's energy output in Tiffin, United States (Lat/Long 41.1208, -83.1733) throughout the year, you should tilt your panels at an angle of 35° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Tiffin, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Tiffin, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 35° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
25° South in Summer	45° South in Autumn	55° South in Winter	34° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Tiffin, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Tiffin, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Tiffin, United States

Topography Around Tiffin, Ohio

Tiffin, Ohio, situated in Seneca County in the northwestern part of the state, features a predominantly flat to gently rolling landscape. This topographical character is typical of the region, which was heavily influenced by glacial activity during the last ice age. The area around Tiffin sits within what geographers call the Huron-Erie Lake Plains, a relatively level terrain that stretches across much of northwestern Ohio. The elevation in Tiffin averages approximately 750 feet (230 meters) above sea level, with minimal variation throughout the immediate vicinity. This flat character is interrupted occasionally by subtle undulations and low ridges, remnants of ancient glacial moraines. The Sandusky River flows through the heart of Tiffin, carving a shallow valley that provides one of the few notable topographical features in an otherwise level landscape. The surrounding countryside consists primarily of agricultural land, with open fields dominating the visual character of the region. These expansive, unobstructed areas create a landscape with few natural barriers or significant elevation changes. The soils in this region are generally fertile, resulting from glacial deposits, which explains the area's strong agricultural heritage.

Solar PV Potential in the Tiffin Region

The topographical characteristics of the Tiffin area present several advantages for large-scale solar photovoltaic (PV) installations. The predominantly flat terrain minimizes the need for extensive grading or site preparation, which can significantly reduce installation costs for utility-scale solar projects. The most suitable areas for large-scale solar PV development near Tiffin would be the extensive agricultural lands that surround the city. These areas offer several key advantages: First, the open farmland provides large, contiguous parcels that could accommodate substantial solar arrays without the need for forest clearing or significant land alteration. The flat terrain ensures consistent solar exposure across the installation area, avoiding issues with partial shading that can occur in more varied landscapes. Second, areas south of Tiffin would generally be preferable for solar orientation, as they would allow for arrays to face true south (the optimal direction for fixed solar installations in the Northern Hemisphere). The lack of significant hills or mountains means there are few natural obstructions that would cast shadows across potential solar fields. The rural areas between Tiffin and nearby communities such as Fostoria to the west and Fremont to the north offer particularly promising locations. These areas feature extensive agricultural land with good access to existing electrical infrastructure, including transmission lines that could facilitate connection to the grid. Areas immediately adjacent to the Sandusky River might be less suitable due to potential flooding concerns and the ecological sensitivity of riparian zones. Similarly, the limited forested areas in the region would be less appropriate for development, as they provide valuable ecological services and would require clearing. The gentle nature of the landscape around Tiffin means that solar developers have considerable flexibility in selecting sites, with decisions likely to be influenced more by land availability, proximity to electrical infrastructure, and local zoning regulations than by topographical constraints.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
