Trussville, Alabama, located in the Northern Sub Tropics at coordinates 33.6198, -86.6089, offers a generally favorable environment for solar PV energy generation throughout the year. The location experiences varying levels of solar potential across different seasons, with summer and spring being the most productive periods.

Seasonal Solar Production

Solar energy production in Trussville peaks during the summer months, with an average daily output of 6.04 kWh per kW of installed solar capacity. Spring follows closely behind, generating 5.97 kWh/day. Autumn sees a moderate decrease in production, yielding 4.49 kWh/day. Winter experiences the lowest output, with 2.79 kWh/day, due to shorter daylight hours and less direct sunlight.

Optimal Installation Angle

For fixed panel installations in Trussville, the ideal tilt angle to maximize year-round solar production is 29 degrees facing South. This angle optimizes the panels' exposure to sunlight throughout the year, accounting for seasonal variations in the sun's position.

Environmental and Weather Considerations

While Trussville's climate is generally conducive to solar energy production, there are some factors that could potentially impact efficiency:

1. Humidity: The region's subtropical climate can lead to high humidity levels, which may slightly reduce panel efficiency.
2. Thunderstorms: Alabama experiences frequent thunderstorms, particularly in spring and summer, which can temporarily reduce solar output.

To mitigate these factors, consider installing panels with anti-reflective coatings to improve performance in humid conditions. Additionally, ensure proper drainage systems are in place to prevent water accumulation on panels during heavy rainfall.

Conclusion

Overall, Trussville, Alabama provides a good location for solar PV energy generation, with particularly strong potential in summer and spring. While there are some environmental challenges, they are not significant enough to severely impede solar production, and can be addressed through appropriate installation techniques and equipment selection.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

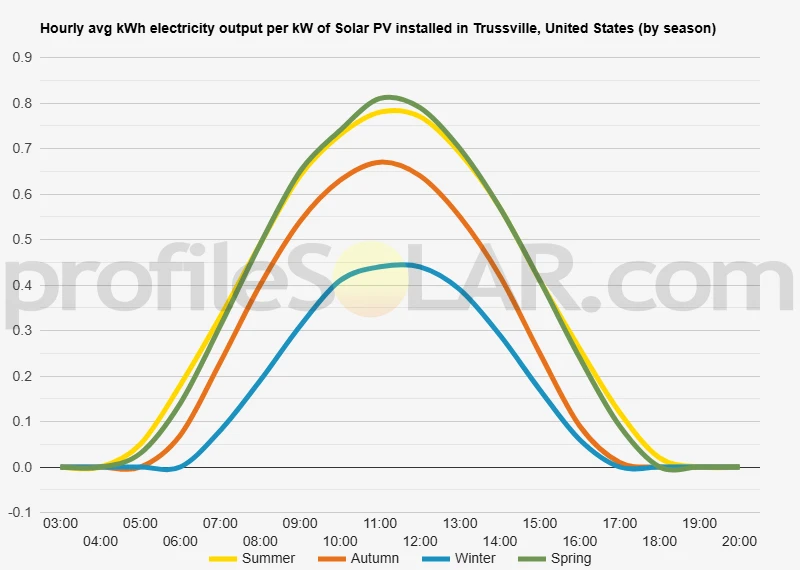

Solar output per kW of installed solar PV by season in Trussville

Seasonal solar PV output for Latitude: 33.6198, Longitude: -86.6089 (Trussville, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 29° South in Trussville, United States

To maximize your solar PV system's energy output in Trussville, United States (Lat/Long 33.6198, -86.6089) throughout the year, you should tilt your panels at an angle of 29° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Trussville, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Trussville, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 29° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
17° South in Summer	39° South in Autumn	48° South in Winter	26° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Trussville, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Trussville, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Trussville, United States

Trussville, Alabama, located at 33.6198°N and 86.6089°W, is situated in a region characterized by gently rolling hills and shallow valleys typical of the southern Appalachian foothills. The area surrounding Trussville features a mix of forested land, open fields, and suburban development. The topography is generally undulating, with elevations ranging from about 500 to 800 feet above sea level. The landscape is marked by numerous small streams and creeks that wind through the valleys, eventually feeding into larger water bodies such as the Cahaba River, which flows to the east of Trussville. These waterways have carved gentle depressions in the terrain over time, creating a network of shallow valleys between the low hills. To the north and east of Trussville, the terrain becomes slightly more rugged as it transitions into the southern edges of the Appalachian Mountains. Here, the hills become more pronounced, and the elevation gradually increases. To the south and west, the land flattens out somewhat as it approaches the Birmingham metropolitan area.

Potential for Large-Scale Solar PV

When considering areas nearby that would be most suited to large-scale solar PV installations, several factors come into play. The ideal locations would have relatively flat or gently sloping terrain, good sun exposure, and minimal shading from trees or other obstacles. The areas to the south and southwest of Trussville, where the terrain begins to flatten out, could potentially be suitable for solar farms. These locations might offer larger tracts of open land with fewer trees and less dramatic topography, which would make construction and maintenance easier. Additionally, some of the higher elevations on the hilltops to the north and east of Trussville could be considered. While these areas might have more varied terrain, they could potentially receive more consistent sunlight due to their elevation and reduced likelihood of shading from surrounding landscape features. However, it's important to note that the region's abundant vegetation and frequent cloud cover might pose challenges for solar energy production. Any large-scale solar PV project would require careful site selection, environmental impact assessments, and consideration of local zoning regulations. The most suitable areas would likely be those that have already been cleared for agricultural or industrial use, rather than forested lands that would require extensive clearing.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
