Tyler, Texas, located in the Northern Sub Tropics, offers a generally favorable environment for solar PV energy generation throughout the year. The city's geographical position at latitude 32.2558 and longitude -95.3146 provides ample sunlight for solar power production, with varying levels of efficiency across different seasons.

Seasonal Solar Performance

Solar energy production in Tyler experiences significant fluctuations throughout the year. Summer stands out as the most productive season, with an impressive average daily output of 6.85 kWh per kW of installed solar capacity. Spring follows closely, generating 5.27 kWh/day, while autumn yields a respectable 4.90 kWh/day. Winter sees the lowest production at 2.90 kWh/day, which is still considerable for solar energy generation.

Optimal Installation Angle

For fixed panel installations in Tyler, the ideal tilt angle to maximize year-round solar production is 28 degrees facing south. This angle optimizes the panels' exposure to sunlight throughout the year, accounting for the Earth's elliptical orbit and Tyler's specific latitude.

Peak Production Periods

The most ideal times for solar energy generation in Tyler are during the summer months, typically from June to August, when days are longest and sunlight is most intense. Spring and early autumn also offer excellent conditions for solar production. While winter months see reduced output, the region's relatively mild climate still allows for consistent energy generation year-round.

Environmental Considerations

Tyler's climate presents a few challenges to solar energy production, though none are insurmountable with proper planning and maintenance. The region experiences occasional severe thunderstorms and tornadoes, which could potentially damage solar installations. To mitigate this risk, robust mounting systems and impact-resistant panels should be used.

High humidity levels, particularly during summer months, may lead to increased dust accumulation on panels, slightly reducing efficiency. Regular cleaning and maintenance can easily address this issue. Additionally, while Tyler receives ample sunlight, it also experiences some cloudy days, especially during winter and spring. Incorporating energy storage solutions, such as batteries, can help maintain consistent power supply during these periods.

Overall, Tyler, Texas provides a highly suitable location for solar PV energy generation, with its abundant sunlight and relatively mild climate offering excellent conditions for year-round solar power production.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

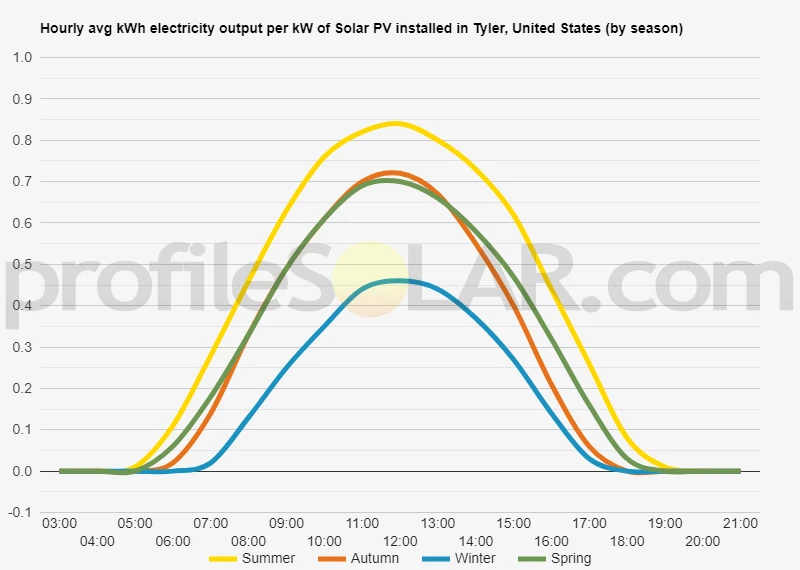

Solar output per kW of installed solar PV by season in Tyler

Seasonal solar PV output for Latitude: 32.2558, Longitude: -95.3146 (Tyler, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 28° South in Tyler, United States

To maximize your solar PV system's energy output in Tyler, United States (Lat/Long 32.2558, -95.3146) throughout the year, you should tilt your panels at an angle of 28° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Tyler, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Tyler, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 28° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
16° South in Summer	37° South in Autumn	48° South in Winter	26° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Tyler, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Tyler, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Tyler, United States

The topography around Tyler, Texas, located at 32.2558°N and 95.3146°W, is characterized by gently rolling hills and a mix of forested areas and open plains. This region, known as the Piney Woods, features a landscape that gradually transitions from the flat coastal plains in the southeast to more elevated terrain in the northwest. The area's elevation typically ranges from about 400 to 600 feet above sea level, with some higher points reaching up to 700 feet. Tyler itself sits on a slight elevation, with the land sloping down gently in various directions from the city center. The surrounding countryside is dotted with numerous creeks and small rivers, which have carved shallow valleys into the landscape over time. These waterways contribute to the area's undulating terrain and create a patchwork of wooded areas and clearings.

Potential for Large-Scale Solar PV

When considering areas nearby Tyler for large-scale solar photovoltaic (PV) installations, several factors come into play. The most suitable locations would be relatively flat, open areas with minimal shading from trees or other obstructions. These conditions are more commonly found in the agricultural lands and prairies to the west and southwest of Tyler. The region between Tyler and the cities of Athens and Palestine, extending roughly 30 to 50 miles to the southwest, offers promising potential for solar development. This area features more expansive, open spaces with fewer forested sections, providing ample room for large solar arrays. The gently rolling terrain in this direction is also advantageous, as it allows for optimal panel placement without significant grading or land preparation. Another potentially suitable area lies to the northwest of Tyler, in the direction of Mineola and Grand Saline. This region also boasts open landscapes with a mix of agricultural land and grasslands, which could accommodate substantial solar installations. The slightly higher elevation in this direction may offer additional benefits in terms of solar exposure and reduced risk of flooding. It's important to note that while these areas show promise for solar PV development, any large-scale project would require detailed site assessments, environmental impact studies, and consideration of local zoning regulations. Additionally, proximity to existing electrical infrastructure and transmission lines would play a crucial role in determining the most economically viable locations for solar farms in the vicinity of Tyler.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
