Harlan, Kentucky is a moderately suitable location for year-round solar energy generation, though it faces some seasonal challenges typical of its Northern Temperate Zone climate. The solar output varies significantly throughout the year, with summer being the most productive season and winter showing considerably reduced performance.

Seasonal Solar Performance

Summer represents the peak solar generation period at this location, producing 6.46 kWh per day per kW of installed capacity. This strong summer performance makes it an excellent time for maximizing solar energy production. Spring follows as the second-best season with 5.65 kWh per day per kW, offering nearly comparable output to summer months. Autumn sees a notable decline in solar production, dropping to 4.07 kWh per day per kW of installed capacity. Winter presents the most challenging conditions for solar generation, with output falling to just 2.36 kWh per day per kW - roughly one-third of summer production levels. For optimal year-round energy capture at this location, solar panels should be installed at a fixed tilt angle of 32 degrees facing south. This angle maximizes total annual solar production by accounting for the sun's varying position throughout the seasons.

Environmental and Weather Challenges

Several local factors in Harlan, Kentucky can significantly impact solar energy production:

• Mountainous terrain and frequent cloud cover typical of Appalachian regions
• High humidity and frequent fog, particularly in valleys
• Heavy snow accumulation during winter months
• Severe thunderstorms and potential hail damage
• Coal dust and industrial particulates from regional mining operations

Preventative Measures for Better Performance

To maximize solar energy production despite these challenges, several installation strategies should be considered. Panel placement should prioritize elevated locations with minimal shading from surrounding mountains or trees, avoiding low-lying areas prone to fog accumulation. Installing panels with adequate tilt helps snow slide off naturally, while smooth panel surfaces reduce snow adhesion. Anti-reflective coatings can improve performance during overcast conditions common in this region. Regular cleaning schedules become particularly important due to coal dust and industrial particulates that can accumulate on panel surfaces. Installing monitoring systems helps identify when cleaning is needed or when weather-related issues affect performance. Robust mounting systems designed for high wind loads and potential hail impact are essential given the area's severe weather patterns. Ground-mounted systems may offer advantages over rooftop installations in areas with heavy snow loads, as they're easier to clear and maintain.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

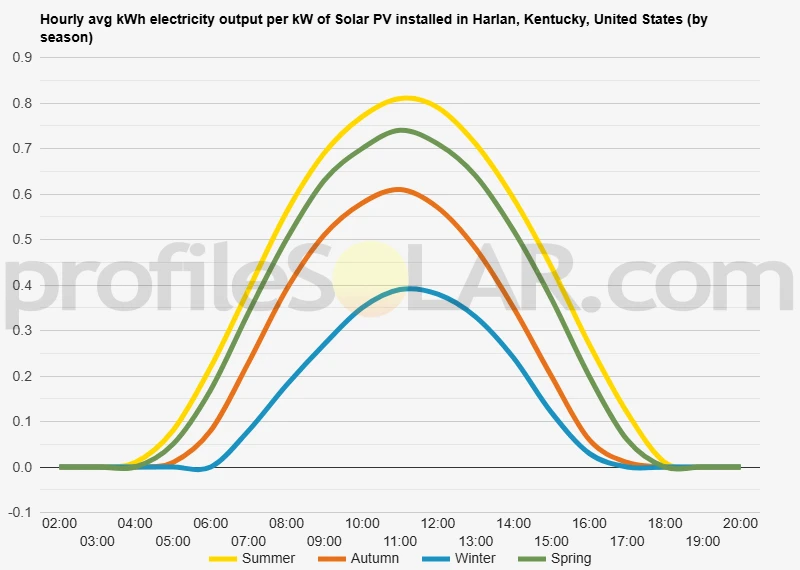

Solar output per kW of installed solar PV by season in Harlan, Kentucky

Seasonal solar PV output for Latitude: 36.8431, Longitude: -83.3218 (Harlan, Kentucky, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 32° South in Harlan, Kentucky, United States

To maximize your solar PV system's energy output in Harlan, Kentucky, United States (Lat/Long 36.8431, -83.3218) throughout the year, you should tilt your panels at an angle of 32° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Harlan, Kentucky, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Harlan, Kentucky, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 32° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
20° South in Summer	42° South in Autumn	52° South in Winter	30° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Harlan, Kentucky, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Harlan, Kentucky, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Harlan, Kentucky, United States

Topography Around Harlan, Kentucky

Harlan sits nestled in the rugged Appalachian Mountains of southeastern Kentucky, where the landscape is characterized by steep hills, narrow valleys, and dramatic elevation changes. The town itself rests at approximately 1,200 feet above sea level in a valley carved by the Cumberland River and its tributaries. The surrounding terrain rises sharply on all sides, with ridgelines often reaching elevations of 2,500 to 3,000 feet or more.

The region's topography was shaped by millions of years of geological processes, creating a complex network of ridges and hollows that define the Cumberland Plateau. Coal seams run through many of these mountains, and decades of mining activity have altered portions of the natural landscape. The valleys tend to be narrow and winding, following the natural drainage patterns of streams and creeks that eventually flow into larger waterways.

Dense forests of mixed hardwoods and conifers cover most of the mountainous terrain, with occasional clearings where mining or development has occurred. The steep slopes and rocky outcroppings make much of the land challenging for development or agriculture, though some flatter areas exist along creek beds and on certain ridgetops.

Optimal Areas for Large-Scale Solar Development

The mountainous terrain around Harlan presents both challenges and opportunities for solar energy development. The most suitable locations would be the reclaimed surface mining sites scattered throughout the region. These areas, known locally as mountaintop removal sites, have been leveled and restored after coal extraction, creating relatively flat expanses that could accommodate large solar arrays without the need for extensive grading.

South-facing slopes with moderate grades would also present viable options for solar installations, particularly those that have been previously cleared or disturbed. The key advantage of elevated sites in this region is reduced shading from surrounding terrain, which can be a significant issue in valley locations where mountains block sunlight during portions of the day.

Areas along the broader sections of valleys, particularly near the Cumberland River corridor, might offer suitable flat terrain for ground-mounted systems. However, these locations would need careful evaluation for potential shading from the surrounding ridgelines, especially during winter months when the sun's angle is lower.

Former mining sites on ridge tops would likely provide the best combination of flat terrain, minimal shading, and existing road access for construction and maintenance. Many of these locations already have established infrastructure from previous industrial use, which could reduce development costs. The elevation advantage of these sites also means they typically experience better air circulation, which can help maintain optimal operating temperatures for solar panels.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
