Shelbyville, Indiana, United States presents a moderately favorable location for year-round solar energy generation, though with significant seasonal variations typical of its Northern Temperate Zone climate.

Seasonal Solar Performance

The solar energy output at this location shows dramatic seasonal swings. Summer delivers the strongest performance at 6.22 kWh per day per kW of installed solar capacity, making it the prime season for solar generation. Spring follows as the second-best season with 5.45 kWh per day per kW, offering nearly as much energy production as summer months. Autumn sees a notable decline to 3.67 kWh per day per kW, while winter presents the most challenging conditions with only 2.17 kWh per day per kW. This winter output represents just 35% of summer production, highlighting the substantial seasonal variation that solar system owners should expect. For maximum year-round energy production, fixed solar panels at this location should be tilted at 34 degrees facing south. This angle optimizes the total annual solar collection by accounting for the sun's changing position throughout the year.

Local Factors Affecting Solar Production

Several environmental and weather factors in the Shelbyville area can significantly impact solar energy generation:

• Snow accumulation: Winter weather can deposit snow on panels, completely blocking solar collection until removed
• Ice formation: Freezing rain and ice storms can create persistent coverings that reduce or eliminate energy production
• Severe weather: Indiana experiences thunderstorms, tornadoes, and hail that can damage panels or create temporary shading from storm clouds
• Humidity and fog: High moisture levels can reduce solar irradiance reaching the panels
• Agricultural dust: The rural location means seasonal dust from farming operations can accumulate on panel surfaces

Preventative Measures for Optimal Performance

Several installation strategies can help maximize solar production despite these local challenges. Installing panels with adequate spacing allows for better air circulation and easier snow shedding. The recommended 34-degree tilt angle naturally helps snow slide off more readily than flatter installations. Regular maintenance becomes crucial in this climate. Scheduling panel cleaning in spring and fall helps remove accumulated dust and debris. Installing monitoring systems allows quick identification of production drops that might indicate snow coverage or other obstructions requiring attention. For severe weather protection, choosing panels and mounting systems rated for high wind loads and hail impact provides better durability. Ensuring proper grounding and surge protection helps safeguard the system during thunderstorms. Consider installing micro-inverters or power optimizers rather than string inverters, as these can minimize production losses when individual panels are partially shaded or covered. This technology allows unaffected panels to continue producing at full capacity even when others are compromised by snow or debris.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

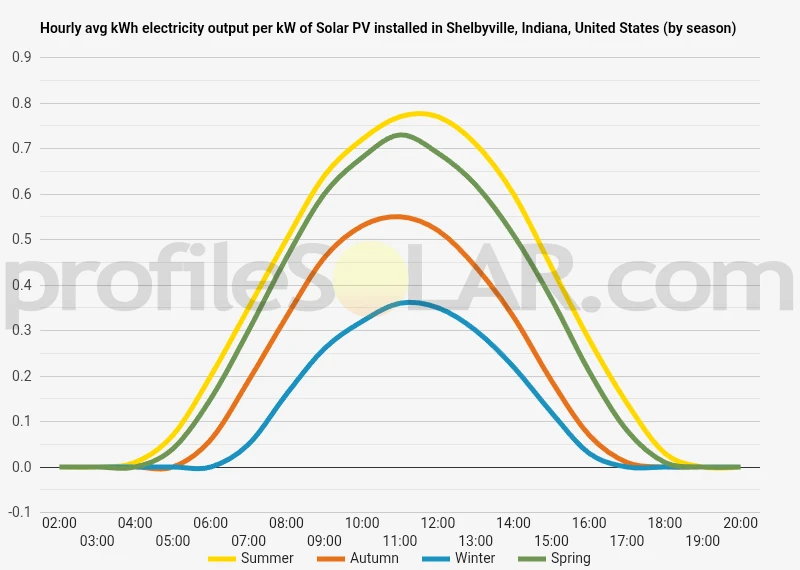

Solar output per kW of installed solar PV by season in Shelbyville, Indiana

Seasonal solar PV output for Latitude: 39.5214, Longitude: -85.7769 (Shelbyville, Indiana, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 34° South in Shelbyville, Indiana, United States

To maximize your solar PV system's energy output in Shelbyville, Indiana, United States (Lat/Long 39.5214, -85.7769) throughout the year, you should tilt your panels at an angle of 34° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Shelbyville, Indiana, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Shelbyville, Indiana, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 34° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
23° South in Summer	44° South in Autumn	54° South in Winter	32° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Shelbyville, Indiana, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Shelbyville, Indiana, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Shelbyville, Indiana, United States

Topography Around Shelbyville

The landscape surrounding Shelbyville, Indiana is characterized by gently rolling terrain typical of the central Indiana plains. This region sits within the Till Plains physiographic province, where ancient glacial activity has created a relatively flat to moderately undulating topography with subtle elevation changes across the countryside. The area features broad, open agricultural fields interspersed with small woodlots and creek valleys that create modest variations in the otherwise level terrain.

Elevations in the Shelbyville vicinity generally range from approximately 700 to 900 feet above sea level, with the highest points occurring on gentle ridges and hilltops scattered throughout the region. The terrain slopes gradually toward the various waterways that drain the area, including the Blue River and several smaller tributaries. These watercourses have carved shallow valleys into the landscape, creating areas of slightly steeper slopes along their banks while leaving the upland areas relatively flat.

The glacial heritage of this region has left behind fertile soils and a landscape that lacks significant topographical barriers. Rolling farmland dominates the scenery, with field boundaries often marked by fence rows or small patches of woodland. The terrain is generally well-drained, though some lower-lying areas may experience seasonal wetness during periods of heavy precipitation or snowmelt.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Shelbyville would be the elevated, south-facing slopes and ridge tops that characterize much of the surrounding agricultural landscape. These areas offer the dual advantages of good drainage and minimal shading from surrounding terrain features. The gently sloping uplands provide natural drainage while maintaining relatively stable soil conditions suitable for solar array foundations.

Large, open agricultural fields on the higher elevations present ideal candidates for solar development, particularly those with southern exposures that can maximize solar collection throughout the day. The existing agricultural use of much of this land means that large, relatively flat parcels are already cleared of trees and other obstructions that might create shading issues for solar panels.

Areas to avoid for solar installations would include the lower-lying regions near streams and rivers, where seasonal flooding or consistently wet soil conditions could pose challenges for equipment installation and maintenance. The narrow valley bottoms carved by local waterways also tend to have more variable microclimates and potential shading from surrounding higher ground, particularly during winter months when the sun angle is lower.

The region's relatively modest elevation changes work in favor of solar development, as there are few steep slopes that would create installation challenges or significant variations in solar exposure across a given site. The predominant agricultural land use also means that much of the area already has good road access, which would facilitate construction and ongoing maintenance operations for large solar installations.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!

Citation Guide

Article Details for Citation

Tell Us About Your Work

We love seeing how our research helps others! If you've cited this article in your work, we'd be delighted to hear about it. Drop us a line via our Contact Us page or on X, to share where you've used our information - we may feature a link to your work on our site. This helps create a network of valuable resources for others in the solar energy community and helps us understand how our research is contributing to the field. Plus, we occasionally highlight exceptional works that reference our research on our social media channels.

Feeling generous?

Share this with your friends!

Compare this location to others worldwide for solar PV potential

The solar PV analyses available on our website, including this one, are offered as a free service to the global community. Our aim is to provide education and aid informed decision-making regarding solar PV installations.

However, please note that these analyses are general guidance and may not meet specific project requirements. For in-depth, tailored forecasts and analysis crucial for feasibility studies or when pursuing maximum ROI from your solar projects, feel free to contact us; we offer comprehensive consulting services expressly for this purpose.
