Solar PV Analysis of Union City, United States
Union City, California, located in the Northern Temperate Zone, offers a generally favorable environment for solar energy generation throughout the year. The city's geographical position at latitude 37.589 and longitude -122.0461 provides ample sunlight for photovoltaic (PV) systems, although the output varies significantly across seasons.
Seasonal Solar Performance
Solar energy production in Union City reaches its peak during the summer months, with an impressive average daily output of 7.04 kWh per kW of installed solar capacity. Spring follows closely behind, generating 6.79 kWh/day. These seasons present ideal conditions for maximizing solar energy harvesting.
Autumn sees a noticeable decrease in solar production, with an average of 4.36 kWh/day. Winter experiences the lowest output at 3.06 kWh/day, reflecting shorter daylight hours and potentially more overcast conditions.
Optimal Panel Installation
To maximize year-round solar energy production in Union City, fixed solar panels should be installed at a tilt angle of 33 degrees facing south. This angle optimizes the panels' exposure to sunlight throughout the year, accounting for the Earth's elliptical orbit and the location's specific latitude.
Environmental Considerations
While Union City's climate is generally conducive to solar energy production, there are a few environmental factors to consider:
- Fog: The San Francisco Bay Area, including Union City, can experience morning fog, particularly during summer months. This may temporarily reduce solar output in the early hours of the day.
- Air pollution: Being part of a major metropolitan area, Union City may occasionally face air quality issues that could slightly diminish solar panel efficiency.
Preventative Measures
To mitigate these potential challenges and ensure optimal solar energy production, consider the following measures when installing a solar PV system in Union City:
- Use high-efficiency panels that perform well in diffuse light conditions to counteract foggy mornings.
- Implement a regular cleaning schedule to remove any accumulated dust or pollutants from panel surfaces.
- Consider microinverter or power optimizer technology to minimize the impact of partial shading on overall system performance.
Overall, Union City presents a highly suitable location for solar energy generation, with ample sunshine throughout the year and manageable environmental challenges that can be effectively addressed through proper system design and maintenance.
Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in the United States by location

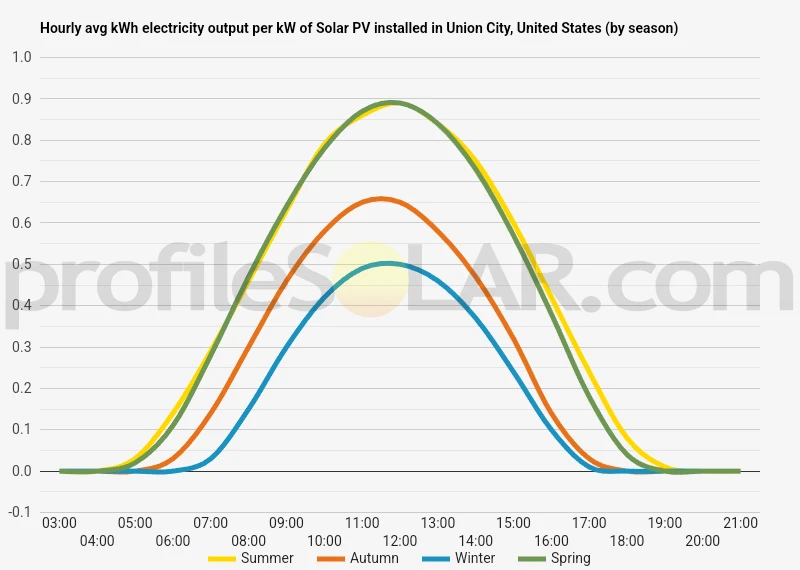

Solar output per kW of installed solar PV by season in Union City
Seasonal solar PV output for Latitude: 37.589, Longitude: -122.0461 (Union City, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 33° South in Union City, United States
To maximize your solar PV system's energy output in Union City, United States (Lat/Long 37.589, -122.0461) throughout the year, you should tilt your panels at an angle of 33° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Union City, United States
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Union City, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 33° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 21° South in Summer | 42° South in Autumn | 52° South in Winter | 30° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Union City, United States
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Union City, United States.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Union City, United States
The topography around Union City, California, is quite diverse and interesting. The city itself is situated in a relatively flat area known as the East Bay plain, which is part of the larger San Francisco Bay Area. This plain is characterized by low-lying, level terrain that gently slopes towards the San Francisco Bay to the west.
To the east of Union City, the landscape begins to change dramatically. The Diablo Range, a prominent mountain range in the area, rises up rather abruptly. These hills and mountains create a stark contrast to the flatlands of the city, with elevations increasing rapidly as you move eastward. The foothills of the Diablo Range begin just a few miles from the city center, offering scenic views and hiking opportunities for residents and visitors.
To the south and southeast of Union City, the terrain remains relatively flat for several miles before it starts to become more hilly. This area includes parts of Fremont and Newark, which share similar topographical features with Union City.
When considering areas nearby that would be most suited to large-scale solar PV (photovoltaic) installations, there are a few key factors to consider. The ideal location would have ample flat or gently sloping land, good sun exposure, and be away from densely populated areas.
Given these criteria, the most suitable areas for large-scale solar PV near Union City would likely be:
- The open spaces to the east of the city, where the flatlands meet the foothills of the Diablo Range. These areas often have good sun exposure and are less densely populated.
- Some of the flatter agricultural lands to the south and southeast, in parts of Fremont that haven't been heavily developed. These areas typically have large, open spaces that could accommodate solar installations.
- Portions of the salt ponds and wetlands to the west of Union City, if environmental concerns can be addressed. These areas are flat and have excellent sun exposure, though there may be challenges related to wetland preservation and soil stability.
It's important to note that any large-scale solar project would need to undergo thorough environmental and zoning reviews, as the San Francisco Bay Area has strict land-use regulations and a strong focus on environmental conservation.
United States solar PV Stats as a country
United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in United States?
Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.
Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
