Gainesville, Texas, located in the Northern Sub Tropics, presents a moderately favorable location for year-round solar energy generation, though with significant seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The solar energy output at this location shows substantial fluctuation throughout the year. Summer delivers the strongest performance at 7.09 kWh per day per kW of installed solar capacity, making it the ideal season for solar generation. Spring follows as the second-best period with 5.48 kWh per day per kW, while autumn drops to 4.97 kWh per day per kW. Winter presents the most challenging conditions for solar production, generating only 3.14 kWh per day per kW of installed capacity. This represents less than half the summer output, indicating that residents relying heavily on solar power may need to plan for reduced energy generation during the colder months.

Optimal Panel Configuration

For maximum year-round energy production at this Gainesville location, solar panels should be installed at a fixed tilt angle of 30 degrees facing south. This angle has been calculated to optimize total annual solar output by accounting for the sun's changing position throughout the year and the Earth's elliptical orbit around the sun.

Local Environmental Challenges

Several environmental and weather factors in the Gainesville area can significantly impact solar panel performance and require careful consideration during installation:

• Severe Weather Events: North Texas experiences frequent thunderstorms, hail, and occasional tornadoes that can damage solar panels
• High Humidity and Heat: The subtropical climate creates conditions that can reduce panel efficiency and accelerate equipment degradation
• Dust and Pollen: Agricultural activities and seasonal pollen can coat panels, reducing their ability to absorb sunlight
• Ice Storms: Winter ice accumulation can block panels and potentially cause structural damage

Preventative Installation Measures

To maximize solar energy production despite these challenges, several protective measures should be implemented during installation:

• Impact-Resistant Panels: Choose panels rated for hail impact and high wind loads to withstand severe weather
• Proper Ventilation: Ensure adequate airflow beneath panels to reduce heat buildup and maintain efficiency
• Regular Cleaning Systems: Install easy-access mounting systems or consider automated cleaning solutions to remove dust and debris
• Structural Reinforcement: Use robust mounting systems designed for high wind loads and potential ice accumulation
• Drainage Considerations: Ensure proper water runoff to prevent ice formation and water damage

Regular maintenance becomes particularly important in this climate, with quarterly cleaning and annual professional inspections recommended to maintain optimal performance throughout the varying seasonal conditions.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

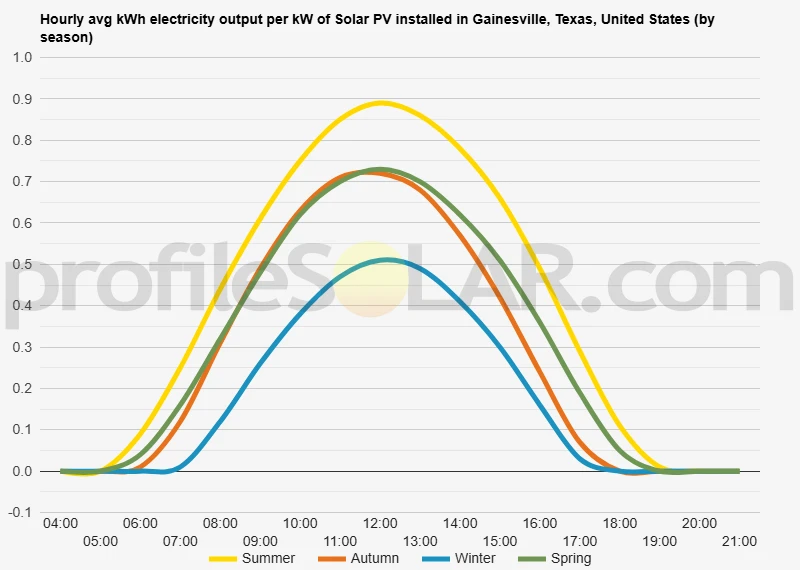

Solar output per kW of installed solar PV by season in Gainesville, Texas

Seasonal solar PV output for Latitude: 33.6556, Longitude: -97.1578 (Gainesville, Texas, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 30° South in Gainesville, Texas, United States

To maximize your solar PV system's energy output in Gainesville, Texas, United States (Lat/Long 33.6556, -97.1578) throughout the year, you should tilt your panels at an angle of 30° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Gainesville, Texas, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Gainesville, Texas, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 30° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
17° South in Summer	38° South in Autumn	49° South in Winter	27° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Gainesville, Texas, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Gainesville, Texas, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Gainesville, Texas, United States

Topography Around Gainesville

Gainesville sits in the heart of North Texas, positioned within the rolling plains region that characterizes much of the northern part of the state. The landscape around this area features gently undulating terrain with modest elevation changes, creating a topography that consists primarily of low hills and shallow valleys. The elevation in and around Gainesville typically ranges from about 700 to 900 feet above sea level, with the city itself located on relatively flat to gently sloping ground.

The region is part of the Eastern Cross Timbers, a geological formation that extends through central Texas. This area is characterized by a mix of prairie grasslands interspersed with patches of oak woodlands. The terrain is generally well-drained, with several small creeks and tributaries of the Trinity River system flowing through the area. These waterways have carved modest valleys into the landscape over time, but the overall relief remains relatively gentle.

The soil composition in the region consists largely of clay-based soils with some sandy areas, particularly near creek beds and drainage areas. The landscape shows evidence of agricultural use, with many areas having been cleared for farming and ranching activities over the past century and a half.

Optimal Areas for Large-Scale Solar Development

The topography around Gainesville presents several favorable characteristics for large-scale solar photovoltaic installations. The most suitable areas would be the expansive flat to gently rolling agricultural lands that extend in all directions from the city. These areas offer the ideal combination of minimal slope, open exposure, and relatively few obstructions that could create shading issues.

The prairie lands to the west and southwest of Gainesville would be particularly well-suited for solar development. These areas feature broad, open expanses with gentle slopes that rarely exceed five degrees, making them ideal for ground-mounted solar arrays. The terrain in these directions tends to be more consistently flat over larger areas, which would allow for more efficient installation and maintenance of solar infrastructure.

Areas to the north and northeast of the city also present good opportunities, particularly where agricultural fields have been established on the flatter portions of the rolling terrain. These locations benefit from being positioned on elevated ground that provides good drainage while maintaining the gentle slopes necessary for optimal solar panel orientation.

The eastern areas around Gainesville, while still suitable, may require more careful site selection due to slightly more varied topography and the presence of more wooded areas associated with the Cross Timbers ecosystem. However, cleared agricultural lands in this direction could still accommodate large-scale solar installations effectively.

Areas near existing transmission infrastructure would be particularly advantageous for solar development, as the relatively flat terrain around Gainesville makes it easier to connect solar installations to the electrical grid without significant additional infrastructure challenges posed by difficult topography.
