Troy, Ohio, in the United States, sits at a moderate latitude (40.0414, -84.2023) in the Northern Temperate Zone, making it a reasonably good location for solar energy production, though with significant seasonal variations.

Seasonal Solar Production

Solar energy generation in Troy follows predictable seasonal patterns. Summer is the most productive season, with panels generating approximately 6.31kWh per day for each kilowatt of installed capacity. Spring follows as the second-most productive season, yielding about 5.52kWh daily per installed kilowatt.

Production drops considerably during autumn to 3.58kWh per day, while winter experiences the lowest output at just 2.29kWh daily per kilowatt of installed capacity. This winter reduction represents about one-third of summer production levels.

Optimal Panel Installation

For fixed panel installations in Troy, the ideal tilt angle to maximize year-round energy production is 34 degrees facing South. This angle has been calculated by analyzing solar elevation throughout the year, weighted by the potential solar production at this specific location.

Environmental and Weather Considerations

Several factors may affect solar production in Troy. Winter snowfall can temporarily reduce output if panels become covered, though the panel tilt often helps snow slide off. Installing panels with adequate elevation and accessibility for clearing can minimize this impact.

The region experiences a moderate number of cloudy days, particularly during winter months, which contributes to the seasonal reduction in production. Troy also experiences occasional severe weather, including thunderstorms and hail, which could potentially damage panels if not properly rated for impact resistance.

Tree coverage and building shadows should be carefully evaluated before installation, as the relatively low winter sun angle makes solar arrays particularly susceptible to shading during the already less productive months.

Preventative Measures

To maximize production in Troy's climate, consider these strategies:

• Install panels with snow-shedding capabilities and accessible locations for manual clearing when necessary
• Use microinverters or power optimizers to minimize the impact of partial shading
• Select hail-resistant panels with appropriate certifications
• Conduct thorough shade analysis across all seasons, particularly for winter sun angles
• Consider slight adjustments to the tilt angle (perhaps steeper) if winter production is particularly important

Overall, while Troy isn't an ideal solar location compared to sunnier regions in the southwestern United States, it still offers sufficient solar resources to make photovoltaic systems economically viable, especially during the highly productive spring and summer months.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

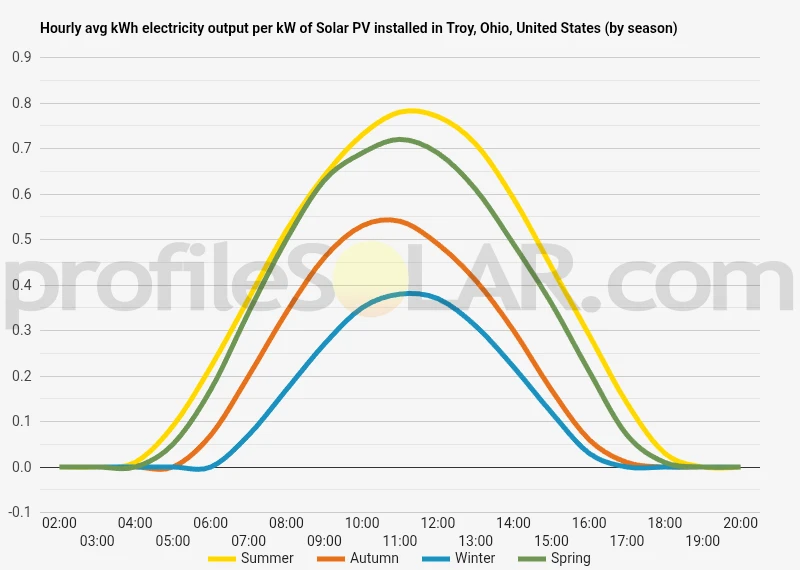

Solar output per kW of installed solar PV by season in Troy, Ohio

Seasonal solar PV output for Latitude: 40.0414, Longitude: -84.2023 (Troy, Ohio, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 34° South in Troy, Ohio, United States

To maximize your solar PV system's energy output in Troy, Ohio, United States (Lat/Long 40.0414, -84.2023) throughout the year, you should tilt your panels at an angle of 34° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Troy, Ohio, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Troy, Ohio, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 34° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
24° South in Summer	44° South in Autumn	54° South in Winter	33° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Troy, Ohio, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Troy, Ohio, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Troy, Ohio, United States

The topography around Troy, Ohio, located at approximately 40.0414° N, 84.2023° W, consists primarily of gently rolling terrain characteristic of western Ohio's glaciated till plains. This area sits within the broader Miami River Valley, with the Great Miami River flowing nearby. The landscape was shaped during the Pleistocene epoch when glaciers advanced and retreated across the region, depositing fertile soil and creating the subtle undulations visible today. The elevation around Troy averages approximately 850-900 feet above sea level, with minimal dramatic changes in elevation. This relatively flat to gently rolling landscape is punctuated by shallow river valleys, including that of the Great Miami River which runs through the heart of Troy. The surrounding countryside features a patchwork of agricultural fields, scattered woodlots, and suburban development extending outward from the city center.

Solar PV Potential in the Region

For large-scale solar photovoltaic (PV) development, several areas around Troy present favorable conditions. The rural lands to the west and northwest of Troy offer particularly suitable topography for solar installations. These areas feature expansive, relatively flat agricultural parcels with minimal shading from natural features or structures. The agricultural lands east of Troy extending toward Springfield also present viable options for solar development. These areas benefit from the gently rolling terrain that can be easily graded if necessary. The minimal slope variation reduces construction complexity and associated costs for large-scale installations.

Topographical Considerations for Solar Development

When evaluating specific sites for solar PV development in the Troy region, south-facing gentle slopes offer optimal conditions for maximizing solar energy capture. The subtle elevation changes in the region generally don't pose significant challenges for solar array construction, though microclimate variations should be considered during detailed site assessments. Areas to potentially avoid include the immediate floodplains of the Great Miami River and its tributaries. While these areas are relatively flat, they present flooding risks that could compromise solar infrastructure. Additionally, the more developed areas immediately surrounding Troy itself offer less viable space for large-scale installations, though smaller commercial or community solar projects might find suitable locations within these zones. The glacial till soils prevalent in the region generally provide stable foundations for solar array mounting systems. However, site-specific geotechnical investigations would be necessary to confirm soil bearing capacity and drainage characteristics before development.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
