Winnetka, Illinois presents a moderately favorable location for solar energy generation, though it faces the typical challenges of northern temperate climates with significant seasonal variation in solar production.

Seasonal Solar Performance

The solar energy output at this location varies dramatically throughout the year. Summer provides the strongest performance at 6.22 kWh per day per kW of installed solar capacity, making it an excellent time for solar generation. Spring follows as the second-best season with 5.15 kWh per day per kW, offering substantial energy production as daylight hours increase and the sun climbs higher in the sky. Autumn sees a notable decline to 3.11 kWh per day per kW as the sun angle decreases and weather patterns begin to shift. Winter presents the most challenging conditions with only 1.76 kWh per day per kW, representing less than 30% of summer production levels. For maximum year-round energy production from a fixed solar panel installation at this Winnetka location, panels should be tilted at 36 degrees facing south. This angle optimizes the total annual solar collection by balancing the sun's varying seasonal positions.

Local Factors Affecting Solar Production

Several environmental and weather factors in the Winnetka area can significantly impact solar energy generation:

• Snow accumulation: Heavy winter snowfall can completely block solar panels, eliminating energy production until cleared
• Ice formation: Ice buildup creates similar blockage issues and can be more persistent than snow
• Frequent cloud cover: The Great Lakes region experiences considerable cloudy weather, particularly during fall and winter months
• Atmospheric moisture: High humidity and lake-effect weather patterns can reduce solar irradiance
• Tree coverage: Many established neighborhoods in Winnetka have mature trees that can cast shadows on rooftop installations

Preventative Measures for Optimal Performance

Several strategies can help maximize solar energy production despite these challenges:

• Steep panel angles: Installing panels at steeper angles helps snow and ice slide off more readily
• Heating elements: Some systems include heating strips along panel edges to prevent ice dam formation
• Strategic placement: Careful positioning away from tree shadows and consideration of future tree growth
• Regular maintenance: Scheduled cleaning and snow removal protocols during winter months
• Quality equipment: Using panels and inverters rated for cold weather performance and thermal cycling

Overall Assessment

While Winnetka's location provides reasonable solar potential during spring and summer months, the dramatic winter reduction makes it a moderately challenging location for year-round solar generation. The strong summer performance can help offset winter deficits, but property owners should plan for significant seasonal variation in energy production and consider battery storage or grid-tied systems to manage this variability effectively.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

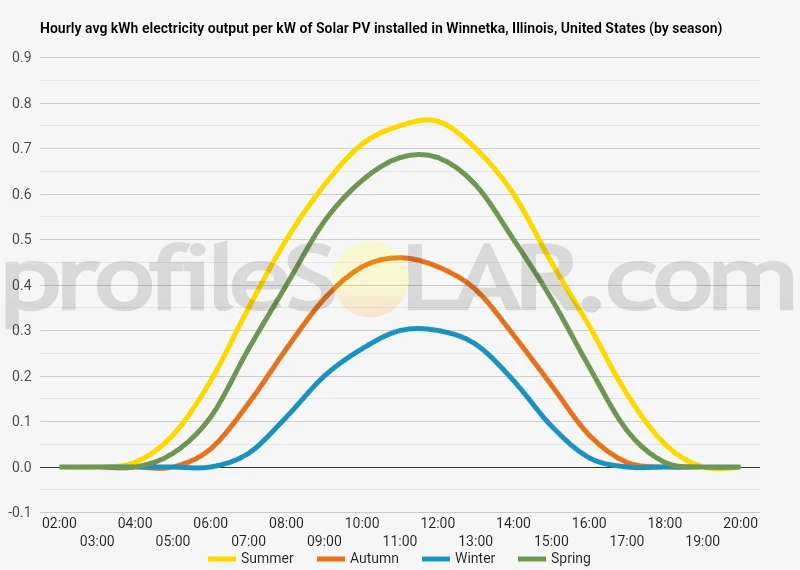

Solar output per kW of installed solar PV by season in Winnetka, Illinois

Seasonal solar PV output for Latitude: 42.1081, Longitude: -87.7359 (Winnetka, Illinois, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 36° South in Winnetka, Illinois, United States

To maximize your solar PV system's energy output in Winnetka, Illinois, United States (Lat/Long 42.1081, -87.7359) throughout the year, you should tilt your panels at an angle of 36° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Winnetka, Illinois, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Winnetka, Illinois, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 36° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
26° South in Summer	46° South in Autumn	56° South in Winter	35° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Winnetka, Illinois, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Winnetka, Illinois, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Winnetka, Illinois, United States

Topographical Features of Winnetka and Surrounding Areas

Winnetka sits along the northwestern shore of Lake Michigan, approximately 20 miles north of downtown Chicago. The area features relatively flat to gently rolling terrain typical of the Great Lakes region, with elevations ranging from around 580 feet above sea level near the lakefront to approximately 700 feet inland. This modest elevation change creates subtle undulations across the landscape rather than dramatic hills or valleys. The immediate vicinity consists of well-established residential neighborhoods with mature tree canopy coverage, particularly in the historic sections closer to Lake Michigan. Moving westward from the lakefront, the terrain gradually rises through a series of gentle ridges and shallow depressions formed by ancient glacial activity. These glacial features created the characteristic moraines and outwash plains that define much of northeastern Illinois.

Drainage Patterns and Land Use

The regional drainage system flows primarily eastward toward Lake Michigan through several small creeks and constructed drainage channels. The Skokie River system runs roughly north-south through the broader area, creating narrow floodplain corridors that interrupt the otherwise consistent topography. These waterways have carved shallow valleys that are typically 20 to 40 feet below the surrounding upland areas. Agricultural land becomes more prevalent as distance from Lake Michigan increases, transitioning from dense suburban development near the shore to larger open spaces suitable for various land uses. The Cook County forest preserve system maintains significant undeveloped parcels throughout the region, particularly along waterway corridors and in areas with steeper topography.

Optimal Areas for Large-Scale Solar Development

The most promising locations for substantial solar installations lie west and southwest of Winnetka, where the landscape opens into broader agricultural areas with fewer trees and less residential density. These zones offer relatively flat terrain with minimal shading from existing structures or mature vegetation. The areas around Palatine, Schaumburg, and extending toward Elgin present particularly favorable conditions due to their combination of gentle topography and available land parcels. Industrial and commercial districts along major transportation corridors provide additional opportunities for large-scale solar development. The areas near O'Hare International Airport and along Interstate 90 feature extensive flat rooftops and open industrial sites that could accommodate significant solar arrays without competing with residential or sensitive environmental uses. Former agricultural areas that have been designated for future development but remain undeveloped represent ideal interim locations for solar installations. These sites typically feature minimal topographical constraints, established electrical grid connections, and clear title situations that facilitate large-scale renewable energy projects.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
