Van Alstyne, Texas offers reasonably good conditions for solar energy generation throughout most of the year, though like many locations in the Northern Sub Tropics, it experiences significant seasonal variation in solar output.

Seasonal Solar Performance

Summer represents the peak solar generation season at this location, producing 6.89 kWh per day per kW of installed solar capacity. This strong summer performance makes it an excellent time for maximizing energy production and potentially selling excess power back to the grid. Spring follows as the second-best season with 5.27 kWh per day per kW, offering solid solar generation as daylight hours increase and weather conditions remain favorable. Autumn production drops to 4.86 kWh per day per kW as the sun angle decreases and daylight hours shorten. Winter presents the most challenging period for solar generation, with output falling to just 2.97 kWh per day per kW. This represents less than half of summer production levels, which is typical for locations at this latitude.

Optimal Panel Installation

For fixed panel installations at Van Alstyne, the ideal tilt angle is 29 degrees facing south to maximize total year-round solar production. This angle balances the sun's varying seasonal positions to capture the most energy across all four seasons.

Local Factors Affecting Solar Production

Several environmental and weather factors in the Van Alstyne area can significantly impact solar panel performance:

• Severe thunderstorms and hail, which are common in North Texas during spring and early summer
• High humidity levels that can reduce solar efficiency
• Dust and pollen accumulation, particularly during spring months
• Occasional ice storms in winter that can damage panels or reduce production

Preventative Measures

To maximize solar energy production despite these challenges, several installation strategies prove effective:

• Install hail-resistant tempered glass panels rated for impact resistance
• Use proper mounting systems that allow for thermal expansion in high heat
• Design adequate spacing between panels for air circulation to combat humidity effects
• Plan for regular cleaning schedules, especially during high pollen seasons
• Consider micro-inverters or power optimizers to minimize impact when individual panels are shaded or dirty

Regular maintenance becomes particularly important in this climate. Scheduling professional cleaning after major pollen seasons and storm events helps maintain optimal performance throughout the year. Overall, Van Alstyne offers decent solar potential, especially during the warmer months, though the significant winter reduction in output should be factored into any solar investment calculations.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

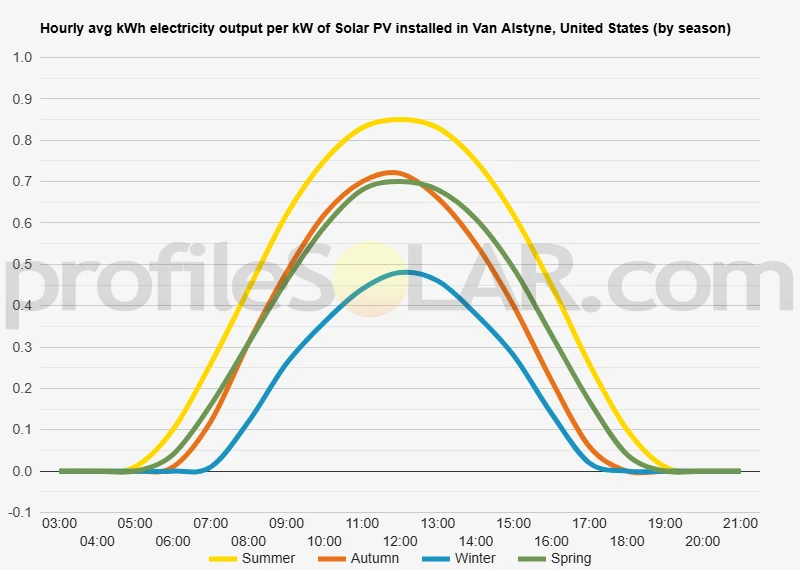

Solar output per kW of installed solar PV by season in Van Alstyne

Seasonal solar PV output for Latitude: 33.4215, Longitude: -96.5772 (Van Alstyne, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 29° South in Van Alstyne, United States

To maximize your solar PV system's energy output in Van Alstyne, United States (Lat/Long 33.4215, -96.5772) throughout the year, you should tilt your panels at an angle of 29° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Van Alstyne, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Van Alstyne, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 29° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
17° South in Summer	38° South in Autumn	49° South in Winter	27° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Van Alstyne, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Van Alstyne, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Van Alstyne, United States

Topographical Features Around Van Alstyne

Van Alstyne sits in the heart of North Central Texas, positioned within the relatively flat terrain characteristic of the eastern edge of the Great Plains. The landscape surrounding this small city in Grayson County features gently rolling hills with modest elevation changes, creating a predominantly rural setting dotted with agricultural fields, pastures, and scattered woodlands. The topography is generally favorable for development, with most areas experiencing gradual slopes rather than steep inclines.

The region lies within the Blackland Prairie ecosystem, which historically supported vast grasslands before being converted to farmland. Today, the area maintains its agricultural character with large expanses of cultivated fields growing crops like cotton, corn, and wheat. These open spaces are interspersed with patches of native trees, including oak, elm, and mesquite, particularly along creek beds and property boundaries.

Elevation in the immediate vicinity ranges from approximately 600 to 750 feet above sea level, with the terrain sloping very gradually toward the southeast. Small creeks and tributaries of the East Fork Trinity River meander through the landscape, creating shallow valleys and occasional wetland areas. These waterways are typically bordered by denser vegetation and slightly more varied topography.

Optimal Areas for Large-Scale Solar Development

The expansive agricultural fields stretching in all directions from Van Alstyne present excellent opportunities for large-scale solar photovoltaic installations. The relatively flat terrain with gentle slopes provides ideal conditions for solar panel arrays, minimizing grading requirements and reducing installation costs. Areas to the west and southwest of the city offer particularly promising sites, where large contiguous parcels of farmland could accommodate substantial solar facilities without significant topographical obstacles.

The open prairie landscape north and east of Van Alstyne also shows strong potential for solar development. These areas benefit from minimal shading concerns due to the sparse tree coverage and low-profile vegetation typical of agricultural zones. The existing farm roads and rural infrastructure provide reasonable access for construction and maintenance activities, while the proximity to electrical transmission lines along major highways enhances grid connectivity options.

Southern areas near the community of Blue Ridge offer additional suitable terrain, characterized by broad, gently sloping fields with excellent southern exposure. The relatively uniform topography in this direction minimizes the risk of shadows from terrain features and allows for efficient panel layout designs. These locations also benefit from being positioned away from the more densely wooded areas that occur along some of the larger creek systems.

Areas immediately adjacent to major transportation corridors, including US Highway 75 and State Highway 5, present particularly attractive development opportunities. These locations combine favorable topographical conditions with superior access for construction equipment and ongoing maintenance operations. The flat to gently rolling terrain along these corridors typically requires minimal site preparation while offering excellent visibility and accessibility for large-scale solar installations.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
