Villa Park, Illinois, located in the Northern Temperate Zone at coordinates 41.8897, -87.989, presents a moderately favorable location for year-round solar energy generation, though with significant seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The location demonstrates strong seasonal fluctuations in solar energy production. Summer delivers the highest output at 6.25 kWh per day per kW of installed capacity, making it the prime solar generation season. Spring follows as the second-best performing season with 5.26 kWh per day per kW, offering substantial energy production during the transitional months. Autumn shows a notable decline to 3.32 kWh per day per kW, while winter presents the most challenging conditions with only 2.01 kWh per day per kW of installed solar capacity. This dramatic winter reduction means the location produces roughly three times more solar energy in summer compared to the coldest months. For optimal year-round performance at Villa Park, solar panels should be installed at a fixed tilt angle of 36 degrees facing south. This angle maximizes total annual production by accounting for the sun's changing position throughout the year and the varying solar irradiance levels at this latitude.

Local Factors Affecting Solar Production

Several environmental and weather factors in the Villa Park area can significantly impact solar energy generation and should be addressed during installation planning. **Snow accumulation** represents the most significant seasonal challenge. Illinois winters bring substantial snowfall that can completely block solar panels, eliminating energy production until the snow melts or is removed. The low winter production figures already account for reduced daylight, but snow cover can further decrease actual output below the expected 2.01 kWh per day per kW. **Ice formation** during winter freeze-thaw cycles can create similar blockage issues and potentially damage panels if not properly managed. Ice buildup along panel edges can persist longer than snow, extending periods of reduced production. **Severe weather events** common to the Midwest, including hailstorms, high winds, and occasional tornadoes, pose risks to solar installations. Hail can crack or shatter panels, while strong winds can damage mounting systems or blow debris onto arrays.

Preventative Installation Measures

Several installation strategies can help maximize energy production despite these local challenges:

• Steeper tilt angles in snow-prone areas: While 36 degrees is optimal for year-round production, slightly steeper angles (40-45 degrees) can help snow slide off more easily, though this may reduce overall annual output
• Adequate panel spacing: Proper spacing between panel rows prevents snow from one row accumulating on panels below
• Reinforced mounting systems: Heavy-duty mounting hardware rated for high wind loads and snow loading typical of Illinois weather
• Impact-resistant panels: Choosing panels with tempered glass and robust frames that can withstand hail impact
• Strategic positioning: Installing panels away from overhanging tree branches that could drop ice, snow, or debris

**Maintenance accessibility** should be planned during installation, allowing safe access for snow removal during extended winter weather events. However, panels often clear naturally during sunny winter days even when temperatures remain below freezing. **Ground-mount systems** may offer advantages in this location, providing easier access for snow clearing compared to rooftop installations, though they require more land area and may face additional wind exposure. Despite these seasonal challenges, Villa Park's strong summer and spring solar production, combined with proper installation techniques and preventative measures, can still deliver substantial annual solar energy generation for residential or commercial applications.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

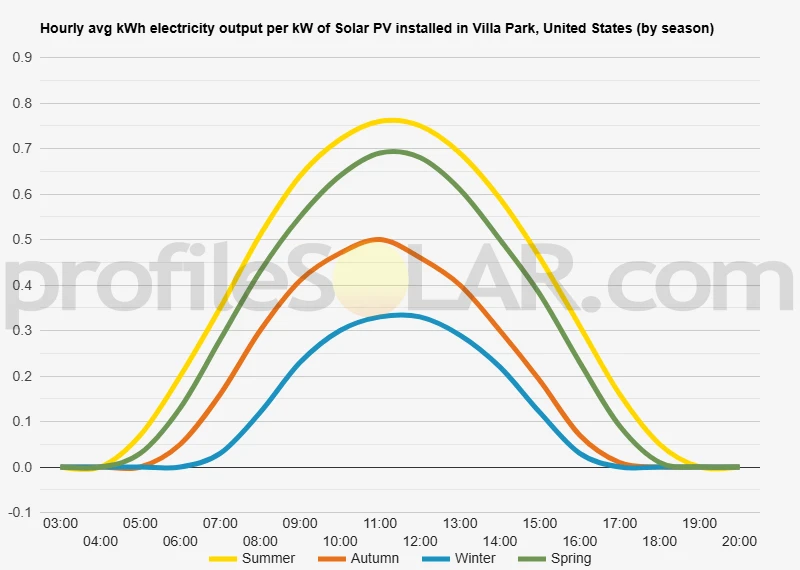

Solar output per kW of installed solar PV by season in Villa Park

Seasonal solar PV output for Latitude: 41.8897, Longitude: -87.989 (Villa Park, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 36° South in Villa Park, United States

To maximize your solar PV system's energy output in Villa Park, United States (Lat/Long 41.8897, -87.989) throughout the year, you should tilt your panels at an angle of 36° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Villa Park, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Villa Park, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 36° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
26° South in Summer	45° South in Autumn	56° South in Winter	35° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Villa Park, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Villa Park, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Villa Park, United States

Topographical Features of Villa Park

Villa Park sits within the relatively flat terrain characteristic of northeastern Illinois, positioned in the western suburbs of Chicago. The area lies within the Great Lakes Plains region, where the landscape was shaped by ancient glacial activity that left behind gently rolling terrain with minimal elevation changes. The community is situated at a modest elevation, with the surrounding countryside featuring subtle undulations rather than dramatic hills or valleys. The immediate vicinity of Villa Park consists of predominantly level ground with gentle slopes that rarely exceed a few degrees. This flat to gently rolling topography extends in all directions, creating an expansive plain that stretches westward toward the Fox River valley and eastward toward Lake Michigan. The terrain is punctuated by occasional shallow depressions and low ridges, remnants of glacial moraines and outwash plains that formed during the last ice age.

Drainage and Water Features

The local landscape is drained by several small waterways, including Salt Creek, which meanders through the broader region in a generally eastward direction toward the Des Plaines River. These waterways have carved shallow valleys into the otherwise flat terrain, creating subtle variations in elevation that add gentle contours to the landscape. The drainage patterns have resulted in some areas of slightly lower elevation near stream corridors, while the interfluves between waterways represent the highest local elevations. Wetland areas, though much reduced from their historical extent, still exist in scattered locations throughout the region. These low-lying areas tend to collect water during wet periods and represent the most topographically constrained portions of the local landscape.

Optimal Areas for Large-Scale Solar Development

The broad, relatively flat agricultural and undeveloped lands extending west and southwest of Villa Park present the most favorable topographical conditions for large-scale solar installations. These areas benefit from minimal slope, which reduces grading requirements and construction costs while maximizing the efficiency of solar panel placement. The expansive open fields in western DuPage County and adjacent Kane County offer particularly suitable terrain. Areas with south-facing gentle slopes of one to three degrees would be ideal for solar development, as they provide natural drainage while maintaining optimal panel orientation. The higher elevation areas between stream valleys offer the best combination of good drainage and stable soil conditions, making them preferable to the lower-lying areas near waterways that may experience periodic flooding or have softer, less stable soils. The agricultural lands northwest toward Elgin and southwest toward Aurora feature extensive flat to gently rolling terrain that would accommodate large solar arrays with minimal topographical constraints. These areas typically have good road access for construction and maintenance while being sufficiently removed from dense residential development to allow for substantial installations.

Topographical Constraints

While the overall terrain is favorable for solar development, certain topographical features present challenges. The shallow valleys associated with Salt Creek and other local waterways should be avoided due to potential flooding risks and the presence of riparian vegetation that could create shading issues. Additionally, any remaining wetland areas or low-lying zones with poor drainage would be unsuitable for solar installations. The most densely developed areas immediately surrounding Villa Park, while topographically suitable, are constrained by existing infrastructure rather than natural terrain features. The ideal locations for large-scale solar development lie in the undeveloped or agricultural areas where the favorable flat topography can be fully utilized without significant grading or site preparation requirements.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
