Livingston, Texas, located in the Northern Sub Tropics, offers a moderately favorable environment for year-round solar energy generation, though with significant seasonal variation that potential solar installers should carefully consider.

Seasonal Solar Performance

The location experiences strong summer performance with solar panels producing 6.48 kWh per day per kW of installed capacity during the summer months. Spring also provides good conditions at 5.20 kWh per day per kW, while autumn drops to 4.74 kWh per day per kW. Winter presents the most challenging conditions with production falling to just 3.03 kWh per day per kW of installed solar capacity. This seasonal pattern means that summer generates more than twice the solar energy compared to winter months, creating a significant imbalance that homeowners and businesses need to account for in their energy planning. The strongest solar generation period runs from late spring through early autumn. For optimal year-round performance, solar panels at this Livingston location should be installed at a fixed tilt angle of 27 degrees facing south. This angle maximizes total annual energy production by accounting for the sun's varying position throughout the year and the location's specific latitude.

Local Environmental Challenges

Several environmental and weather factors in the Livingston area can significantly impact solar energy production and require careful consideration during installation planning. Humidity and Heat Effects: The subtropical climate brings high humidity levels that can reduce solar panel efficiency. Excessive heat also decreases photovoltaic performance, as solar panels operate less efficiently when temperatures rise above optimal ranges. Severe Weather Risks: East Texas experiences thunderstorms, hail, and occasional hurricane activity that can damage solar installations. Strong winds and flying debris pose particular threats to panel integrity and mounting systems. Atmospheric Conditions: High humidity can create haze and atmospheric moisture that reduces solar irradiance reaching the panels. Additionally, the region experiences periods of heavy cloud cover that can dramatically reduce energy generation.

Installation Strategies for Improved Performance

Several preventative measures can help maximize solar energy production despite these local challenges:

• Install panels with adequate spacing and ventilation underneath to promote air circulation and heat dissipation
• Choose high-quality mounting systems rated for hurricane-force winds and impact resistance
• Select solar panels with strong hail ratings and tempered glass construction
• Implement regular cleaning schedules to remove humidity-related buildup and debris
• Consider microinverters or power optimizers to minimize production losses when partial shading occurs

Proper system design should also account for the significant winter production decrease by potentially oversizing the array or incorporating battery storage to balance seasonal variations in energy generation.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

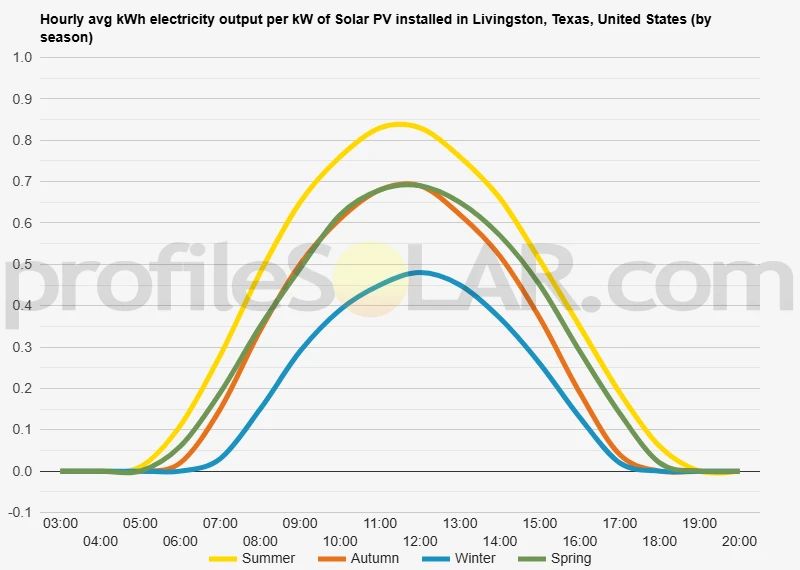

Solar output per kW of installed solar PV by season in Livingston, Texas

Seasonal solar PV output for Latitude: 30.6826, Longitude: -94.8988 (Livingston, Texas, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 27° South in Livingston, Texas, United States

To maximize your solar PV system's energy output in Livingston, Texas, United States (Lat/Long 30.6826, -94.8988) throughout the year, you should tilt your panels at an angle of 27° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Livingston, Texas, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Livingston, Texas, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 27° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
15° South in Summer	35° South in Autumn	46° South in Winter	24° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Livingston, Texas, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Livingston, Texas, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Livingston, Texas, United States

Topographical Features of the Livingston Area

The terrain around Livingston, Texas is characterized by gently rolling hills and relatively flat coastal plains typical of East Texas. This region sits within the Piney Woods ecoregion, where elevations generally range from about 150 to 300 feet above sea level. The landscape features a mix of forested areas dominated by pine and hardwood trees, interspersed with cleared agricultural land and pastures. The topography is generally favorable for development, with gradual slopes rather than steep inclines. Small creeks and tributaries flow through the area, creating minor valleys and drainage patterns that add subtle variation to an otherwise relatively level terrain. The soil composition consists primarily of sandy loams and clay, which provide stable foundations for construction projects.

Natural Drainage and Water Features

Several waterways traverse the region, including various creeks that eventually drain into the Trinity River system to the west and the San Jacinto River system to the south. These water features create natural corridors through the landscape but do not present significant topographical barriers. The drainage patterns are well-established and predictable, with most water features occupying relatively narrow floodplains. Lake Livingston, a large reservoir created by damming the Trinity River, lies to the northwest of the town. While this water body creates opportunities for recreation and water supply, it also influences the local topography by creating more pronounced elevation changes along its shoreline and tributary areas.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be the cleared agricultural lands and pastures that dot the landscape south and east of Livingston. These areas offer several advantages including relatively flat terrain that minimizes grading costs, existing cleared land that reduces environmental impact, and good accessibility via existing farm roads and highways. The gently rolling hills to the north and northwest of town could also accommodate solar development, particularly on south-facing slopes that would naturally optimize panel orientation. These elevated areas often provide better drainage and may have fewer competing land uses than prime agricultural bottomland. Areas closer to major transmission infrastructure, including the corridors along US Highway 59 and State Highway 146, would be particularly attractive for utility-scale solar projects due to reduced interconnection costs. The relatively stable soils throughout much of the region can support the foundation requirements for large solar arrays without extensive site preparation.

Terrain Considerations for Solar Installation

The moderate topography around Livingston presents few significant challenges for solar development. The absence of steep grades means that most potential sites would not require extensive earthwork or specialized mounting systems designed for challenging terrain. The well-drained soils help prevent water accumulation that could interfere with equipment operation or site access. Forested areas, while abundant in the region, would generally not be suitable for solar development due to the environmental impact and cost of clearing mature timber. However, previously logged areas or sites where timber harvesting is already planned could present future opportunities for solar development on land that has been cleared for other purposes.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
