Manhattan, Illinois, located in the Northern Temperate Zone, offers a moderate potential for solar energy generation throughout the year. The location's seasonal variations in solar output highlight both opportunities and challenges for photovoltaic (PV) systems.

Seasonal Solar Performance

Summer stands out as the peak season for solar production, with an impressive 6.27 kWh per day for each kilowatt of installed capacity. Spring follows closely behind, generating 5.30 kWh/day. These warmer months provide excellent conditions for solar energy harvesting, with longer daylight hours and more direct sunlight.

Autumn sees a significant drop in production, yielding 3.39 kWh/day. Winter experiences the lowest output at 2.05 kWh/day, primarily due to shorter days and the sun's lower position in the sky.

Optimal Panel Positioning

For fixed-panel installations in Manhattan, Illinois, the ideal tilt angle is 36 degrees facing south. This orientation maximizes year-round solar energy capture, balancing the varying sun angles across seasons.

Environmental Considerations

While Manhattan's location is generally favorable for solar energy, there are some environmental factors to consider:

• Snow accumulation in winter can temporarily reduce panel efficiency. Installing panels at the recommended angle helps with snow shedding.
• Occasional severe weather, including thunderstorms and tornadoes, may pose risks. Robust mounting systems and hail-resistant panels can mitigate potential damage.

To enhance solar production, regular panel cleaning is advisable, especially after storms or during pollen seasons. Additionally, implementing a system that allows for seasonal tilt adjustments can further optimize energy capture throughout the year.

Overall, while Manhattan, Illinois experiences significant seasonal variations in solar output, it remains a viable location for solar PV installations with proper planning and maintenance.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

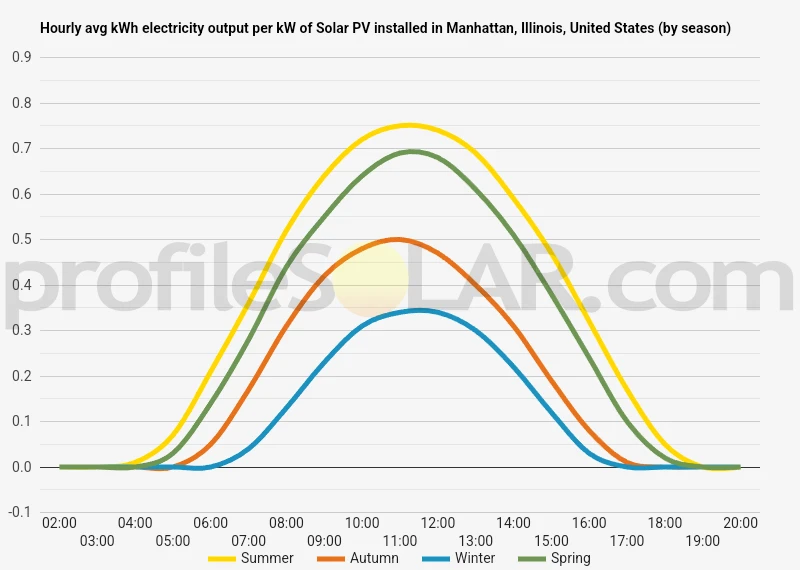

Solar output per kW of installed solar PV by season in Manhattan, Illinois

Seasonal solar PV output for Latitude: 41.4288, Longitude: -87.972 (Manhattan, Illinois, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 36° South in Manhattan, Illinois, United States

To maximize your solar PV system's energy output in Manhattan, Illinois, United States (Lat/Long 41.4288, -87.972) throughout the year, you should tilt your panels at an angle of 36° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Manhattan, Illinois, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Manhattan, Illinois, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 36° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
25° South in Summer	45° South in Autumn	56° South in Winter	34° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Manhattan, Illinois, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Manhattan, Illinois, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Manhattan, Illinois, United States

The area around Manhattan, United States, located at latitude 41.4288 and longitude -87.972, is characterized by a relatively flat topography typical of the Midwestern United States. This region, situated in northeastern Illinois, is part of the vast Prairie Plains that stretch across much of the central United States. The landscape is predominantly composed of gently rolling hills and expansive, level areas with minimal elevation changes. The topography of this area has been shaped by glacial activity during the last ice age, resulting in a mix of low-lying prairies, scattered woodlands, and numerous small streams and rivers. The nearby Des Plaines River and its tributaries have carved shallow valleys into the landscape, creating subtle variations in the otherwise flat terrain.

Suitable Areas for Large-Scale Solar PV

When considering locations for large-scale solar photovoltaic (PV) installations in the vicinity of Manhattan, several factors come into play. The relatively flat terrain in this region offers numerous potential sites that could be well-suited for solar energy development. Areas to the south and west of Manhattan would likely be most appropriate for large-scale solar PV projects. These locations typically feature vast, open spaces with minimal obstructions, allowing for maximum solar exposure throughout the day. The abundance of agricultural land in these areas provides ample opportunity for solar farm development without significant topographical challenges. Former industrial sites or brownfields in nearby communities could also be repurposed for solar energy production. These locations often have the advantage of existing infrastructure and minimal environmental impact concerns. It's important to note that while the topography is generally favorable for solar PV installations, other factors such as local zoning regulations, grid connectivity, and environmental considerations would need to be thoroughly assessed before implementing any large-scale solar projects in the region.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.
