Wabash, Indiana is a moderately suitable location for year-round solar energy generation, though it faces some typical challenges common to the Midwest United States. Located in the Northern Temperate Zone, this area experiences significant seasonal variation in solar production capacity.

Seasonal Solar Performance

The solar energy output varies considerably throughout the year at this location. Summer provides the strongest performance at 6.36 kWh per day per kW of installed solar capacity, making it the peak season for energy generation. Spring follows as the second-best season with 5.47 kWh per day per kW, offering substantial energy production as daylight hours increase and weather conditions improve. Autumn sees a notable decline to 3.55 kWh per day per kW as the region transitions toward winter conditions. Winter presents the most challenging period for solar generation, dropping to just 2.24 kWh per day per kW of installed capacity, representing roughly one-third of summer production levels.

Optimal Installation Setup

For maximum year-round energy production at Wabash, Indiana, solar panels should be installed at a fixed tilt angle of 35 degrees facing south. This angle has been calculated to optimize total annual solar output by accounting for the sun's varying position throughout the year and weighting for actual solar irradiance data.

Environmental and Weather Challenges

Several local factors can significantly impact solar energy production in this region and require careful consideration during installation:

• Snow accumulation: Winter weather brings substantial snowfall that can completely block solar panels
• Ice formation: Freezing conditions create ice buildup on panel surfaces
• Cloud cover: The Midwest experiences frequent overcast conditions, particularly during autumn and winter months
• Severe weather: Thunderstorms, high winds, and occasional tornadoes pose risks to solar installations
• Humidity and moisture: High humidity levels can affect equipment performance and longevity

Preventative Measures for Better Performance

To maximize solar energy production despite these challenges, several installation strategies should be implemented:

• Steeper tilt angles: Installing panels at angles steeper than 35 degrees can help snow slide off more easily
• Anti-reflective coatings: Special coatings can reduce ice adhesion and improve performance in low-light conditions
• Robust mounting systems: Heavy-duty mounting hardware designed for high wind loads and severe weather
• Proper drainage: Ensuring water cannot pool around electrical components
• Regular maintenance access: Designing installations that allow safe cleaning and snow removal
• Quality inverters: Using equipment rated for temperature extremes and humidity

Despite these challenges, Wabash, Indiana can still provide reasonable solar energy returns, particularly during the spring and summer months when production is quite strong. The key to success lies in proper system design that accounts for local weather patterns and implementing appropriate preventative measures during installation.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

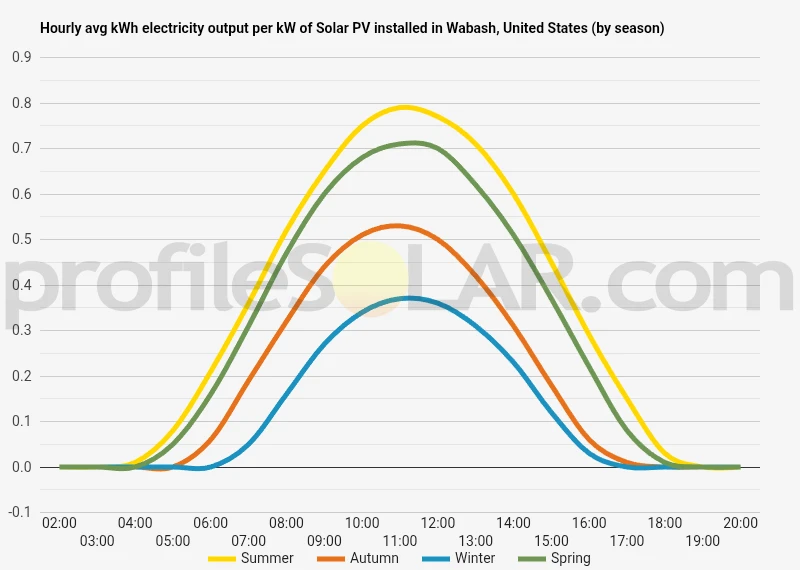

Solar output per kW of installed solar PV by season in Wabash

Seasonal solar PV output for Latitude: 40.7908, Longitude: -85.8327 (Wabash, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 35° South in Wabash, United States

To maximize your solar PV system's energy output in Wabash, United States (Lat/Long 40.7908, -85.8327) throughout the year, you should tilt your panels at an angle of 35° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Wabash, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Wabash, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 35° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
25° South in Summer	45° South in Autumn	54° South in Winter	33° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Wabash, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Wabash, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Wabash, United States

Topography Around Wabash

The terrain surrounding Wabash, Indiana is characterized by gently rolling agricultural land typical of the Great Lakes Plains region. This area sits within the broader Till Plains physiographic province, where glacial activity during the last ice age created a landscape of low hills, shallow valleys, and relatively flat expanses. The elevation changes are generally modest, with most variations occurring gradually across the landscape rather than through steep inclines or dramatic elevation shifts. The Wabash River flows through the region, creating a natural corridor that has influenced local topography over thousands of years. Along the river corridor, the land tends to be flatter with occasional floodplain areas, while moving away from the waterway reveals the characteristic undulating farmland that defines much of north-central Indiana. The overall elevation in the area ranges from approximately 700 to 850 feet above sea level, with most of the surrounding countryside falling within this relatively narrow band.

Agricultural Landscape and Land Use

The predominant land use around Wabash consists of agricultural fields devoted primarily to corn and soybean production. These large, open fields create expansive areas with minimal obstructions from trees or structures. The agricultural parcels are typically rectangular and can span several acres each, providing substantial continuous areas of relatively flat or gently sloping terrain. Scattered throughout the agricultural landscape are farmsteads, rural residences, and small woodlots that break up the otherwise open character of the region. Most wooded areas are relatively small and consist of deciduous trees that follow property boundaries, stream corridors, or surround farm buildings. The road network consists mainly of section roads laid out in a grid pattern, with state and county highways connecting the rural areas to Wabash and other nearby communities.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations would be found on the flatter agricultural lands located south and west of Wabash. These areas offer the most consistent gentle slopes and have fewer interruptions from wooded areas or residential development. The terrain in these directions tends to have longer stretches of open farmland with good access to existing road infrastructure. Areas with south-facing slopes would be particularly advantageous, as they naturally orient toward optimal sun exposure throughout the day. The gentle nature of most slopes in the region means that significant grading would likely be unnecessary for most potential solar sites, which helps reduce development costs and environmental impact. The agricultural fields located along the major transportation corridors, particularly those near State Road 13 and State Road 15, would offer additional advantages for solar development due to their proximity to existing electrical transmission infrastructure and improved access for construction and maintenance activities. These locations combine the favorable topographic conditions with practical considerations that are essential for successful large-scale solar installations. Fields that are currently in agricultural production but located on slightly higher elevations away from the immediate floodplain areas would also be prime candidates, as they typically have good drainage characteristics and are less likely to experience flooding or excessive moisture issues that could complicate solar panel installation and long-term operation.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
