Waterbury, Connecticut, located in the Northern Temperate Zone, presents a mixed picture for solar energy generation. This location experiences significant seasonal variations in solar output, which impacts the overall efficiency of photovoltaic (PV) systems throughout the year.

Seasonal Solar Performance

The solar energy production in Waterbury varies considerably across seasons. Summer stands out as the most productive period, with an average daily output of 5.86 kWh per kW of installed solar capacity. Spring follows closely behind, yielding 5.45 kWh/day. Autumn sees a noticeable decrease to 3.46 kWh/day, while winter experiences the lowest output at 1.99 kWh/day.

These figures indicate that Waterbury's location is most favorable for solar energy generation during the warmer months, particularly from late spring through early fall. The extended daylight hours and higher sun angles during this period contribute significantly to the increased energy production.

Optimal Panel Installation

For fixed panel installations in Waterbury, the ideal tilt angle to maximize year-round solar production is 36 degrees facing south. This angle is calculated to optimize the panels' exposure to sunlight throughout the year, taking into account the location's latitude and the Earth's elliptical orbit.

Environmental and Weather Factors

Several environmental and weather factors in Waterbury can impact solar energy production:

• Snow accumulation in winter can temporarily reduce panel efficiency
• Frequent cloud cover, especially during winter months, may limit solar exposure

To mitigate these issues, consider installing panels at a steeper angle to promote snow sliding off and using high-efficiency panels that perform better in low-light conditions. Regular maintenance, including snow removal, can also help maintain optimal performance.

While Waterbury's location presents challenges, particularly during winter months, it still offers substantial potential for solar energy generation. With proper planning and installation techniques, a solar PV system can provide significant energy output, especially during the peak summer months.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

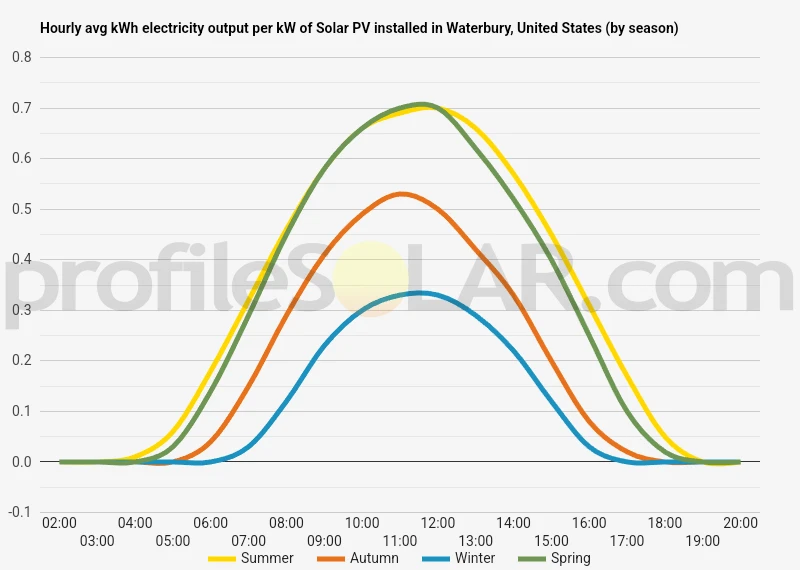

Solar output per kW of installed solar PV by season in Waterbury

Seasonal solar PV output for Latitude: 41.5564, Longitude: -73.0415 (Waterbury, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 36° South in Waterbury, United States

To maximize your solar PV system's energy output in Waterbury, United States (Lat/Long 41.5564, -73.0415) throughout the year, you should tilt your panels at an angle of 36° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Waterbury, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Waterbury, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 36° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
25° South in Summer	46° South in Autumn	56° South in Winter	34° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Waterbury, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Waterbury, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Waterbury, United States

The area surrounding Waterbury, Connecticut, is characterized by a diverse and hilly topography typical of the New England region. Situated in the Naugatuck River Valley, Waterbury is nestled among rolling hills and small mountains that are part of the larger Appalachian Mountain system. The landscape is a mix of urban development, suburban areas, and patches of forested land. To the west of Waterbury, the terrain becomes more rugged as it transitions into the foothills of the Berkshire Mountains. This area features steeper slopes and higher elevations, with some peaks reaching over 1,000 feet above sea level. The eastern side of Waterbury is generally less mountainous but still maintains a hilly character, with gentle to moderate slopes interspersed with flat areas along river valleys. The Naugatuck River runs through the heart of Waterbury, carving a north-south oriented valley that has historically been important for the city's development. This river valley provides some of the flatter terrain in the immediate vicinity of Waterbury, though it is relatively narrow and flanked by hills on both sides.

Potential Areas for Large-Scale Solar PV

When considering locations for large-scale solar photovoltaic (PV) installations near Waterbury, several factors come into play. Ideal sites would have relatively flat or gently sloping terrain, good sun exposure, and minimal shading from surrounding hills or forests. Based on these criteria, a few areas in the region show promise: The broader Naugatuck Valley, particularly areas to the north and south of Waterbury, offers some potential. These locations have more open, level ground that could accommodate large solar arrays. However, care must be taken to avoid flood-prone areas close to the river. Former industrial sites or brownfields in and around Waterbury could be repurposed for solar energy production. These areas often have the advantage of being relatively flat and already cleared of vegetation, making them suitable for solar panel installation. Agricultural lands in the surrounding rural areas, especially to the east and northeast of Waterbury, might be appropriate for solar development. These locations typically have open fields with good sun exposure, though the use of productive farmland for solar installations can be a contentious issue. It's important to note that while the hilly terrain around Waterbury presents challenges for large-scale solar projects, it also offers opportunities for smaller, distributed solar installations on south-facing slopes. These could potentially harness more direct sunlight throughout the day compared to installations on completely flat ground. Any large-scale solar PV project in the Waterbury area would require careful site selection, environmental impact assessments, and consideration of local zoning regulations. The region's varying topography means that each potential site would need to be evaluated individually to ensure its suitability for solar energy development.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
