Solar PV Analysis of Wayne, United States
Wayne, Pennsylvania, located in the Northern Temperate Zone, offers a moderate potential for solar energy generation throughout the year. The location's solar production capabilities vary significantly across seasons, with peak performance during summer months and reduced output in winter.
Seasonal Solar Performance
Summer stands out as the most productive season, with an impressive daily output of 5.99 kWh per kW of installed solar capacity. Spring follows closely behind, generating 5.36 kWh/day. Autumn sees a noticeable decline in production, yielding 3.43 kWh/day, while winter experiences the lowest output at 2.14 kWh/day.
The substantial difference between summer and winter production highlights the impact of changing daylight hours and sun angle throughout the year. This variation is typical for locations in the Northern Temperate Zone, where seasonal changes are more pronounced.
Optimal Panel Placement
To maximize year-round solar energy production in Wayne, fixed solar panels should be installed at a 35-degree tilt angle facing south. This orientation helps optimize sunlight capture across all seasons, balancing the higher summer sun with the lower winter sun angle.
Environmental Considerations
While Wayne's location is generally favorable for solar energy production, there are some environmental factors to consider:
- Snowfall: Wayne experiences moderate snowfall in winter, which can temporarily reduce panel efficiency. Installing panels at the recommended angle helps with snow shedding.
- Tree coverage: The area has significant tree cover, potentially causing shading issues. Careful site assessment and strategic panel placement can mitigate this problem.
To address these factors, consider using snow-resistant panel coatings and implementing regular maintenance schedules. Additionally, tree trimming or selecting an open area for installation can help maximize sun exposure.
Overall, while Wayne faces some challenges, particularly in winter, it remains a viable location for solar energy production. The strong performance in spring and summer can help offset the reduced winter output, making solar a worthwhile investment for residents and businesses in the area.
Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in the United States by location

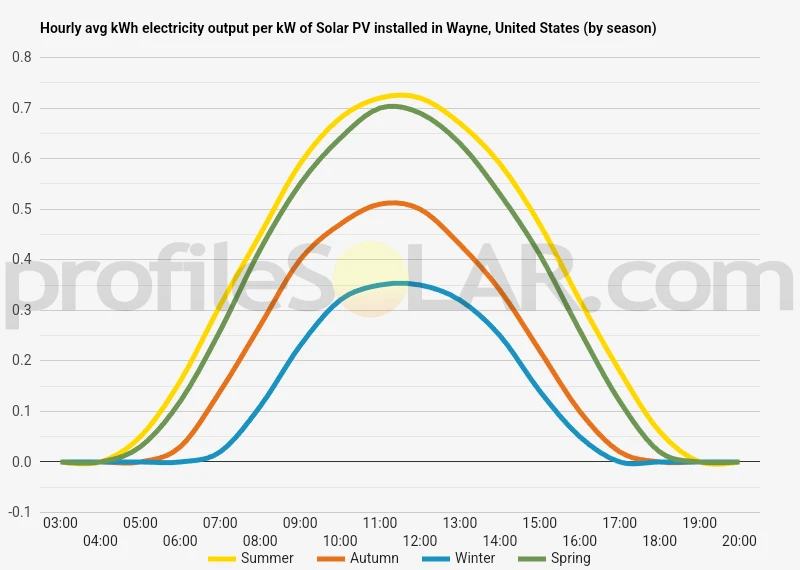

Solar output per kW of installed solar PV by season in Wayne
Seasonal solar PV output for Latitude: 40.0574, Longitude: -75.4017 (Wayne, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 35° South in Wayne, United States
To maximize your solar PV system's energy output in Wayne, United States (Lat/Long 40.0574, -75.4017) throughout the year, you should tilt your panels at an angle of 35° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Wayne, United States
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Wayne, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 35° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 24° South in Summer | 44° South in Autumn | 55° South in Winter | 33° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Wayne, United States
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Wayne, United States.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Wayne, United States
The area around Wayne, Pennsylvania, located at coordinates 40.0574°N, 75.4017°W, is characterized by gently rolling hills and shallow valleys typical of the Piedmont region. This topography is a result of centuries of erosion on the ancient Appalachian Mountains, creating a landscape of low, rounded hills interspersed with streams and small rivers.
The terrain in and around Wayne is not particularly steep or mountainous, but it does have noticeable elevation changes. The area features a mix of wooded areas, open fields, and suburban developments. Small creeks and tributaries of larger rivers, such as the Schuylkill River, wind through the landscape, creating natural drainage patterns.
Regarding large-scale solar PV installations, the topography of the immediate Wayne area presents some challenges. The ideal locations for solar farms are typically flat, open areas with minimal shading from trees or buildings. While there are some open spaces in the region, much of the land is either developed or forested, which could limit the available area for large solar installations.
However, within a broader radius of Wayne, there may be more suitable locations for solar PV projects. Areas to consider might include:
- Former agricultural lands or fallow fields that offer larger, unobstructed spaces.
- Reclaimed industrial sites or brownfields that are relatively flat and free from development.
- Gently sloping hillsides facing south, which can provide optimal sun exposure throughout the day.
It's important to note that while the topography around Wayne isn't ideal for massive solar farms, it doesn't preclude smaller-scale solar installations. Many buildings in the area could potentially benefit from rooftop solar panels, and there might be opportunities for community solar projects on available open land.
Any large-scale solar PV project in this region would require careful site selection, taking into account not only the topography but also local zoning laws, environmental considerations, and the existing power grid infrastructure. Environmental impact studies would be necessary to ensure that such projects don't negatively affect the local ecosystem or water resources.
United States solar PV Stats as a country
United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in United States?
Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.
