West Haven, Connecticut represents a moderately favorable location for year-round solar energy generation in the Northern Temperate Zone. The seasonal variation in solar output shows typical patterns for this latitude, with strong performance during warmer months and reduced but still viable production during winter.

Seasonal Solar Performance

The location experiences significant seasonal variation in solar energy production. Summer delivers the highest output at 5.81 kWh per day per kW of installed capacity, making it the peak season for solar generation. Spring follows closely with 5.57 kWh per day per kW, indicating excellent conditions during these months. Autumn production drops to 3.45 kWh per day per kW, while winter shows the lowest output at 2.02 kWh per day per kW. Despite the winter reduction, the location maintains year-round viability for solar energy systems. For optimal performance with a fixed panel installation at this location, panels should be tilted at 36 degrees facing south to maximize total annual energy production.

Environmental and Weather Challenges

Several factors in West Haven can impact solar energy production throughout the year:

• Snow accumulation during winter months can block panels and significantly reduce energy output
• Coastal location brings salt air that can corrode panel frames and mounting hardware over time
• New England weather patterns include frequent cloud cover and storms that reduce solar irradiance
• Ice formation can damage panels and create safety hazards during maintenance
• High humidity levels may affect electrical connections and inverter performance

Preventative Installation Measures

Proper installation techniques can help mitigate these regional challenges and maintain optimal energy production:

• Install panels at steeper angles (like the recommended 36 degrees) to promote natural snow shedding
• Use marine-grade aluminum frames and stainless steel mounting hardware to resist salt corrosion
• Apply anti-reflective coatings designed for coastal environments
• Ensure proper drainage and ventilation around electrical components
• Install monitoring systems to quickly identify performance issues during adverse weather
• Schedule regular cleaning and maintenance, particularly after winter weather events

The combination of reasonable year-round solar potential and proper installation practices makes West Haven a workable location for solar energy systems, though owners should expect lower winter production and plan maintenance accordingly.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

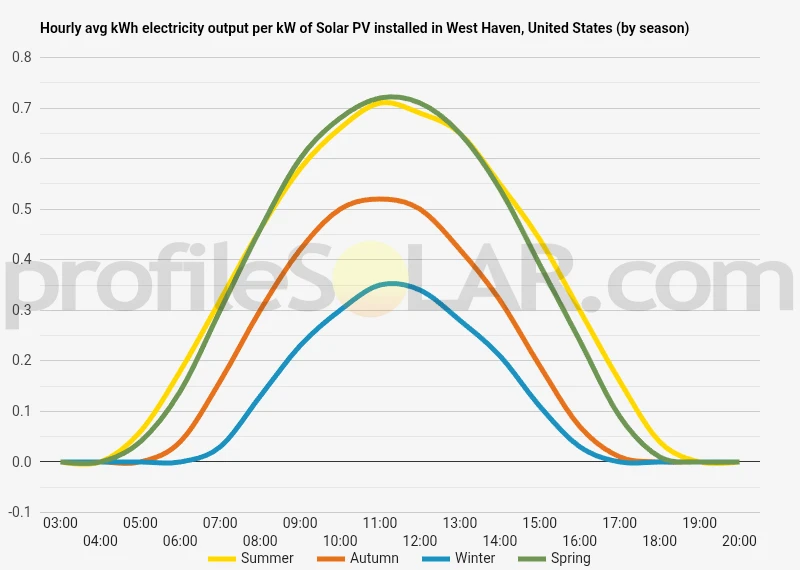

Solar output per kW of installed solar PV by season in West Haven

Seasonal solar PV output for Latitude: 41.2707, Longitude: -72.9471 (West Haven, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 36° South in West Haven, United States

To maximize your solar PV system's energy output in West Haven, United States (Lat/Long 41.2707, -72.9471) throughout the year, you should tilt your panels at an angle of 36° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for West Haven, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in West Haven, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 36° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
25° South in Summer	46° South in Autumn	56° South in Winter	34° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in West Haven, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in West Haven, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around West Haven, United States

Topographical Features of West Haven

West Haven sits along the northern shore of Long Island Sound in Connecticut, positioned on relatively flat to gently rolling coastal terrain. The city occupies a low-lying area that rarely exceeds 100 feet above sea level, with most developed areas sitting between 10 and 60 feet in elevation. The landscape consists primarily of glacial till deposits left behind from the last ice age, creating a mix of sandy soils near the coastline transitioning to clay and loam further inland. The immediate coastline features salt marshes, tidal creeks, and small beaches, while moving inland the terrain becomes characterized by gentle hills and shallow valleys. Several small waterways flow through the area, including the West River which forms part of the city's eastern boundary. The topography becomes slightly more varied as it extends northward away from the sound, with modest ridges and depressions creating a subtly undulating landscape.

Regional Solar Potential Assessment

The broader region around West Haven presents several promising areas for large-scale solar photovoltaic installations, with the most suitable locations typically found on the gently sloping uplands north and northeast of the city. These areas offer relatively unobstructed southern exposures with minimal shading from trees or structures, making them ideal for capturing maximum solar radiation throughout the day. Former agricultural lands and open fields in nearby towns like North Haven, Hamden, and Wallingford provide excellent opportunities for utility-scale solar development. These locations benefit from their elevated positions on the region's low ridges and plateaus, which offer better drainage and reduced risk of flooding compared to lower-lying coastal areas. The gradual slopes in these inland areas also facilitate easier installation and maintenance of solar arrays. Industrial and commercial zones along major transportation corridors, particularly near Interstate 95 and Route 34, present additional opportunities for large solar installations. Many of these areas feature flat or gently sloping terrain that was previously developed or cleared, reducing environmental concerns while providing good solar access. The existing infrastructure in these zones, including electrical transmission lines and road networks, makes them particularly attractive for solar development. Areas to the west toward Milford and Orange also show strong potential, especially on the higher ground away from the immediate coastal influence. These locations benefit from well-drained soils and open exposure, while still maintaining reasonable proximity to existing electrical infrastructure and population centers that would consume the generated power.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.
