Solar PV Analysis of West Lafayette, United States
Located in the United States, West Lafayette (latitude 40.4444 and longitude -86.9256) is a favorable location for photovoltaic (PV) solar power generation. The average energy yield varies by season due to the amount of sunlight available, characteristic of locations within the Northern Temperate Zone. During summer, each kilowatt of installed solar capacity can produce an average of 6.36 kWh per day, while in autumn this decreases to 3.56 kWh per day on average due to shorter daylight hours and lower sun intensity.
Winter sees a further reduction with an average daily yield of only 2.31 kWh per kilowatt installed because of the shortest days and lowest sun angle during this season; however, production increases again in spring with an output averaging at 5.48 kWh per day per kilowatt installed.
For optimal results from fixed panel installations at this location, it is recommended that panels are tilted at an angle of 35 degrees facing southwards to maximize exposure to sunlight throughout the year.
While West Lafayette's geographical positioning makes it suitable for solar power generation year-round, certain environmental factors could potentially hinder energy production levels significantly if not properly addressed during installation planning stages.
The local weather patterns may sometimes involve cloud cover or snowfall which can reduce light penetration onto panels thereby decreasing their output efficiency temporarily until conditions improve again; therefore it's crucial when installing solar PV systems here that preventative measures are taken such as ensuring good panel orientation for maximum light capture even on overcast days and incorporating efficient snow removal strategies (like angled installation design or heated panels) into your system maintenance plan where necessary so as not to compromise your long-term energy yields from these investments too much overall despite these occasional adverse weather events here.
Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in the United States by location

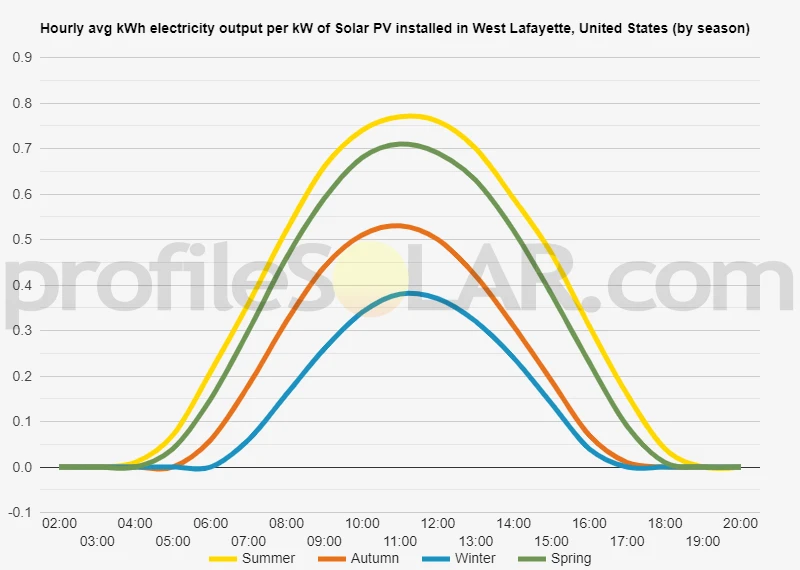

Solar output per kW of installed solar PV by season in West Lafayette
Seasonal solar PV output for Latitude: 40.4444, Longitude: -86.9256 (West Lafayette, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 35° South in West Lafayette, United States
To maximize your solar PV system's energy output in West Lafayette, United States (Lat/Long 40.4444, -86.9256) throughout the year, you should tilt your panels at an angle of 35° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for West Lafayette, United States
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in West Lafayette, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 35° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 24° South in Summer | 44° South in Autumn | 54° South in Winter | 33° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in West Lafayette, United States
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in West Lafayette, United States.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around West Lafayette, United States
The topography around West Lafayette, United States is generally flat with some rolling hills. Areas that would be most suited to large-scale solar PV installations include flat, open fields and rooftops in the area. The nearby towns of Lafayette and Montmorenci have several large open areas that could be used for this purpose. Additionally, the Purdue University campus has several large rooftops that could accommodate solar panels as well.
United States solar PV Stats as a country
United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in United States?
Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.
Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
