Westbrook, Maine offers moderate potential for solar PV energy generation, with seasonal variations that reflect its northern temperate location. Located at 43.6828° N, 70.3538° W, this site experiences significant fluctuations in solar energy production throughout the year.

Seasonal Solar Production

Solar panels in Westbrook perform best during summer months, generating approximately 5.76 kWh per day for each kilowatt of installed capacity. Spring follows closely behind with 5.32 kWh/day. Production drops considerably in autumn to 3.24 kWh/day, while winter sees the lowest output at just 1.90 kWh/day per kilowatt installed.

The substantial difference between summer and winter production (nearly three times more energy in summer) highlights the seasonal nature of solar resources at this latitude. May through August represents the prime solar generation period, with production gradually declining through fall before reaching its minimum in December and January.

Optimal Panel Installation

For fixed-panel installations in Westbrook, the ideal tilt angle to maximize year-round energy production is 38 degrees facing South. This angle optimizes the balance between summer and winter sun exposure, accounting for the sun's changing position throughout the year.

Environmental Considerations

Several environmental factors could impact solar production in Westbrook:

• Snow accumulation during winter months can significantly reduce output if panels become covered, requiring either manual clearing or steep installation angles to promote self-clearing
• Coastal fog and cloud cover from the nearby Atlantic Ocean may reduce production, particularly in spring and fall mornings
• Tree cover is substantial in the region, potentially creating shading issues that require careful site selection and possibly tree removal
• Ice storms occur periodically and can damage equipment if not properly rated for these conditions

Preventative Measures

To maximize production despite these challenges, several installation strategies can help. Using snow-shedding mounting systems with adequate clearance allows snow to slide off panels more easily. Selecting panels with anti-soiling glass helps mitigate production losses from pollen and environmental contaminants. Additionally, incorporating microinverters or power optimizers minimizes the impact of partial shading from trees or nearby structures.

While Westbrook's solar resource is not ideal compared to sunnier regions, properly designed systems can still provide meaningful energy production, particularly from late spring through early fall when output is strongest.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

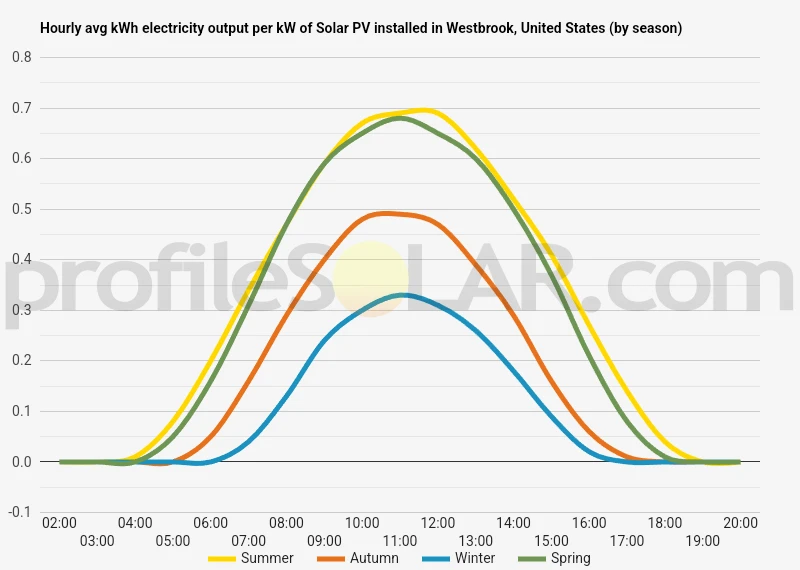

Solar output per kW of installed solar PV by season in Westbrook

Seasonal solar PV output for Latitude: 43.6828, Longitude: -70.3538 (Westbrook, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 38° South in Westbrook, United States

To maximize your solar PV system's energy output in Westbrook, United States (Lat/Long 43.6828, -70.3538) throughout the year, you should tilt your panels at an angle of 38° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Westbrook, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Westbrook, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 38° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
27° South in Summer	48° South in Autumn	58° South in Winter	36° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Westbrook, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Westbrook, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Westbrook, United States

Westbrook, Maine is situated in the southern part of the state, just west of Portland. The topography around Westbrook is characterized by gently rolling hills, small valleys, and lowland areas, typical of coastal New England. The city sits at an elevation of approximately 20-30 meters (65-100 feet) above sea level, with modest variations in the surrounding landscape.

Landforms and Water Features

The Presumpscot River is a defining topographical feature that flows through Westbrook, creating a natural corridor that has historically supported the city's development. The river valley forms a relatively flat floodplain surrounded by gradually rising terrain. Mill Brook and other smaller streams also contribute to the local watershed, creating additional valleys and drainage patterns throughout the area. To the west and northwest of Westbrook, the terrain becomes more varied with higher hills and ridges as the landscape transitions toward the foothills of the White Mountains. To the east, the land slopes gently toward Casco Bay and the Atlantic Ocean, which lies approximately 8 kilometers (5 miles) from the city center.

Vegetation and Land Cover

The region around Westbrook features a mix of deciduous and coniferous forest, open fields, suburban development, and some remaining agricultural lands. Forest cover is substantial in the less developed areas, particularly on steeper slopes and in riparian corridors along waterways.

Solar PV Suitability

For large-scale solar photovoltaic (PV) installations, several areas near Westbrook offer promising potential: The relatively flat former industrial areas and brownfields within and around Westbrook present opportunities for solar development without significant grading requirements. These sites often have existing grid connections, which reduces infrastructure costs. Open agricultural lands to the west and north of the city provide expansive, relatively level terrain ideal for larger solar arrays. These areas typically have fewer shading obstacles and allow for optimal panel orientation. Gently sloping south-facing hillsides in the surrounding rural areas offer natural advantages for solar collection efficiency. The modest hills northwest of Westbrook contain several such favorable exposures.

Topographical Considerations for Solar Development

When evaluating specific sites around Westbrook for solar PV installations, several topographical factors merit consideration: Slope aspect is critical, with south-facing slopes (or those oriented within 45 degrees of true south) providing optimal solar exposure in this northern hemisphere location. The rolling terrain around Westbrook offers many such favorable orientations. Elevation variations affect microclimate conditions such as fog frequency and snow accumulation. Higher elevation sites generally experience less persistent fog than the river valley locations, potentially increasing solar resource availability. Flood risk areas, particularly along the Presumpscot River and its tributaries, present challenges for solar development and should generally be avoided despite their flat topography. The moderately hilly nature of the region means that careful site selection can minimize earthwork requirements while maximizing solar exposure. Sites requiring extensive grading would increase project costs and environmental impacts. Overall, the diverse topography surrounding Westbrook provides multiple viable options for large-scale solar PV development, with the most suitable areas being the open, gently sloping lands away from flood-prone river valleys and with minimal forest clearing requirements.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
