Western Springs, Illinois presents a moderately favorable location for solar energy generation, though it faces typical challenges of the Northern Temperate Zone climate. The seasonal variation in solar output shows significant differences throughout the year that potential solar installers should understand.

Seasonal Solar Performance

Summer delivers the strongest solar performance at 6.25 kWh per day per kW of installed capacity, making it the peak season for energy generation. Spring follows as the second-best performing season with 5.26 kWh per day per kW, offering nearly as strong production as summer months. Autumn sees a notable decline to 3.32 kWh per day per kW as daylight hours shorten and sun angles become less favorable. Winter presents the most challenging conditions with only 2.01 kWh per day per kW, representing less than one-third of summer production levels. For optimal year-round energy capture, solar panels at this Western Springs location should be installed at a fixed tilt angle of 36 degrees facing south. This angle maximizes total annual production by balancing the sun's varying elevation throughout the seasons.

Environmental and Weather Challenges

Several local factors can significantly impact solar energy production in Western Springs and require careful consideration during installation planning. Snow accumulation during Illinois winters poses the most substantial challenge to solar output. Heavy snow cover can completely block panels for days or weeks, effectively reducing production to zero during coverage periods. Ice formation can create similar blockages while also adding dangerous weight loads to mounting systems. The region experiences frequent cloudy conditions, particularly during autumn and winter months, which reduces the intensity of solar radiation reaching panels. Lake Michigan's proximity can contribute to increased cloud cover and humidity levels that may affect performance. Severe weather events common to the area include hailstorms, high winds, and occasional tornadoes. These can cause physical damage to panels and mounting systems, leading to costly repairs and production losses.

Preventative Installation Measures

Strategic installation techniques can help mitigate these environmental challenges and maintain higher energy production levels. Installing panels at the recommended 36-degree tilt angle naturally helps snow slide off more easily than flatter installations. Selecting mounting systems rated for heavy snow loads ensures structural integrity during winter storms. Choosing panels with anti-reflective coatings and low-light performance capabilities helps maintain production during cloudy conditions. Installing micro-inverters or power optimizers can minimize the impact when individual panels are partially shaded or snow-covered.

• Use impact-resistant panels rated for hail damage
• Install robust mounting systems rated for high wind loads
• Ensure proper grounding and surge protection for severe weather
• Design adequate spacing between panel rows to prevent snow buildup
• Consider automated snow removal systems for large installations

Regular maintenance becomes particularly important in this climate, including pre-winter inspections, post-storm damage assessments, and occasional snow removal when accumulation persists beyond natural melting periods.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

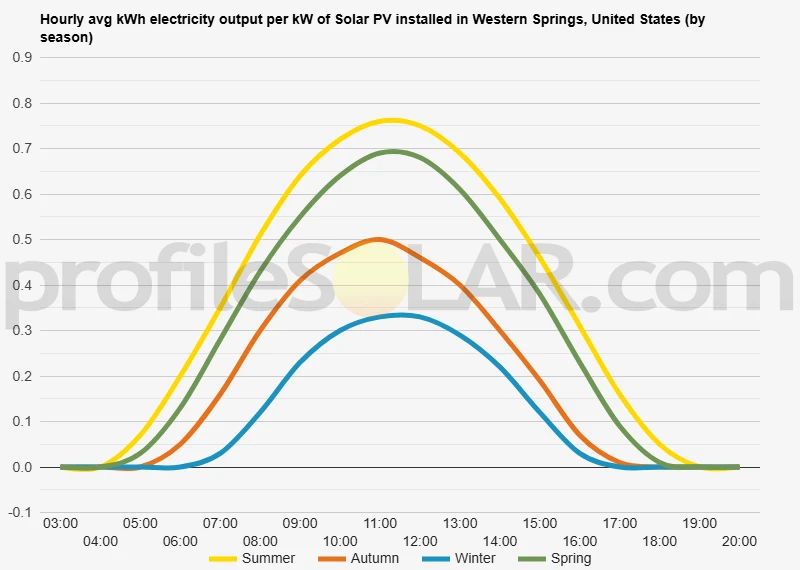

Solar output per kW of installed solar PV by season in Western Springs

Seasonal solar PV output for Latitude: 41.8045, Longitude: -87.9046 (Western Springs, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 36° South in Western Springs, United States

To maximize your solar PV system's energy output in Western Springs, United States (Lat/Long 41.8045, -87.9046) throughout the year, you should tilt your panels at an angle of 36° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Western Springs, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Western Springs, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 36° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
26° South in Summer	45° South in Autumn	56° South in Winter	35° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Western Springs, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Western Springs, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Western Springs, United States

Topographical Features of Western Springs

Western Springs sits within the relatively flat terrain characteristic of northeastern Illinois, positioned approximately 15 miles west of downtown Chicago. The area occupies part of the broader Chicago metropolitan region, which was shaped by ancient glacial activity that left behind a predominantly level landscape with gentle undulations. The elevation in and around Western Springs typically ranges from about 650 to 750 feet above sea level, creating subtle variations in the otherwise modest topography. The immediate vicinity features the typical suburban development pattern of the Chicago suburbs, with residential neighborhoods, commercial districts, and patches of preserved open space. Salt Creek runs through the area, creating a modest valley system that adds some topographical interest to the otherwise flat terrain. This waterway and its associated floodplain represent one of the few significant natural features that interrupt the generally uniform elevation profile of the region.

Regional Terrain Characteristics

Moving outward from Western Springs, the landscape continues to reflect the glacial origins of the greater Chicago area. The terrain consists primarily of prairie land that has been extensively developed for urban and suburban use, interspersed with agricultural areas further from the metropolitan core. Rolling hills are minimal, and where they do exist, they represent gentle swells rather than significant elevation changes. The broader DuPage County area, where Western Springs is located, maintains this characteristic flatness with occasional slight rises and depressions. Former wetlands and prairie areas have largely been drained and developed, though some preserved forest preserves and open spaces maintain glimpses of the original landscape. The Des Plaines River valley to the east and various tributaries create the most notable topographical features in the wider region.

Optimal Areas for Large-Scale Solar Development

The flat to gently rolling terrain throughout the Western Springs region presents excellent opportunities for large-scale solar photovoltaic installations. The most suitable areas would be the undeveloped agricultural lands that extend westward and southward from the immediate suburban area. These locations offer the necessary flat topography, minimal shading from trees or structures, and adequate space for extensive solar arrays. Particularly promising areas include the agricultural zones in western DuPage County and adjacent portions of Kane and Will counties. These areas maintain the beneficial flat terrain while being far enough from dense residential development to accommodate large installations without significant land use conflicts. The former prairie lands in these areas typically have minimal tree cover and face few topographical obstacles that would complicate solar panel placement or maintenance access. Industrial zones and brownfield sites within the broader metropolitan area also present opportunities, especially where large flat parcels exist with good transportation access. Many of these locations benefit from existing electrical infrastructure, which can reduce the costs associated with connecting solar installations to the power grid. The relatively uniform terrain throughout the region means that most potential sites would require minimal grading or site preparation beyond standard construction practices.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
