Winchendon, Massachusetts, located in the Northern Temperate Zone, offers varying conditions for solar PV energy generation throughout the year. This location experiences significant seasonal fluctuations in solar energy production, with the highest output during summer months and considerably reduced generation in winter.

Seasonal Solar Production

Solar panels in Winchendon produce energy at different rates throughout the year. In summer, panels generate an impressive 5.70 kWh per day for each kilowatt installed, making this the peak production season. Spring follows closely with 5.34 kWh/day per kW. Production drops considerably in autumn to 3.22 kWh/day per kW, while winter sees the lowest output at just 1.86 kWh/day per kW of installed capacity.

The substantial difference between summer and winter production (nearly three times more energy in summer) indicates that Winchendon experiences typical New England seasonal solar patterns, with long, sunny summer days contrasting with shorter, often overcast winter days.

Optimal Panel Installation

For fixed solar panel installations in Winchendon, the ideal tilt angle to maximize year-round production is 37 degrees facing South. This angle represents the optimized position that balances energy collection across all seasons, accounting for the Earth's elliptical orbit and Winchendon's specific latitude.

Environmental and Weather Considerations

Several significant factors can impact solar production in Winchendon:

• Snow accumulation during winter months can temporarily cover panels, reducing output during an already low-production season
• Tree shading is a considerable concern in this heavily forested region
• New England's variable weather patterns, including frequent cloud cover in winter and early spring
• Occasional severe weather events like nor'easters and ice storms

Recommended Preventative Measures

To maximize solar production in Winchendon, several installation strategies can help mitigate these challenges:

• Install panels at the recommended 37-degree tilt to optimize year-round production
• Consider slightly steeper angles (40-45 degrees) if winter production is prioritized, as this promotes snow sliding off panels
• Conduct thorough shading analysis and tree management to minimize forest shading impacts
• Use micro-inverters or power optimizers to reduce the impact of partial shading
• Install panels on elevated racks to allow airflow beneath, reducing snow accumulation
• Select panels with anti-soiling glass to minimize dirt and debris buildup

While Winchendon's location provides excellent solar potential during spring and summer, system design should account for the significant seasonal variation to ensure optimal performance throughout the year.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

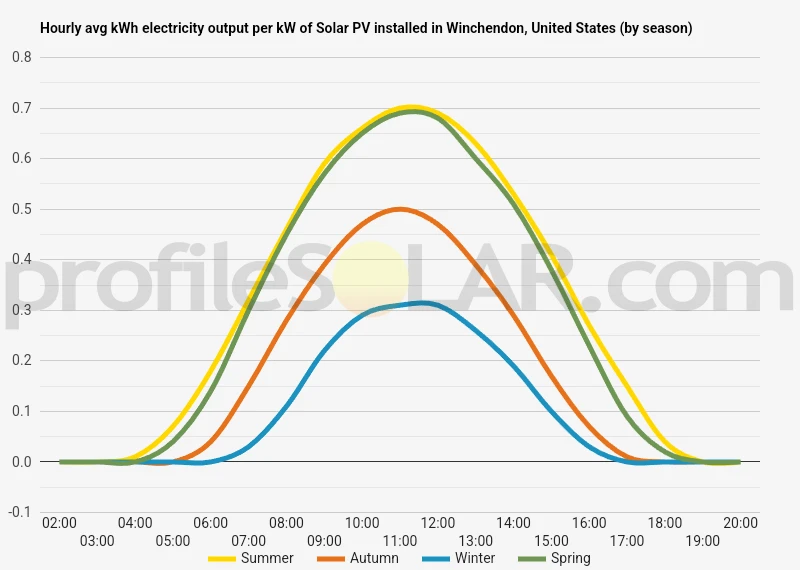

Solar output per kW of installed solar PV by season in Winchendon

Seasonal solar PV output for Latitude: 42.6789, Longitude: -72.0477 (Winchendon, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 37° South in Winchendon, United States

To maximize your solar PV system's energy output in Winchendon, United States (Lat/Long 42.6789, -72.0477) throughout the year, you should tilt your panels at an angle of 37° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Winchendon, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Winchendon, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 37° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
26° South in Summer	47° South in Autumn	57° South in Winter	36° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Winchendon, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Winchendon, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Winchendon, United States

The landscape around Winchendon, Massachusetts presents a diverse topography characteristic of New England's north-central region. Situated in Worcester County near the New Hampshire border, Winchendon occupies terrain that was dramatically shaped by glacial activity during the last ice age.

Topographical Features

Winchendon sits within a transitional zone between the higher elevations of the Monadnock Highlands to the north and west and the lower Worcester Plateau to the south and east. The area features rolling hills, numerous small valleys, and scattered wetlands. Elevation in the region generally ranges from approximately 800 to 1,200 feet above sea level, with some higher points in the surrounding areas. The town itself is positioned along the Millers River watershed, with the river and its tributaries carving gentle valleys through the landscape. These waterways have historically provided both natural resources and challenges for development. Several ponds and small lakes dot the landscape, including Whitney Pond, Lake Dennison, and Millers River impoundments. Forested areas dominate much of the undeveloped land, with mixed hardwood and conifer stands covering many of the hillsides. These woodlands transition between northern hardwood forests and central hardwood forests, reflecting the region's position in an ecological transition zone.

Potential for Solar PV Development

When considering large-scale solar photovoltaic development near Winchendon, several topographical factors become important. The most suitable areas would generally include: South-facing slopes provide ideal orientation for solar collection in the Northern Hemisphere. The rolling hills around Winchendon offer numerous south-facing aspects that would maximize solar exposure throughout the day and across seasons. The relatively modest elevations of the Worcester Plateau to the south and east of Winchendon present more gradual terrain that would be easier to develop for large installations. These areas typically require less grading and site preparation than steeper terrain. Former agricultural lands or cleared areas represent prime opportunities for solar development. Several such parcels exist in the broader region, particularly in the flatter areas south of Winchendon proper. These locations often combine favorable topography with existing access to transportation infrastructure. Areas to avoid would include the numerous wetlands, stream corridors, and steeper slopes that characterize portions of the landscape. The northern and western approaches toward the Monadnock region feature more challenging terrain with greater elevation changes that would complicate large-scale installations. The region's glacial history has left behind some ideal solar development sites in the form of elevated, well-drained plateaus and terraces. These landforms often provide both good solar exposure and reduced risk of flooding or drainage issues that could affect infrastructure. From a topographical perspective, the transitional landscapes south and southeast of Winchendon, where the terrain begins to flatten toward the Worcester Plateau, likely represent the most promising areas for significant solar development, balancing favorable orientation with more manageable terrain.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
