Winter Haven, Florida, located in the Northern Sub Tropics, offers a favorable environment for solar energy generation throughout the year. With its geographical position at 27.9822° N latitude and -81.6706° W longitude, this location receives substantial sunlight, making it an attractive option for solar PV installations.

Seasonal Solar Performance

Solar energy production in Winter Haven varies across seasons, with spring and summer being the most productive periods. In spring, solar panels can generate an impressive 6.88 kWh per day for each kW of installed capacity. Summer follows closely with 5.99 kWh/day. Autumn sees a slight decrease to 4.95 kWh/day, while winter experiences the lowest output at 4.30 kWh/day per kW installed.

Optimal Panel Positioning

To maximize year-round solar energy production in Winter Haven, fixed solar panels should be tilted at a 25-degree angle facing south. This optimal angle ensures the panels capture the most sunlight throughout the year, accounting for the sun's changing position across seasons.

Environmental Considerations

While Winter Haven's climate is generally conducive to solar energy production, there are a few environmental factors to consider:

1. Hurricanes and tropical storms: Florida's susceptibility to these weather events can potentially damage solar installations. To mitigate this risk, use hurricane-rated mounting systems and panels designed to withstand high winds.
2. Humidity and rainfall: The area's high humidity and frequent rainfall can lead to algae growth on panels, reducing efficiency. Regular cleaning and maintenance can help prevent this issue.
3. Lightning: Florida experiences frequent thunderstorms, especially in summer. Installing proper grounding and surge protection systems is crucial to safeguard solar equipment from lightning strikes.

Despite these challenges, Winter Haven's abundant sunshine makes it an excellent location for solar energy production. With proper installation techniques and maintenance, solar PV systems can perform efficiently year-round, providing a sustainable and cost-effective energy solution for residents and businesses alike.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

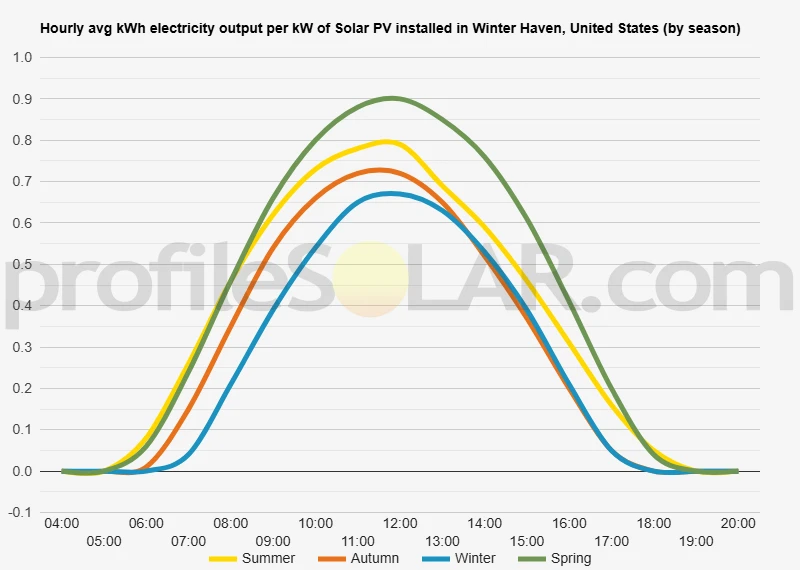

Solar output per kW of installed solar PV by season in Winter Haven

Seasonal solar PV output for Latitude: 27.9822, Longitude: -81.6706 (Winter Haven, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 25° South in Winter Haven, United States

To maximize your solar PV system's energy output in Winter Haven, United States (Lat/Long 27.9822, -81.6706) throughout the year, you should tilt your panels at an angle of 25° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Winter Haven, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Winter Haven, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
12° South in Summer	33° South in Autumn	43° South in Winter	21° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Winter Haven, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Winter Haven, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Winter Haven, United States

Winter Haven, located in central Florida, is characterized by a relatively flat topography typical of the region. The area around Winter Haven is part of the Central Florida Ridge, a gently rolling landscape with subtle elevation changes. The city itself sits at an average elevation of around 165 feet (50 meters) above sea level. The surrounding landscape is dotted with numerous lakes, a defining feature of this part of Florida. These lakes, formed by sinkholes in the underlying limestone bedrock, create a mosaic of water bodies interspersed with land. The terrain between the lakes is generally flat to slightly undulating, with occasional small hills and depressions.

Solar PV Potential

The topography and climate of the Winter Haven area make it well-suited for large-scale solar photovoltaic (PV) installations. The flat terrain and abundance of open spaces provide ideal conditions for solar farms. Several nearby areas could be particularly suitable for such projects: To the east and southeast of Winter Haven, there are expansive agricultural lands and former citrus groves. These areas offer large, unobstructed spaces that receive ample sunlight throughout the year. The flat terrain would minimize the need for extensive land preparation, reducing installation costs. The regions to the west and southwest of Winter Haven, towards Bartow and Lakeland, also present opportunities for solar development. These areas feature a mix of agricultural land and open spaces that could be repurposed for solar farms. North of Winter Haven, towards Haines City, there are additional tracts of land that could accommodate large-scale solar installations. The gently rolling landscape in this direction would not significantly impede solar panel placement. It's worth noting that while the abundance of lakes in the area might seem to limit available land, the spaces between these water bodies often provide suitable locations for solar projects. Additionally, the high water table and potential for flooding in some low-lying areas would need to be considered when planning solar installations. Overall, the topography around Winter Haven is conducive to solar PV development, with numerous potential sites within a short distance of the city. The combination of flat terrain, open spaces, and Florida's abundant sunshine makes this region an attractive option for large-scale solar energy projects.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
