Wood Dale, Illinois, located in the Northern Temperate Zone, presents a moderately favorable location for solar energy generation, though with significant seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Energy Production

The solar energy output at this location varies dramatically throughout the year. Summer provides the highest production at 6.25 kWh per day per kW of installed solar capacity, making it the peak season for solar generation. Spring follows as the second-best season with 5.26 kWh per day per kW, offering substantial energy production as daylight hours increase and the sun's angle improves. Autumn sees a notable decline to 3.32 kWh per day per kW as the sun's path lowers and weather patterns change. Winter presents the most challenging conditions, dropping to just 2.01 kWh per day per kW of installed capacity, representing less than one-third of summer production levels.

Optimal Installation Configuration

For maximum year-round energy production at Wood Dale, solar panels should be installed at a fixed tilt angle of 36 degrees facing south. This angle has been calculated to optimize total annual solar output by accounting for the sun's varying elevation throughout the year and weighting the angles based on solar irradiance data.

Environmental and Weather Challenges

Several local factors can significantly impact solar energy production in Wood Dale and require careful planning during installation:

• Snow accumulation: Illinois winters bring substantial snowfall that can completely block solar panels, eliminating energy production for days or weeks
• Ice formation: Freezing rain and ice storms can coat panels with thick ice layers that are difficult to remove naturally
• Frequent cloud cover: The region experiences extended periods of overcast skies, particularly during winter months
• Severe weather events: Thunderstorms with hail, high winds, and tornadoes pose risks to solar installations

Preventative Measures for Enhanced Production

To maximize solar energy output despite these challenges, several installation strategies prove effective:

• Optimal panel positioning: The recommended 36-degree tilt helps snow slide off more easily than flatter installations
• Quality mounting systems: Use robust mounting hardware rated for high wind loads and hail impact
• Strategic spacing: Proper spacing between panel rows prevents snow buildup and shadowing issues
• Accessible design: Plan installations that allow safe snow removal when necessary
• Bypass diodes: Ensure panels have quality bypass diodes to maintain partial production when sections are covered

Overall Assessment

While Wood Dale's location provides decent solar potential during spring and summer months, the dramatic winter production decline and weather-related challenges make it a moderately suitable rather than ideal location for solar energy generation. Success depends heavily on proper installation techniques and realistic expectations about seasonal performance variations. The location works best for users who can take advantage of net metering programs, allowing excess summer production to offset winter shortfalls. Without such programs, the winter production levels may prove insufficient for energy independence during the coldest months.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

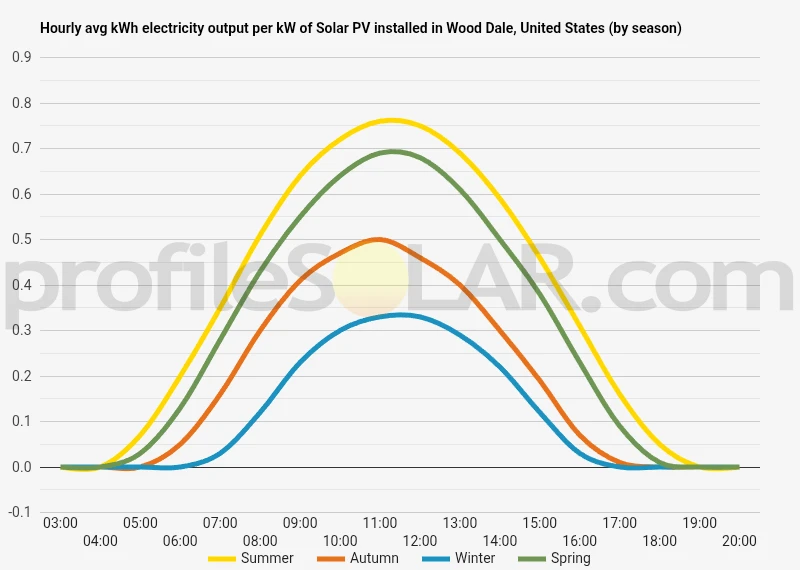

Solar output per kW of installed solar PV by season in Wood Dale

Seasonal solar PV output for Latitude: 41.9574, Longitude: -87.9808 (Wood Dale, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 36° South in Wood Dale, United States

To maximize your solar PV system's energy output in Wood Dale, United States (Lat/Long 41.9574, -87.9808) throughout the year, you should tilt your panels at an angle of 36° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Wood Dale, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Wood Dale, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 36° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
26° South in Summer	45° South in Autumn	56° South in Winter	35° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Wood Dale, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Wood Dale, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Wood Dale, United States

Topographical Features of Wood Dale

Wood Dale sits in the heart of the Chicago metropolitan area in northeastern Illinois, positioned on relatively flat terrain that characterizes much of the upper Midwest. The landscape around Wood Dale represents typical glaciated prairie topography, formed by ancient ice sheets that once covered this region. The area features gentle, rolling hills with minimal elevation changes, creating an expansive flatland environment that extends in all directions from the community. The immediate vicinity of Wood Dale lies within the Des Plaines River valley system, though the river itself flows several miles to the east. This positioning places the area on stable, well-drained ground that sits slightly elevated above the main floodplain. The terrain gradually slopes toward the Des Plaines River corridor, but these changes in elevation are subtle and occur over considerable distances.

Regional Terrain Characteristics

The broader region surrounding Wood Dale consists of former tallgrass prairie that has been extensively developed for suburban and agricultural use. The original landscape featured vast open spaces with scattered oak groves and wetland areas, most of which have been modified through human development. The underlying geology consists primarily of deep, fertile soils deposited by glacial activity, creating a stable foundation across the region. Elevation changes throughout the area are modest, typically varying by only a few dozen feet over several miles. This creates an environment where long sight lines are possible across much of the landscape, interrupted primarily by human-made structures rather than natural topographical features. The terrain lacks significant hills, valleys, or other dramatic landforms that might create shadows or complicate land use planning.

Optimal Areas for Large-Scale Solar Development

The flat to gently rolling topography surrounding Wood Dale presents excellent opportunities for large-scale solar photovoltaic installations. The most suitable areas lie to the west and southwest of Wood Dale, where agricultural land remains relatively undeveloped and offers expansive open spaces. These areas benefit from minimal topographical obstacles and consistent southern exposure across large tracts of land. Agricultural fields in nearby communities such as Bloomingdale, Roselle, and areas extending toward Elgin provide ideal conditions for solar development. The flat terrain eliminates concerns about shading from hills or ridges, while the open character of the landscape allows for efficient panel placement and maintenance access. These areas also tend to have fewer existing structures that might interfere with solar installations. The region north and northwest of Wood Dale, extending toward Schaumburg and Hoffman Estates, also contains suitable terrain for solar development, particularly in areas that remain undeveloped or are used for agriculture. The consistent flatness of the terrain in these directions ensures that large solar arrays could be installed without significant grading or site preparation related to topographical challenges. Areas to the east, while topographically suitable, tend to be more densely developed due to proximity to major transportation corridors and established communities. However, industrial areas and large commercial properties in these directions could still accommodate substantial solar installations, taking advantage of the favorable flat terrain that characterizes the entire region.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
