Wyncote, Pennsylvania is a moderately good location for solar energy generation, though it experiences significant seasonal variation typical of the Northern Temperate Zone climate.

Seasonal Solar Performance

The solar energy output at this location varies dramatically throughout the year. Summer provides the strongest performance at 5.96 kWh per day per kW of installed solar capacity, making it the peak season for energy generation. Spring follows as the second-best season with 5.32 kWh per day per kW, offering nearly comparable output to summer months. Autumn sees a notable decline to 3.37 kWh per day per kW, while winter presents the most challenging conditions with only 2.11 kWh per day per kW. This represents less than half the energy production compared to peak summer performance.

Optimal Installation Configuration

For maximum year-round energy production at Wyncote, solar panels should be installed at a fixed tilt angle of 35 degrees facing south. This angle has been calculated to optimize total annual solar output by accounting for the sun's changing position throughout the year and weighting for actual solar irradiance data.

Local Factors Affecting Solar Production

Several environmental and weather factors in the Wyncote area can significantly impact solar energy generation:

• Snow accumulation: Winter snow can completely block solar panels, eliminating energy production until cleared
• Deciduous tree coverage: The heavily forested Pennsylvania landscape means seasonal shading from trees that lose leaves in winter but create shade in summer
• Frequent cloud cover: The region experiences considerable cloudy weather, particularly during winter months
• Ice formation: Freezing rain and ice storms can coat panels and reduce efficiency

Installation Strategies for Improved Performance

To maximize solar energy production despite these challenges, several preventative measures should be considered during installation. Panels should be positioned with adequate clearance from deciduous trees, accounting for both current tree height and future growth over the system's 25-year lifespan. Installing panels at the optimal 35-degree tilt angle not only maximizes sun exposure but also helps snow slide off more easily compared to flatter installations. Adding a slight overhang or ensuring panels extend beyond roof edges can prevent ice dam formation that might shade lower panels. Consider installing panels on south-facing roof sections or ground-mounted systems with minimal tree obstruction. Regular maintenance access should be planned for snow removal during winter months, though safety precautions are essential when working on snow-covered or icy surfaces. While Wyncote's solar potential is respectable, the significant winter reduction in output means residents should plan for substantially lower energy generation during the coldest months of the year.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

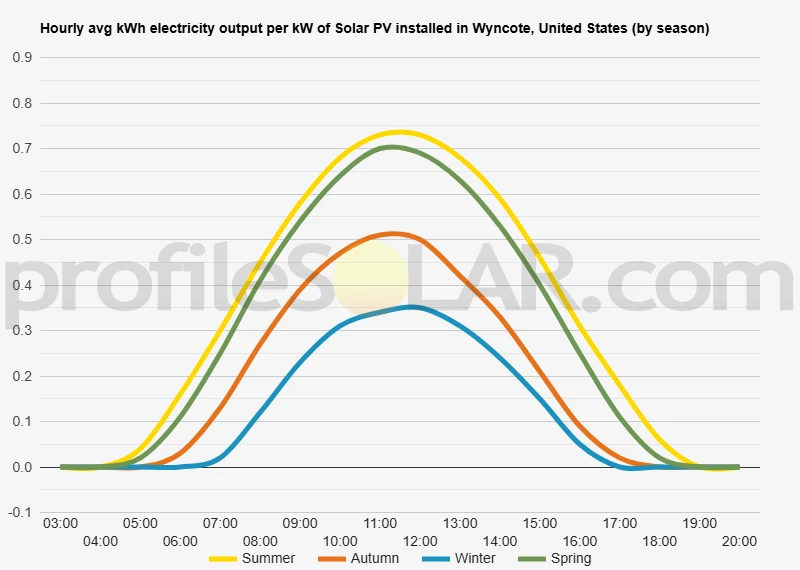

Solar output per kW of installed solar PV by season in Wyncote

Seasonal solar PV output for Latitude: 40.0857, Longitude: -75.1494 (Wyncote, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 35° South in Wyncote, United States

To maximize your solar PV system's energy output in Wyncote, United States (Lat/Long 40.0857, -75.1494) throughout the year, you should tilt your panels at an angle of 35° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Wyncote, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Wyncote, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 35° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
24° South in Summer	44° South in Autumn	55° South in Winter	33° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Wyncote, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Wyncote, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Wyncote, United States

Topographical Features Around Wyncote

Wyncote sits in the gently rolling landscape of southeastern Pennsylvania, positioned within the Piedmont physiographic province. This region is characterized by relatively modest elevation changes and a terrain that transitions gradually from the coastal plain to the east toward the foothills of the Appalachian Mountains to the west. The immediate area around Wyncote features elevations ranging from approximately 100 to 300 feet above sea level, with the land gently undulating rather than presenting steep slopes or dramatic elevation changes. The topography consists primarily of low hills and shallow valleys that were shaped by ancient geological processes and subsequent glacial activity. These gentle ridges and valleys create a landscape with moderate slopes, typically ranging from 2 to 8 percent grade across most of the region. The area is well-drained, with several small creeks and tributaries flowing through the valleys, eventually making their way toward larger waterways like the Delaware River to the east.

Soil and Surface Conditions

The underlying geology consists mainly of metamorphic rocks, including schist and gneiss formations that are typical of the Piedmont region. These bedrock formations are generally overlain by glacial till and weathered rock materials that have created moderately deep soils. The surface conditions are predominantly stable, with minimal erosion concerns on the gentler slopes that characterize much of the area. Agricultural land use has historically been common throughout this region, indicating that the soils are generally fertile and the terrain is suitable for various types of development. Many areas feature cleared or partially cleared land that was previously used for farming, creating open spaces with relatively level ground that could potentially accommodate large installations.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations would be found on the broader, flatter ridgetops and gentle south-facing slopes throughout the region. These areas offer the best combination of accessible terrain and favorable solar exposure conditions. The elevated ridges, particularly those running in an east-west orientation, provide extensive flat or gently sloping surfaces that would minimize grading requirements for solar array installation. Former agricultural areas present particularly attractive opportunities, as these locations typically feature cleared land with established access routes and relatively level terrain. Many of these sites have slopes of less than 5 percent, which is ideal for solar panel mounting systems and reduces both installation costs and ongoing maintenance challenges. The areas immediately southwest and southeast of Wyncote contain several promising locations where the topography opens up into broader, less dissected terrain. These zones feature larger contiguous areas of suitable land, which would be essential for utility-scale solar developments that require significant acreage. The gentle valley floors in these areas also present opportunities, particularly where they are oriented to maximize southern exposure while maintaining reasonable access to existing infrastructure. Industrial or previously developed sites within the region may also offer excellent potential, as these locations often feature the level ground and infrastructure access necessary for large-scale solar installations while avoiding conflicts with agricultural or residential land uses.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
