Wheeling, West Virginia shows moderate potential for solar energy generation, with significant seasonal variation that reflects its location in the Northern Temperate Zone. The solar output data reveals a typical pattern for this latitude, with summer producing the highest energy yields and winter showing the lowest performance.

Seasonal Solar Performance

The solar energy production at this location varies considerably throughout the year. Summer delivers the strongest performance at 6.09 kWh per day per kW of installed capacity, making it the prime season for solar generation. Spring follows as the second-best season with 5.32 kWh per day per kW, offering excellent energy production as daylight hours increase and sun angles improve. Autumn sees a notable decline to 3.39 kWh per day per kW as the sun's path lowers and weather patterns shift. Winter presents the greatest challenge for solar production, dropping to just 1.80 kWh per day per kW, which is less than one-third of summer output. For optimal year-round energy production from fixed solar panels at this Wheeling location, panels should be tilted at 34 degrees facing south. This angle maximizes the total annual solar collection by balancing the sun's varying seasonal positions throughout the year.

Local Factors Affecting Solar Production

Several environmental and weather factors in the Wheeling area can significantly impact solar energy generation. The region's climate patterns and geographical characteristics present specific challenges that require careful consideration during solar installation planning. Coal and industrial pollution historically associated with the Ohio Valley region can create atmospheric haze that reduces solar irradiance reaching panels. Additionally, the area's proximity to rivers and valleys can contribute to morning fog formation, particularly during autumn and winter months when solar production is already reduced. The region experiences typical Appalachian weather patterns including frequent cloud cover, especially during winter months. Snow accumulation during winter can completely block solar panels, further reducing the already limited winter production capacity.

Preventative Measures for Enhanced Solar Production

Several strategies can help maximize solar energy production despite local challenges:

• Install panels with adequate spacing and proper mounting to facilitate natural snow shedding and allow for safe manual snow removal when necessary
• Choose high-quality anti-reflective glass coatings that perform better in low-light and hazy conditions
• Implement regular cleaning schedules to remove dust, pollen, and atmospheric pollutants that can accumulate on panel surfaces
• Consider microinverters or power optimizers to minimize the impact when individual panels are partially shaded or snow-covered
• Position installations to avoid morning shade from nearby structures or terrain, as this is particularly important during months when fog is common

Proper system design should also account for the dramatic seasonal variation by potentially oversizing the array if space and budget allow, helping to compensate for the significantly reduced winter production. Battery storage systems can also help capture excess energy during peak production months for use during lower-output periods.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

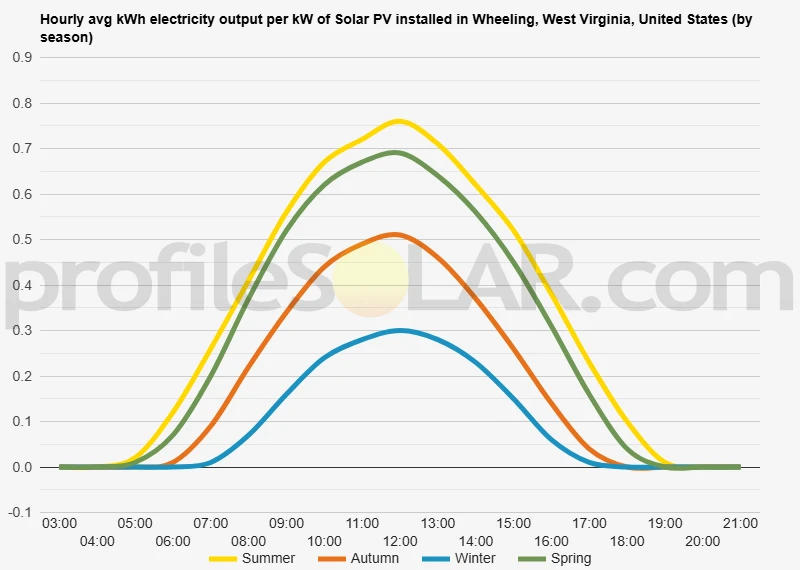

Solar output per kW of installed solar PV by season in Wheeling, West Virginia

Seasonal solar PV output for Latitude: 40.064, Longitude: -80.7209 (Wheeling, West Virginia, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 34° South in Wheeling, West Virginia, United States

To maximize your solar PV system's energy output in Wheeling, West Virginia, United States (Lat/Long 40.064, -80.7209) throughout the year, you should tilt your panels at an angle of 34° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Wheeling, West Virginia, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Wheeling, West Virginia, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 34° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
24° South in Summer	44° South in Autumn	55° South in Winter	33° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Wheeling, West Virginia, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Wheeling, West Virginia, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Wheeling, West Virginia, United States

Topographical Features of the Wheeling Area

Wheeling sits in the northern panhandle of West Virginia along the Ohio River, nestled within the Appalachian foothills. The city itself occupies a relatively narrow valley carved by the Ohio River, with steep hills rising on both sides of the waterway. This creates a distinctive bowl-like topography where the urban core lies at approximately 650 feet above sea level, while the surrounding ridgelines climb to elevations of 1,200 to 1,400 feet.

The terrain immediately surrounding Wheeling is characterized by rolling hills and deeply incised valleys typical of the unglaciated Appalachian Plateau. These hills generally run in a northeast-southwest orientation, following the geological structure of the underlying bedrock. The landscape features numerous steep-sided ridges separated by narrow valleys, many of which contain small streams that eventually drain into the Ohio River.

Moving outward from the river valley, the topography becomes increasingly rugged with steeper slopes and more pronounced elevation changes. The area experiences significant relief variations, with elevation differences of 500 to 800 feet between valley floors and ridge tops being common within short horizontal distances. This creates a complex mosaic of slopes facing different directions, with varying degrees of steepness and exposure to sunlight throughout the day.

Optimal Areas for Large-Scale Solar Development

The most promising locations for large-scale solar photovoltaic installations around Wheeling would be the broader ridge tops and gently sloping plateaus that extend away from the immediate river valley. These elevated areas, particularly those lying to the south and southwest of the city, offer several advantages for solar development. The ridge tops provide relatively flat or gently sloping terrain that can accommodate large arrays without extensive grading, while their elevation places them above much of the valley fog and atmospheric haze that can reduce solar irradiance.

Areas along the higher elevations of the Appalachian Plateau, especially those with south-facing slopes of moderate grade, present excellent opportunities for solar installations. These locations benefit from reduced shading from adjacent terrain features and maintain better exposure to direct sunlight throughout the day. The plateau areas extending eastward and southward from Wheeling into the West Virginia countryside offer particularly suitable conditions, as they combine favorable topography with lower population density.

The agricultural areas on the gentler slopes and broader valley floors away from the steepest terrain also present viable options for solar development. These locations, while not offering the optimal elevation advantages of the ridge tops, provide easier access for construction and maintenance activities. The farmland areas to the west across the Ohio River in eastern Ohio feature more moderate topography with longer, gentler slopes that could accommodate extensive solar arrays with minimal site preparation.

Conversely, the steep hillsides immediately adjacent to the Ohio River and the narrow valley floors would be less suitable for large-scale solar installations due to shading concerns, challenging construction conditions, and competing land uses. The most constrained areas include the deeply incised stream valleys and the steepest north-facing slopes, which would receive limited direct sunlight and present significant engineering challenges for solar array installation and maintenance.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
