Plainfield, Indiana is a moderately favorable location for solar energy generation, though it experiences significant seasonal variations typical of the Northern Temperate Zone climate. The area receives its peak solar production during summer months, generating 6.20 kWh per day per kW of installed solar capacity.

Seasonal Solar Performance

Solar energy production in Plainfield varies considerably throughout the year. Spring offers strong performance at 5.47 kWh per day per kW, making it the second-best season for solar generation. Autumn production drops to 3.68 kWh per day per kW, while winter shows the lowest output at just 2.16 kWh per day per kW of installed capacity. The ideal months for solar generation at this location are the summer period, followed by spring. Winter months present the greatest challenge for solar energy production, generating only about one-third of the summer output.

Optimal Panel Installation

For maximum year-round energy production in Plainfield, solar panels should be installed at a fixed tilt angle of 34 degrees facing south. This angle has been calculated to optimize total annual solar output by accounting for the sun's varying position throughout the year and weighting for daily solar potential.

Environmental and Weather Challenges

Several local factors can significantly impact solar energy production in Plainfield, Indiana:

• Snow accumulation during winter months can completely block solar panels
• Ice formation can reduce panel efficiency and create safety hazards
• Frequent cloud cover throughout the year reduces solar irradiance
• High humidity levels can create moisture-related efficiency losses
• Severe thunderstorms with hail pose physical damage risks to panels

Preventative Measures for Better Performance

Several installation strategies can help maximize solar energy production despite these challenges: Install panels with adequate tilt angles to promote natural snow shedding and water drainage. The recommended 34-degree angle helps with this process. Consider anti-reflective coatings that also provide some protection against moisture accumulation. Use high-quality mounting systems designed to withstand severe weather conditions, including strong winds and hail. Ensure proper grounding and electrical protection systems are in place for lightning protection during thunderstorms. Plan for regular maintenance access to safely remove snow and ice when necessary. Some homeowners install heating elements along panel edges to prevent ice dam formation, though this reduces overall system efficiency. Choose solar panels with strong warranty coverage against weather damage and select inverters rated for the local temperature and humidity ranges. Proper ventilation behind panels helps reduce heat buildup during humid summer months. Consider micro-inverters or power optimizers that can minimize the impact when individual panels are partially shaded by snow, ice, or debris, allowing the rest of the system to continue operating at full capacity.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

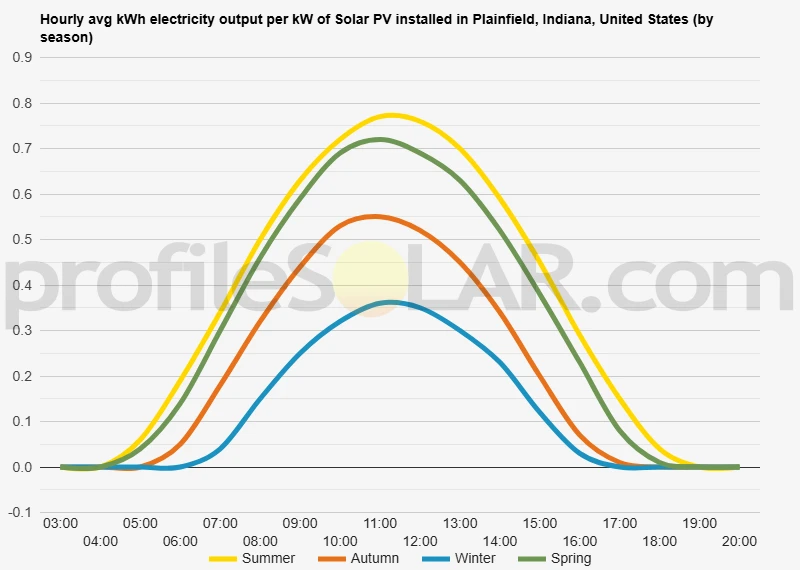

Solar output per kW of installed solar PV by season in Plainfield, Indiana

Seasonal solar PV output for Latitude: 39.7042, Longitude: -86.3994 (Plainfield, Indiana, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 34° South in Plainfield, Indiana, United States

To maximize your solar PV system's energy output in Plainfield, Indiana, United States (Lat/Long 39.7042, -86.3994) throughout the year, you should tilt your panels at an angle of 34° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Plainfield, Indiana, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Plainfield, Indiana, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 34° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
23° South in Summer	44° South in Autumn	54° South in Winter	32° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Plainfield, Indiana, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Plainfield, Indiana, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Plainfield, Indiana, United States

Topography Around Plainfield, Indiana

The topography surrounding Plainfield, Indiana is characterized by gently rolling terrain typical of the central Indiana landscape. This area sits within the Till Plains region, which was shaped by glacial activity thousands of years ago. The terrain features subtle elevation changes with broad, sweeping hills and shallow valleys that create a relatively uniform landscape across the region.

The elevation around Plainfield generally ranges from approximately 700 to 900 feet above sea level, with most of the immediate area falling between 750 and 850 feet. The land slopes very gradually, with most inclines being quite modest and rarely exceeding a few degrees. This gentle topography is interrupted occasionally by small creeks and drainage ways that have carved shallow channels through the landscape over time.

The soil composition in this region consists primarily of fertile glacial till, which has made the area highly suitable for agriculture. Much of the surrounding countryside features large, open agricultural fields with minimal tree cover, creating expansive areas of relatively flat to gently sloping land. These agricultural areas are interspersed with small woodlots and residential developments, but the overall character remains one of open, accessible terrain.

Optimal Areas for Large-Scale Solar Development

The agricultural lands extending south and west of Plainfield present the most promising opportunities for large-scale solar photovoltaic installations. These areas offer several key advantages, including extensive flat to gently sloping terrain, minimal shading from trees or structures, and existing agricultural zoning that may be more amenable to solar development projects.

The areas along the western edge of Hendricks County, particularly the farmland between Plainfield and the Putnam County line, provide ideal conditions for solar arrays. This region features large, contiguous parcels of agricultural land with gentle south-facing slopes that would optimize solar panel orientation. The terrain in these areas is sufficiently flat to minimize grading requirements while still providing adequate drainage.

North of Plainfield, the landscape becomes slightly more developed with residential areas and commercial zones, making large-scale solar development more challenging. However, some agricultural areas remain that could potentially accommodate smaller utility-scale installations. The key considerations in these northern areas include maintaining appropriate setbacks from residential properties and working within existing zoning frameworks.

The eastern portions of the region, while topographically suitable, tend to have more fragmented land ownership patterns due to suburban development pressures from the Indianapolis metropolitan area. This fragmentation makes assembling large contiguous sites more difficult, though smaller distributed installations remain viable.

Areas with existing agricultural drainage tiles and established field boundaries would require minimal site preparation, as the land is already cleared and relatively level. The gentle slopes present throughout the region provide natural drainage while avoiding the complications that steeper terrain might introduce for solar panel mounting and maintenance access.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
